LM3222 Digital Output Module 8 Relay
DO Module LM3222 (8CH DO)
• Input channel: 8
• Rated Voltage: 24V DC or 220V AC
Output Features
| Output Channel | 8 |
| Output type | Relay |
| Output voltage | 24V DC or 24 V AC ～230V AC |
| Allowed range | 5V DC～30V DC or 5V AC～250V AC |
| Common end output current total | <10A |
| Output switch capacity | 2A, resistance load |
| Minimum load | 10mA (contact voltage 5VAC or 5VDC) |
| Over current protection | N/A |
| Contact impedance | <0.2Ω |
| Isolation group | 2 groups |
| Isolation voltage between coil and contact | 3000VAC, 1 minute, leakage current 1mA |
| Isolation resistance (minimum) | 100MΩ between contacts or between coil and contact under 500VDC |
| Contact switch delay time | <10ms |
| Contact switch frequency (maximum) | 1Hz |
| Relay mechanical life | No load: over 10,000,000 times; Rated Resistive load 2A: over 100,000 times |
| Dimensions | 50mm(L)×90mm(W)×70mm (H) |
| Weight | <200g |
Input Features
| Power Consumption | +24VDC (Provided by expansion bus) | 40mA |
| +24VDC (External supply) | Depend on actual load | |
| +5VDC (Provided by expansion bus) | 60mA |

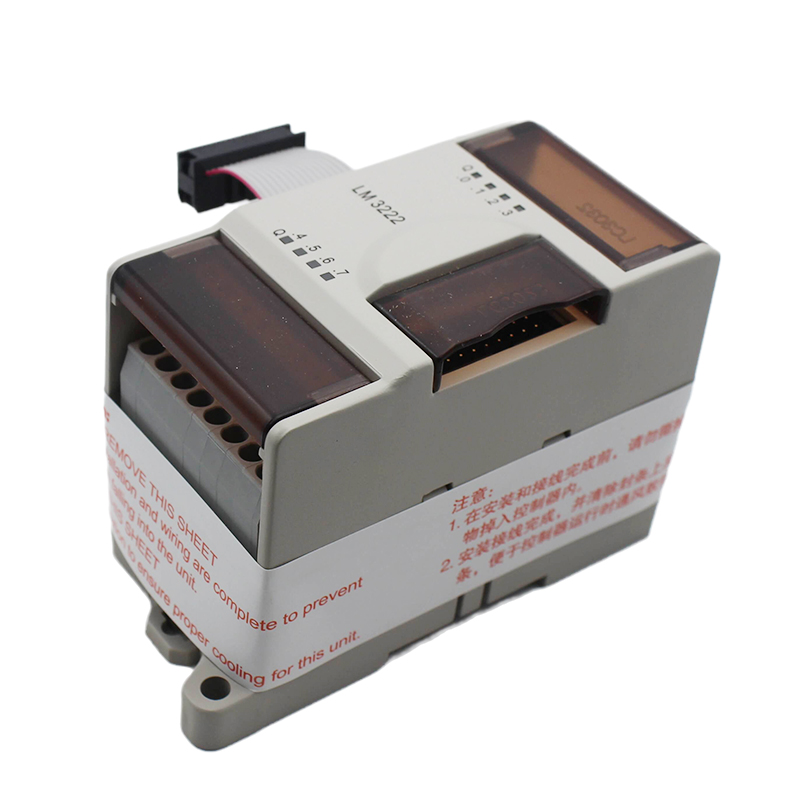

The pictures of the LM3222 Digital Output Module 8 Relay
