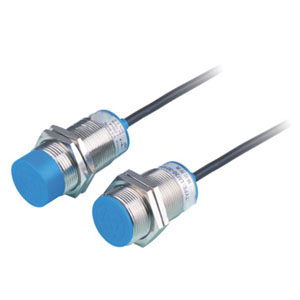

LM30 M30 detection distance 10-15mm Inductive proximity switch sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . YUMO Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , YUMO will be your best choice .
  • LM30

  • YUMO

  • YM00000004

  • Type: Inductive proximity switch
  • Size : 30mm OD
  • Sensing range : 10-15mm
  • Output type : NPN , PNP or 2 wires system
  • Operation type: NO, NC or NO+NC
  • Housing material : Metal
  • Protection grade : IP65, IP67
  • Installation type: Non-flush ; Flush
  • Customized service : Available
  • Voltage: 6-36VDC; 90-250VAC
LM30 series cylinderical inductive proximity switch


Outside diameter 30mm cylinder inductive proximity switch, sensing range  10-15mm . China YUMO offer customized design!


Installation  Flush  Non-flush

DC 3 wires  NPN NO LM30-3010NA LM30-3015NA

NC LM30-3010NB LM30-3015NB

NO+NC LM30-3010NC LM30-3015NC

PNP NO LM30-3010PA LM30-3015PA

NC LM30-3010PB LM30-3015PB

NO+NC LM30-3010PC LM30-3015PC

2 Wires NO LM30-3010LA LM30-3015LA

NC LM30-3010LB LM30-3015LB

AC SRC Control label  silicon NO LM30-2010A LM30-2015A

NC LM30-2010B LM30-2015B

Relay output  NO+NC LM30-2010JC LM30-2015JC

 Detecting rang  10mm  15mm

Setting distance   0-8mm  0-12mm

LM24 Sensor Characteristics

Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC/AC DC<3V; AC<10V
Consumption current DC<15mA; AC<10mA
Standard detected object 30×30×1(A3 Iron)
Repeated precision 0.05
Response Frequency 200Hz/25Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Alternative model  E2E-X18M□

LM30
