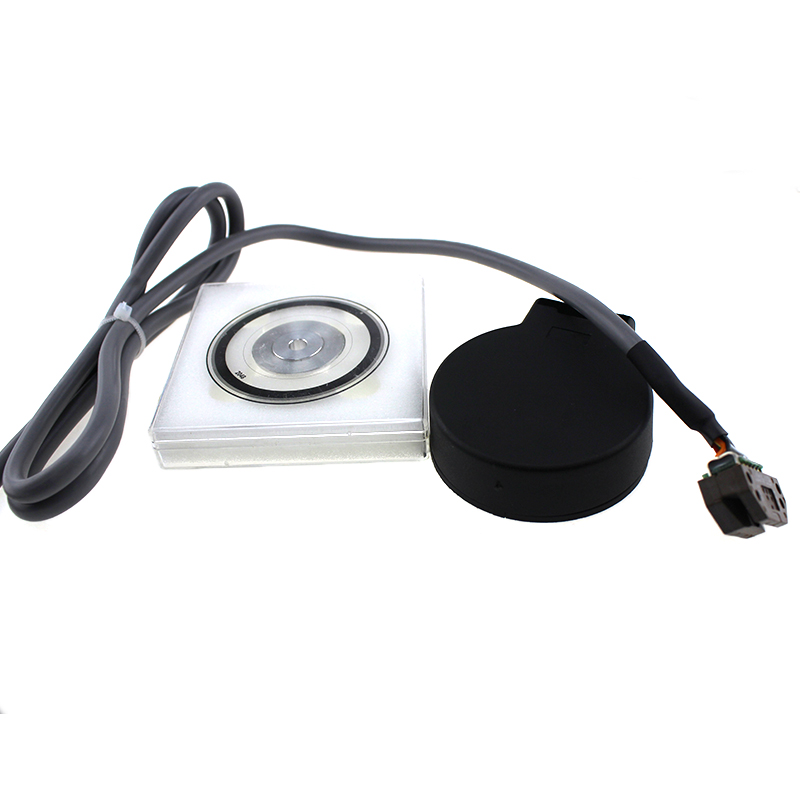

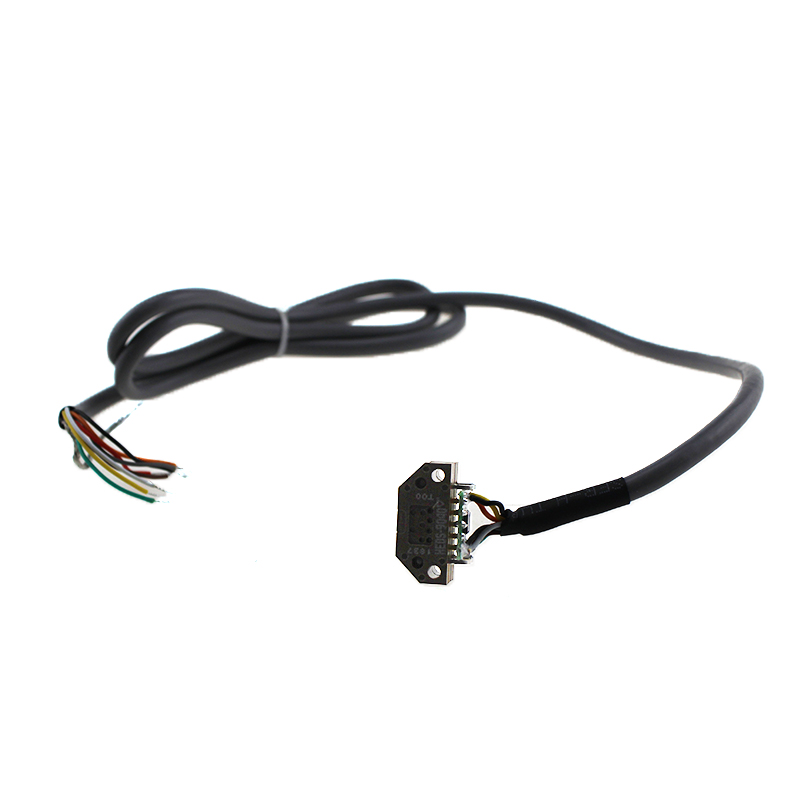

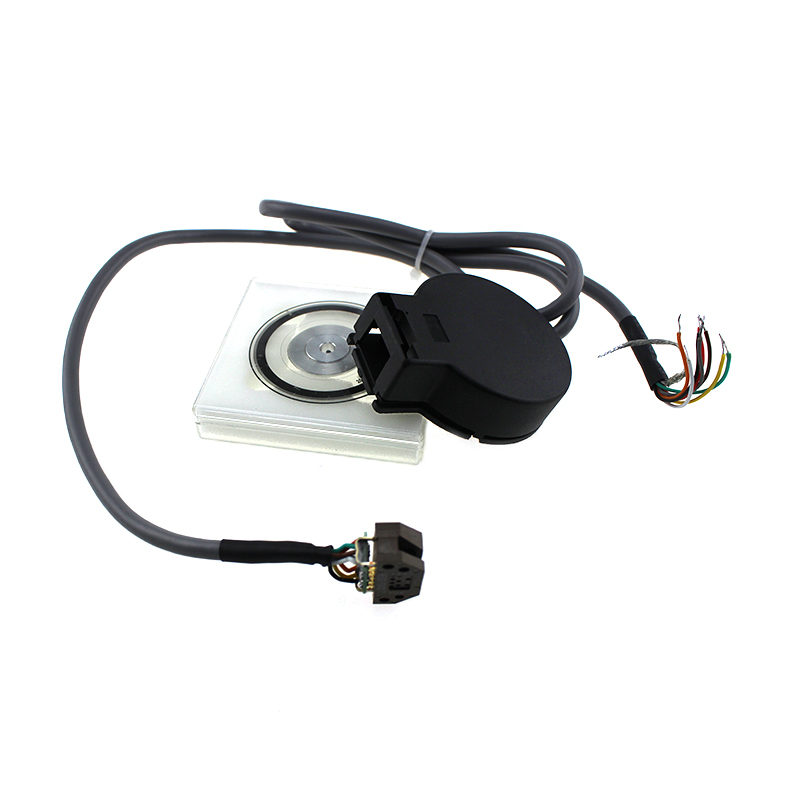

HKT5606 2 Channel Kit Optical Encoder Hollow Shaft Incremental motor Servomotor Encoder

◆ Features ● Miniature size, easy assembling ● 2 quadrature output channel (A&B)+index signal ● Resolution up to 2048 cpr
  • HKT5606
  • YUMO
  • YM00000020
  • HKT56 motor encoder.jpg
  • 10
  • China
  • 5VDC
  • CE RoHS
Availability:


HKT56Note

Please contact sales representative to confirm the correctness and availability of the part number

Line Drive is only available with 5VDC option


Feature

Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.


Technical Specifications



Electrical Specification
Output circuit Voltage output
Power Vcc 5VDC
Current Consumption <=35mA
High-level output Min Vcc*85%
Low-level output Max 0.3V
Rise Time Tr Max 200ns
Fall Time Tr Max 50ns
Max Responding Frequency 100kHz
Mechanical Specification
Max speed(r/min) Starting Torque Max. Shaft Loading Shocking Vibration
12000 <0.05Nm Radial;25N, Axial:15N 50G/11ms 10G 10-2000Hz
Rotor Intertia Working Temperature Storage Temperature Protection Grade Weight
4*10(-8) kgm² -40~85℃ -40~85℃ IP50

100g


Connection Table

Line

Driver Output

0V Vcc A+ A- B- B+ Z+ Z-
Code 1 2 3 4 5 6 7 8
Wire Color BK RD GN BN GY WH YE OG


Voltage 0V Z A Vcc B
Code 1 2 3 4 5
Cable Color BK YE GN RD WH



Dimension
