XYK-117 electronic water pressure control switch
Product Description
Feature & Benfits
Automatic Reset
Single-Pole;single throw switch
normally open or normally close
Factory calibrated set point from 5 PSI to 650PSI High cycle life-Proven relability
Custom engineered solutions
Applications: Comperssors & Pumps,Hydraulics
Pneumatics, Engine Controls
Construction Equipment
Agricultural Equipment
Specifications
| Model | XYK-117 |
| Set Point | 5-650psi(Factory Calibrated) |
| Electric Rating | AC120/240V,375VA |
| 120 VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA |
| Proof Pressure | 700psi,others are optional |
| Temperature | -20℃-90℃ |
| Contact Material | Ag alloy |
| Connection | See the Order Ref |
| Contact Type | SPST NO or NC |
| Terminal | 6.3 mm Blade |
Outline Drawings (Dimension in mm)

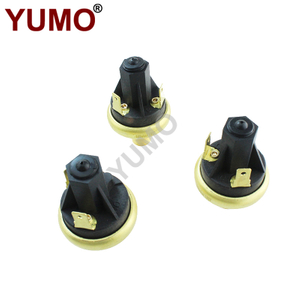

Product Pictures
