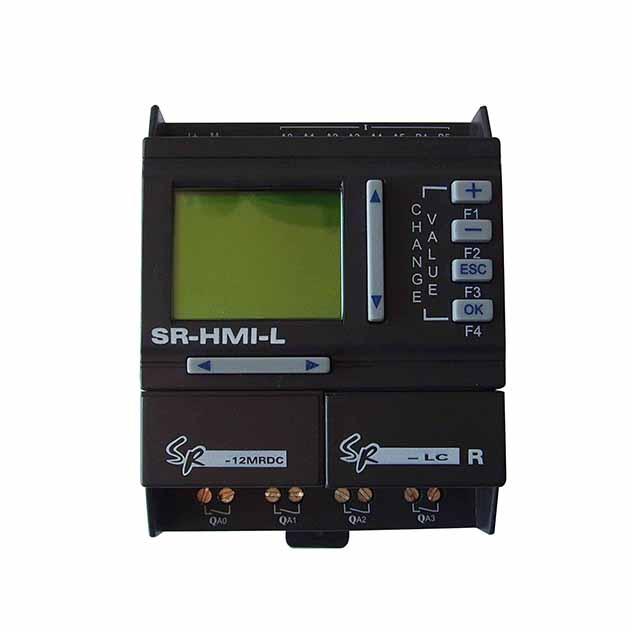

You are here: Home » Programmable Logic Controller (PLC) » SR Programmable Logic Controller » SR-12MRDC DC12/24V 8 points DC input relay output controller PLC

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Products Center

Contact Us

Tel: +86-577-62791815
Fax: +86-577-62791825
Skype: benjaminying
E-mail:sale@yingselectric.com

Add: ROOM 302,NO.256 LIUYANG ROAD, ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA

Related Product News

content is empty!



Inquire Add to Basket

Performance & Features：

■ This intelligent controller, adopting function block programming, having large programming capacity, being freely programmed according to different users and different fields, can run at your desired time table and the RTC accuracy can reach second and makes your time control more accurate. And up to 128 time sessions can

be set , especially suitable for time-control system."

■ Safety password function makes your program absolutely safe. Before writing program, password can be set. And only after entering the correct password, can the program be modified.

■ It is equipped with a removable, convenient and programmable LCD, providing 64 friendly human-machine interfaces, 32 virtual keys, having the function to display the alarming message and parameter and to modify the parameter. When needed, it can be installed. And when not needed, it can be removed and replaced with an ordinary front panel.Thus the cost will be greatly reduced.

■ The input can receive not only the digital input but also the analogue input to perform the control and . transmission of the temperature, moisture, pressure, flow level unit and so on.

Technical Index：

Power supply
Power	DC12V-24V
Input parameters:
Input No	8(A0-A5,B4-B5)
Digital input	8(A0-A5,B4-B5)
Analogue input	6(A0-A5)
Power range	DC0-24V(digital)/DC0-10V(analogue)
Input signal0	DC0-5V
Input signal1	DC10-24V
Output parameters:
Output No	4(QA0-QA3)
Output type	Relay output
Output voltage	DC0-24V
Output current	Resistive load 10A/Inductive load 2A
Environment temperature:
Running temperature	0℃～55℃
Storage/shipment	-40℃～70℃
Switch frequency:
Mechanism	10Hz
Resistor/light load	2Hz
Sensitive load	0.5Hz
Other parameters:
Clock buffer memory at 25℃	80h
RTC accuracy	Max±5s/day
Protection	IP20
Emission on line	EN55011(B)
The main frequency range	47-63Hz
Function block No	128bit
Program storage capacity	64K
Isolation intensity	IEC1131

Installation Dimensions & Wiring Diagram：

SR intelligent controller is a new type of programmable controller with FBD (Function Block Diagram) programming, which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction).

In the design concept of SR series products, SR-WRT is used as a programming panel to program SR series hosts. On the other hand, SR-HMI is used as a powerful simple Human-Machine Interface to display the status of SR series, and SR-HMI itself is programmable. If you want to program SR by PC, free programming software “Super CAD” with powerful functions is provided.

SR can be used to combine voice modules of SR-VPA, SR-VPD and remote control modules of SR-RCA, SR-RCD; it can perform telephone remote controlling, wireless controlling, voice prompting and auto-dialing functions. Being used with expansion module (SR-20ERA, SR-20ERD, SR-20ETD, SR-20EGD), the input/output points can be expanded to satisfy your requirements. Mostly one SR machine can be connected with five extension modules at most, (it is better you connect with the 3 extension modules) and there are 122 I/O points (74 inputs and 48 outputs) at most.

SR intelligent controller is widely used in automatic control field of industry, agriculture, and automatic house control, which really comes into every part of people's daily life.

Item	Code	Description
Item	Code	Description
1	AF-10MR-A(with LCD)	85V-240VAC, 6 points AC input 4 points relay output
2	AF-10MR-A(without LCD)	85V-240VAC, 6 points AC input 4 points relay output
3	AF-10MR-D(with LCD)	DC12/24V, 6points DC input 4 points (with analog input) relay output
4	AF-10MR-D(without LCD)	DC12/24V, 6points DC input 4 points (with analog input) relay output
5	AF-10MR-E(with LCD)	DC12/24V, 6 points DC input 4 points relay output
6	AF-10MR-E(without LCD)	DC12/24V, 6 points DC input 4 points relay output
7	AF-10MT-D(with LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
8	AF-10MT-D(without LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
9	AF-10MT-GD(with LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
10	AF-10MT-GD(without LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
11	AF-10MT-E(with LCD)	DC12/24V,6 points DC input 4 points electronic transistor output
12	AF-10MT-E(without LCD)	DC12/24V,6 points DC input 4 points electronic transistor output
13	AF-20MR-A(with LCD)	85V-240VAC ,12 points AC input 8 points relay output
14	AF-20MR-A(without LCD)	85V-240VAC ,12 points AC input 8 points relay output
15	AF-20MR-D(with LCD)	DC12/24V,12 points DC input 8 points (with analog input) relay output
16	AF-20MR-D(without LCD)	DC12/24V,12 points DC input 8 points (with analog input) relay output
17	AF-20MR-E(with LCD)	DC12/24V ,12 points DC input 8 points relay output (without analog input)
18	AF-20MR-E(without LCD)	DC12/24V ,12 points DC input 8 points relay output (without analog input)
19	AF-20MT-E(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
20	AF-20MT-E(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
21	AF-20MT-D(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
22	AF-20MT-D(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
23	AF-20MT-GD(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
24	AF-20MT-GD(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
25	AF-C232	Cable for FAB and PC Modem for programming
26	AF-C485	Interface between 485bus and FAB for network monitor
27	AF-CMP	The cable connect to the telephone module port "TO PC'
28	AF-COPY	Copy module
29	AF-D232	the cable connecting FAB and PC (frontispiece plug type)
30	AF-MUL-D	Voice module to realize voice function(DC POWER)
31	AF-DUSB	the interface between FAB and PC USB port (frontispiece plug type)
32	AF-LCD	Removable LCD clip in screen for easy programming
33	AF-M232	Interface between FAB and MODEM for remote control and programming
34	AF-MUL	Voice module to realize voice function(AC POWER)
35	AF-P485	Interface between 485bus and PC for network function
36	AF-S485	Interface is the connector between RS232 and RS485 (DIN installation).
37	AF(SR)-USB	USB/RS232 convertor (DIN installation)
38	SP-05AL	Input: 110/220VAC Output: Voltage :5VDC Current :14A Din rail type
39	SP-05AS	Input: 110/220VAC Output: Voltage :5VDC Current :7A Din rail type
40	SP-12AL	Input: 110/220VAC Output: Voltage :12VDC Current :6A Din rail type
41	SP-12AS	Input: 110/220VAC Output: Voltage :12VDC Current :3A Din rail type
42	SP-24AL	Input: 110/220VAC Output: Voltage :24VDC Current :3A Din rail type
43	SP-24AS	Input: 110/220VAC Output: Voltage :24VDC Current :1.5A Din rail type
44	SR-12MRAC	100-240VAC 8 Points AC input, 4 points relay output
45	SR-12MRDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points relay output
46	SR-12MTDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(NPN)
47	SR-12MGDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(PNP)
48	SR-20ERA	100-240VAC 12 AC input, 8 points relay output, 20 points extended module
49	SR-20ERD	DC12/24V 12 points DC input , 8 points relay output, 20 points extended module
50	SR-20ETD	DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (NPN)
51	SR-20EGD	DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (PNP)
52	SR-22MRAC	100-240VAC 14 Points AC input, 8points relay output
53	SR-22MRDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points relay output
54	SR-22MTDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(NPN)
55	SR-22MGDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(PNP)
56	SR-AUD	The recording microphone and the wires between the sound card and the SR-VPA/SR-VPD
57	SR-CP	Programmable cable can edit,analog, monitor from PC to Super Relay
58	SR-EANT	Long connecting antenna of SR-RCA and SR-RCD
59	SR-ECBA	AC type, to remotely connect the machine and the extended module
60	SR-ECBD	DC type, to remotely connect the machine and the extended module
61	SR-EHC	Connection set of SR-HMI, remotely connect SR machine and SR-HMI 1.5m cable
62	SR-HMI-B	monitor operator panel
63	SR-LED	simple LED panel
64	SR-RCA	100-240VAC remote control receiver module
65	SR-RCD	DC12/24V remote control receiver module
66	SR-TC	DC3V remote control emitter
67	SR-USB	USB/RS232 convertor (DIN installation)
68	SR-DUSB	the interface between SR and PC USB port (frontispiece plug type)
69	SR-VPA	100-240VAC phone voice module
70	SR-VPD	DC12/24V phone voice module
71	SR-WRT	Programming panel
72	SR-TP	for connecting SR PLC with text panel SH-300
73	SR-MC	MODBUS module
74	SR-MCA	MODBUS module
75	SR-MCD	MODBUS module
76	SH-300	4.3"STN - LCD Display screen DC12/24VA
77	AR1520	convert RS-232 signals into isolated RS-422 or RS-485
78	AR1520U	Convert USB to RS-232/422/485 terminal
79	AR1521	convert RS-232 signals into isolated RS-422 or RS-485
80	AR1521U	Convert USB to RS-232/422/485 terminal
81	C2400	Timer,counter,frequency meter,tachometer
82	software	PLC software CD

plc controller programmable logic controller plc SR-12MRDC PLC with LCD
