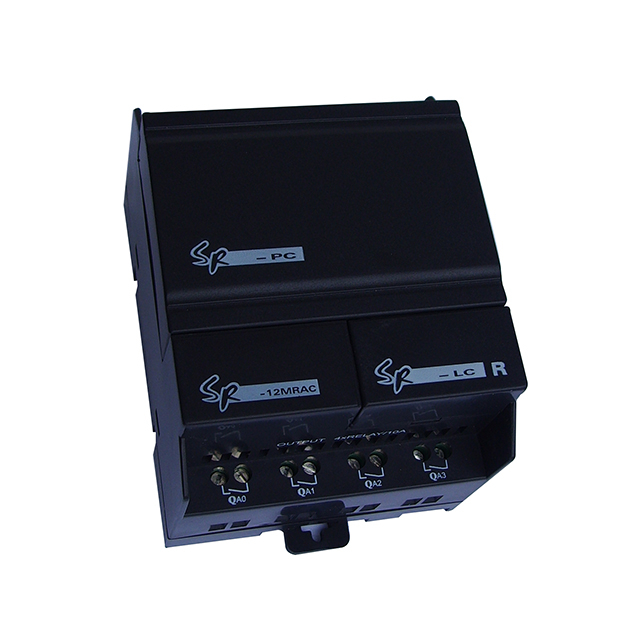

SR-12MRAC Power supply AC110V-240V 8point AC input 4 point relay output PLC

SR-12MRAC Power supply AC110V-240V 8point AC input 4 point relay output PLC
  • SR-12MRAC

  • YUMO

  • YM00000016


programmable logic controller


Performance & Features:
■  This intelligent controller, adopting function block programming, having large programming capacity, being freely  programmed according to different users and different fields, can run at your desired time table and the RTC accuracy can reach second and makes your time control more accurate. And up to 128 time sessions can
 be set , especially suitable for time-control system."
■  Safety password function makes your program absolutely safe. Before writing program, password can be set. And only after entering the correct password, can the program be modified.
■  It is equipped with a removable, convenient and programmable LCD, providing 64 friendly human-machine interfaces, 32 virtual keys, having the function to display the alarming message and parameter and to modify the parameter. When needed, it can be installed. And when not needed, it can be removed and replaced with an ordinary front panel.Thus the cost will be greatly reduced.
■  The input can receive not only the digital input but also the analogue input to perform the control and . transmission of the temperature, moisture, pressure, flow level unit and so on.
■  It has well-featured and compact design with 8 point input and 4 point output. Equipped with expansion module, it can be expanded into 82 I/O better ,and to MAX 122I/O.It can be connected with telephone voice module and remote control module to perform the notification and alarming function. And the connection between the host and the module can be Bridge SR-CBA or flexible connection SR-ECBA.
■  The machine has short-circuit protection (internal) and relay output protection (external) function, which makes your usage safer and easier.


Technical Index:

Power supply
Power AC110V-240V
Input parameters:
Input No 8(A0-A5,B4-B5)
Digital input 8(A0-A5,B4-B5)
Analogue input None
Power range AC0-240V
Input signal0 AC0-40V
Input signal1 AC85-240V
Output parameters:
Output No 4(QA0-QA3)
Output type Relay output
Output voltage AC0-240V/DC0-24V
Output current Resistive load 10A/Inductive load 2A
Environment temperature:
Running temperature 0℃~55℃
Storage/shipment -40℃~70℃
Switch frequency:
Mechanism 10Hz
Resistor/light load 2Hz
Sensitive load 0.5Hz
Other parameters:
Clock buffer memory at 25℃ 80h
RTC accuracy Max±5s/day
Protection IP20
Emission on line EN55011(B)
The main frequency range 47-63Hz
Function block No 128bit
Program storage capacity 64K
Isolation intensity IEC1131

Installation Dimensions & Wiring Diagram:

plc controller

SR intelligent controller is a new type of programmable controller with FBD (Function Block Diagram) programming, which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction).
In the design concept of SR series products, SR-WRT is used as a programming panel to program SR series hosts. On the other hand, SR-HMI is used as a powerful simple Human-Machine Interface to display the status of SR series, and SR-HMI itself is programmable. If you want to program SR by PC, free programming software “Super CAD” with powerful functions is provided.
SR can be used to combine voice modules of SR-VPA, SR-VPD and remote control modules of SR-RCA, SR-RCD; it can perform telephone remote controlling, wireless controlling, voice prompting and auto-dialing functions. Being used with expansion module (SR-20ERA, SR-20ERD, SR-20ETD, SR-20EGD), the input/output points can be expanded to satisfy your requirements. Mostly one SR machine can be connected with five extension modules at most, (it is better you connect with the 3 extension modules) and there are 122 I/O points (74 inputs and 48 outputs) at most.
SR intelligent controller is widely used in automatic control field of industry, agriculture, and automatic house control, which really comes into every part of people's daily life.

Item Code Description
1 AF-10MR-A(with LCD) 85V-240VAC, 6 points AC input 4 points relay output
2 AF-10MR-A(without LCD) 85V-240VAC, 6 points AC input 4 points relay output
3 AF-10MR-D(with LCD) DC12/24V, 6points DC input 4 points (with analog input) relay output
4 AF-10MR-D(without LCD) DC12/24V, 6points DC input 4 points (with analog input) relay output
5 AF-10MR-E(with LCD) DC12/24V, 6 points DC input 4 points relay output
6 AF-10MR-E(without LCD) DC12/24V, 6 points DC input 4 points relay output
7 AF-10MT-D(with LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
8 AF-10MT-D(without LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
9 AF-10MT-GD(with LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
10 AF-10MT-GD(without LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
11 AF-10MT-E(with LCD) DC12/24V,6 points DC input 4 points electronic transistor output
12 AF-10MT-E(without LCD) DC12/24V,6 points DC input 4 points electronic transistor output
13 AF-20MR-A(with LCD) 85V-240VAC ,12 points AC input 8 points relay output
14 AF-20MR-A(without LCD) 85V-240VAC ,12 points AC input 8 points relay output
15 AF-20MR-D(with LCD) DC12/24V,12 points DC input 8 points (with analog input) relay output
16 AF-20MR-D(without LCD) DC12/24V,12 points DC input 8 points (with analog input) relay output
17 AF-20MR-E(with LCD) DC12/24V ,12 points DC input 8 points relay output (without analog input)
18 AF-20MR-E(without LCD) DC12/24V ,12 points DC input 8 points relay output (without analog input)
19 AF-20MT-E(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
20 AF-20MT-E(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
21 AF-20MT-D(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
22 AF-20MT-D(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
23 AF-20MT-GD(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
24 AF-20MT-GD(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
25 AF-C232    Cable for FAB and PC Modem for programming
26 AF-C485     Interface between 485bus and FAB for network monitor
27 AF-CMP   The cable connect to the telephone module port  "TO PC'
28 AF-COPY  Copy module
29 AF-D232  the cable connecting FAB and PC (frontispiece plug type)
30 AF-MUL-D Voice module to realize voice function(DC POWER)
31 AF-DUSB   the interface between FAB and PC USB port (frontispiece plug type)
32 AF-LCD  Removable LCD clip in screen for easy programming
33 AF-M232     Interface between FAB and MODEM for remote control and programming
34 AF-MUL Voice module to realize voice function(AC POWER)
35 AF-P485    Interface between 485bus and PC for network function
36 AF-S485 Interface is the connector between RS232 and RS485 (DIN installation).
37 AF(SR)-USB     USB/RS232 convertor (DIN installation)
38 SP-05AL Input: 110/220VAC Output: Voltage :5VDC   Current :14A Din rail type
39 SP-05AS Input: 110/220VAC Output: Voltage :5VDC   Current :7A Din rail type
40 SP-12AL Input: 110/220VAC Output: Voltage :12VDC   Current :6A Din rail type
41 SP-12AS Input: 110/220VAC Output: Voltage :12VDC   Current :3A Din rail type
42 SP-24AL Input: 110/220VAC Output: Voltage :24VDC  Current :3A Din rail type
43 SP-24AS Input: 110/220VAC Output: Voltage :24VDC   Current :1.5A Din rail type
44 SR-12MRAC 100-240VAC 8 Points AC input, 4 points relay output
45 SR-12MRDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points relay output
46 SR-12MTDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(NPN)
47 SR-12MGDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(PNP)
48 SR-20ERA 100-240VAC 12  AC input, 8 points relay output, 20 points extended module
49 SR-20ERD DC12/24V 12 points DC input , 8 points relay output, 20 points extended module
50 SR-20ETD DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (NPN)
51 SR-20EGD DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (PNP)
52 SR-22MRAC 100-240VAC 14 Points AC input, 8points relay output
53 SR-22MRDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points relay output
54 SR-22MTDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(NPN)
55 SR-22MGDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(PNP)
56 SR-AUD The recording microphone and the wires between the sound card and the SR-VPA/SR-VPD
57 SR-CP Programmable cable can edit,analog, monitor from PC to Super Relay
58 SR-EANT Long connecting antenna of SR-RCA and SR-RCD
59 SR-ECBA AC type, to remotely connect the machine and the extended module
60 SR-ECBD DC type, to remotely connect the machine and the extended module
61 SR-EHC Connection set of SR-HMI, remotely connect SR machine
and SR-HMI 1.5m cable
62 SR-HMI-B monitor operator panel
63 SR-LED simple LED panel
64 SR-RCA 100-240VAC remote control receiver module
65 SR-RCD DC12/24V remote control receiver module
66 SR-TC DC3V remote control emitter
67 SR-USB USB/RS232 convertor (DIN installation)
68 SR-DUSB   the interface between SR and PC USB port (frontispiece plug type)
69 SR-VPA 100-240VAC phone voice module
70 SR-VPD DC12/24V  phone voice module
71 SR-WRT Programming panel
72 SR-TP for connecting SR PLC with text panel SH-300
73 SR-MC MODBUS module
74 SR-MCA MODBUS module
75 SR-MCD MODBUS module
76 SH-300 4.3"STN - LCD Display screen DC12/24VA
77 AR1520  convert RS-232 signals into isolated RS-422 or RS-485
78 AR1520U    Convert USB to RS-232/422/485 terminal
79 AR1521    convert RS-232 signals into isolated RS-422 or RS-485
80 AR1521U     Convert USB to RS-232/422/485 terminal
81 C2400                 Timer,counter,frequency meter,tachometer
82 software PLC software CD
