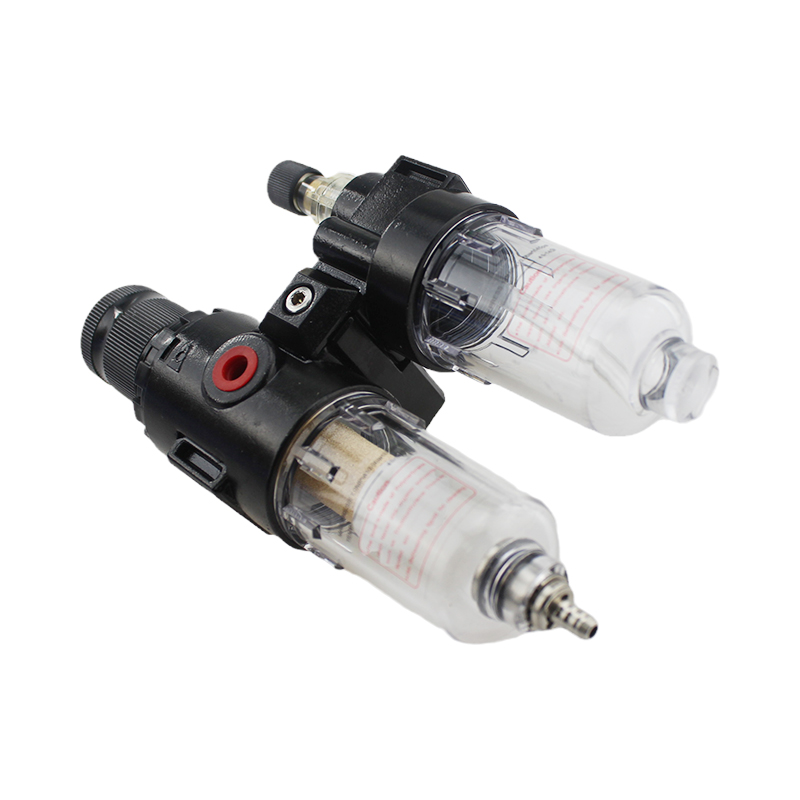

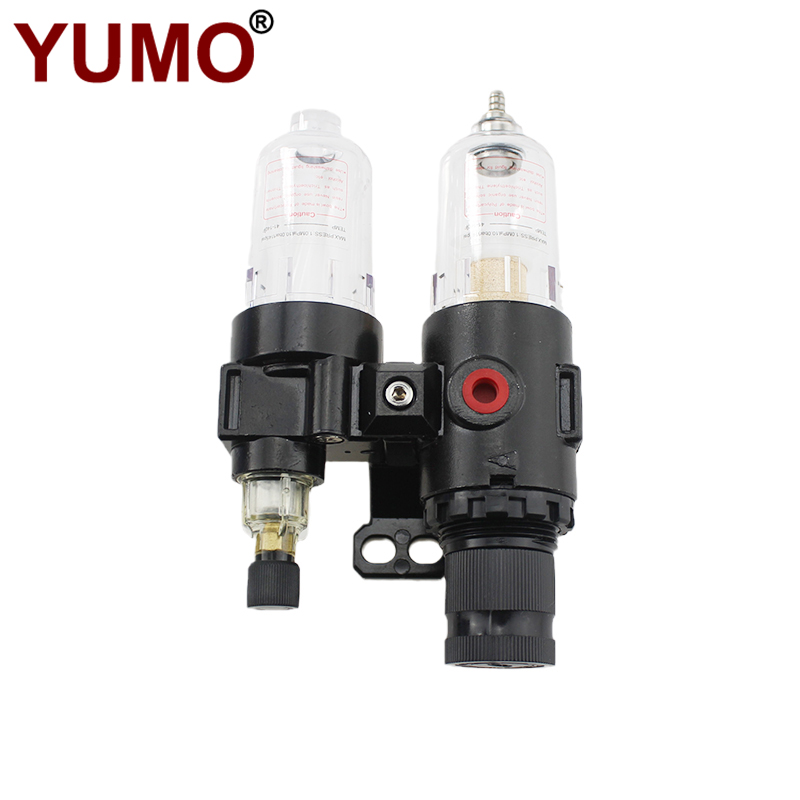

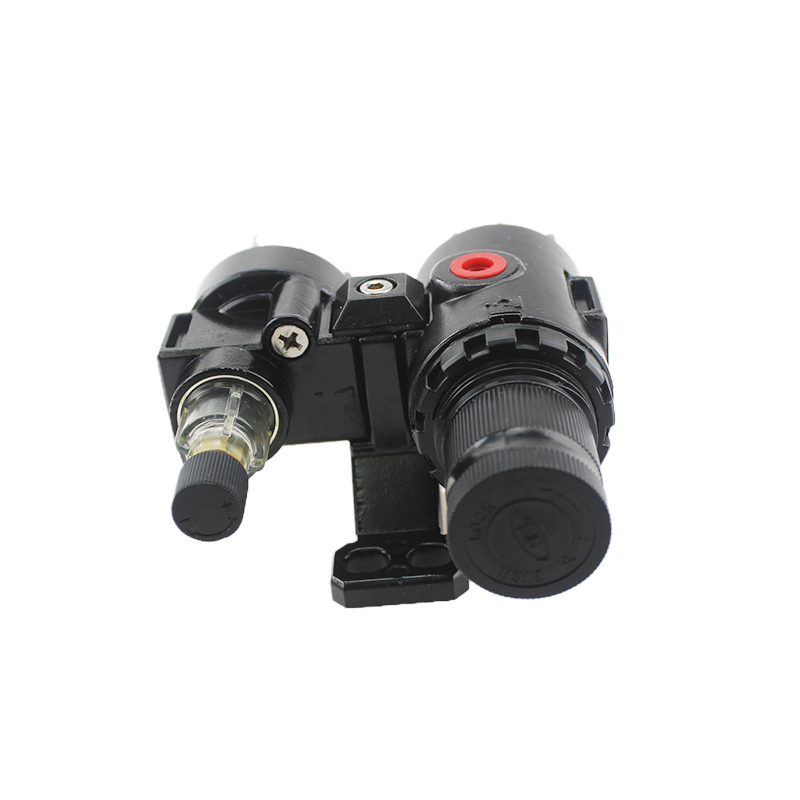

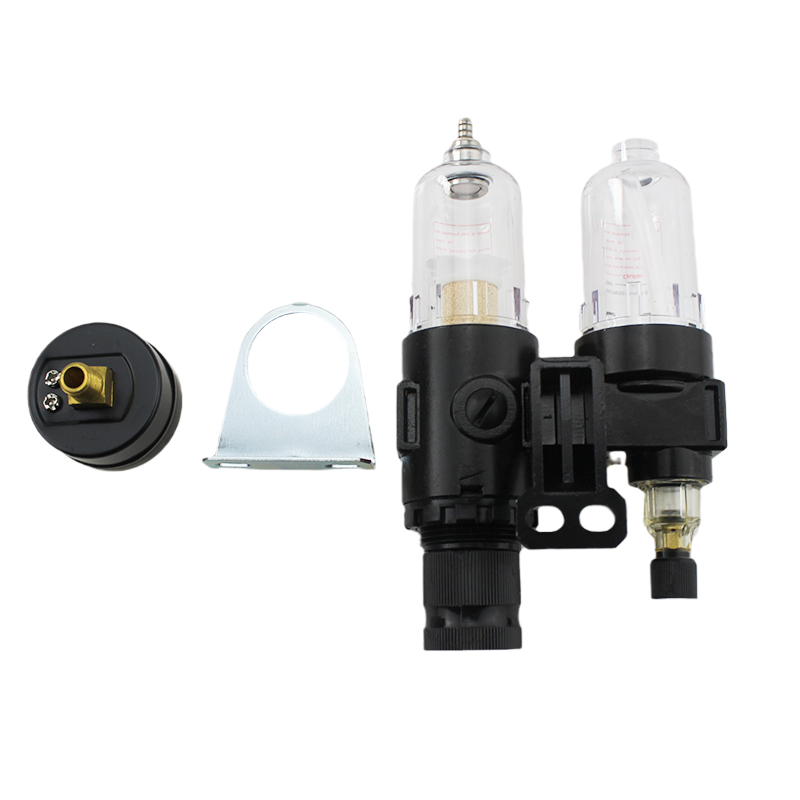

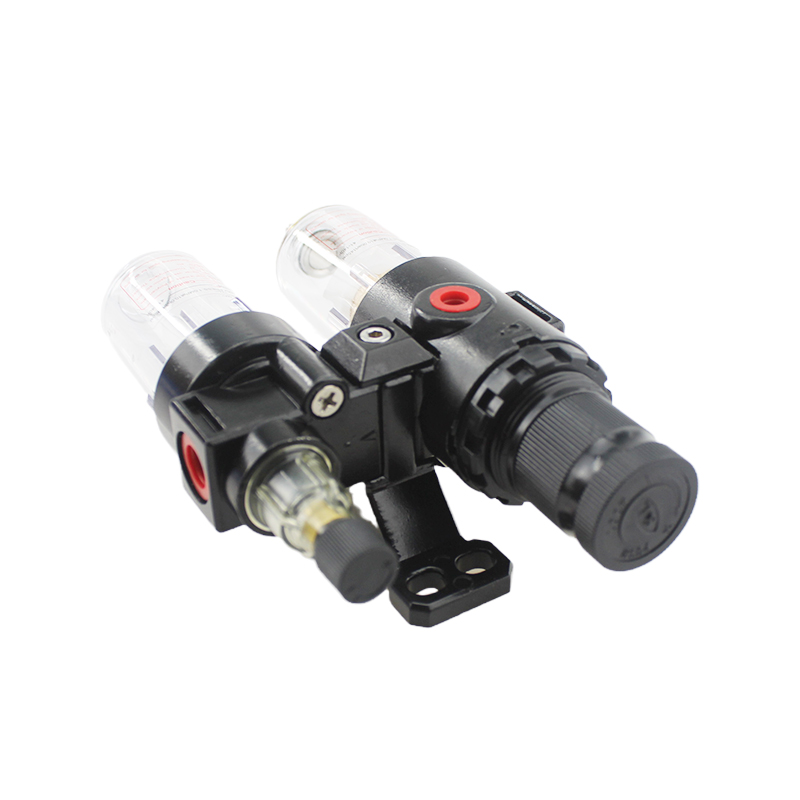

AFC-2000
Specification:
| Model | AFC-2000 |
| Fluid | Air |
| Port size | 1/4" |
| Filtering grade | 40μm |
| Pressure range | Semi-auto and automatic drain:0.15--0.9MPa (20-130Psi) |
| Manual drain :0.05-0.9MPa(7-130Psi) | |
| Proof pressure | 1.5 MPa(215Psi) |
| Temperature range | -20-70't |
| Capacity of filter cup | 15cc |
| Capacity of drain bowl | 25cc |
| Recommended lubricant | ISO VG 32 or equivalent |
Product Features:
1, The structure is delicate and compact,which is convenient for installation and application;
2, The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere;
3, The pressure loss is low and the efficiency of water separating is high;
4, The quantity of oil dripping can be directly observed through transparent checkdome;
5, In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
