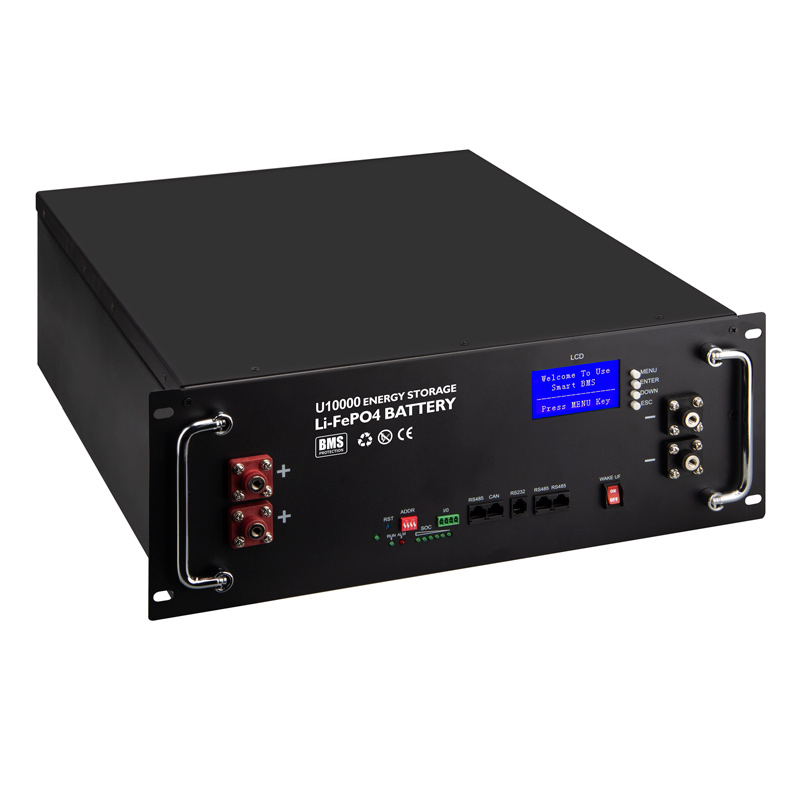

YUMO SBS-200AH Lithium Energy Storage Battery 200ah 48v Lifepo4 Battery Solar Battery 9.6kwh with digital display

The SBSlithiumenergy storage batteryuselong workinglife LiFePO4battery, and high performanceBMS to protect and manage the battery system, it has wider usage and longer life than traditionalbattery.
  • SBS-200AH

  • YUMO

  • 1

  • China

  • genereally

  • Lithium Battery

  • 40.5-53.25VDC

Availability:

YUMO SBS-200AH Lithium Energy Storage Battery 200ah 48v Lifepo4 Battery Solar Battery 9.6kwh with digital display

Products Description:

The SBSlithiumenergy storage batteryuselong workinglife LiFePO4battery, and high performanceBMS to protect and manage the battery system, it has wider usage and longer life than traditionalbattery.

Products Features:

1.rack series with 9.6kwh capacity 48v 15s

2.with LCD/BMS/RS485/CAN/parallel and WIFI/bluetooth optional

3.max parallel 16pcs to 160kwh

4.0.5c charging current and 0.5c discharging current

5.support most hybrid inverter,like Growatt,Deye,Luxpower,Voltronic...

6.5 years warranty

7.with CE,ROHS,FCC,MSDS,UN38.3 and pass ISO

8.support OEM/ODM

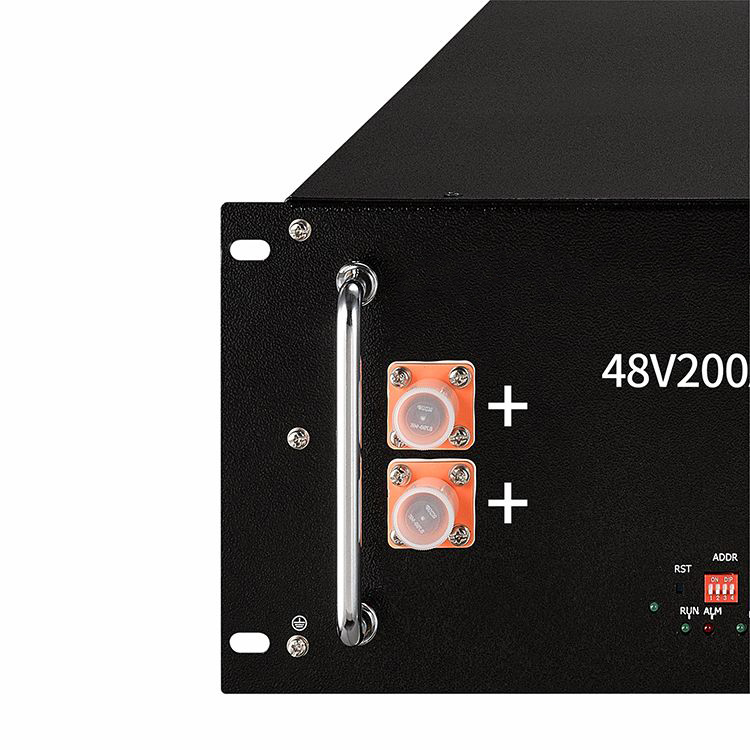

48V200Ah (2)

Model SBS-48v200ah

SBS-51.2v200ah

Capacity 9.6kwh 10.24kwh
Standard Voltage 48v 51.2v
Working Voltage 40.5-54v 43.2-57.6v
Charging Current 100a
Discharging Current 100a
Suggested DOD 80%-90%
Installation rack or cabinet
IP rating IP21
Max Parallel 16pcs
Warranty 5 years
Communication CAN/RS485(WIFI/Bluetooth/4G optional)
Product Size(mm) 590*484*178mm
Packing Size(mm) 730*544*270mm
N.W./unit(kg) 65kg 70kg
G.W./unit(kg) 70kg 75kg
