ABS12C-Q0
YUMO
China
CE
Availability: | |
---|---|

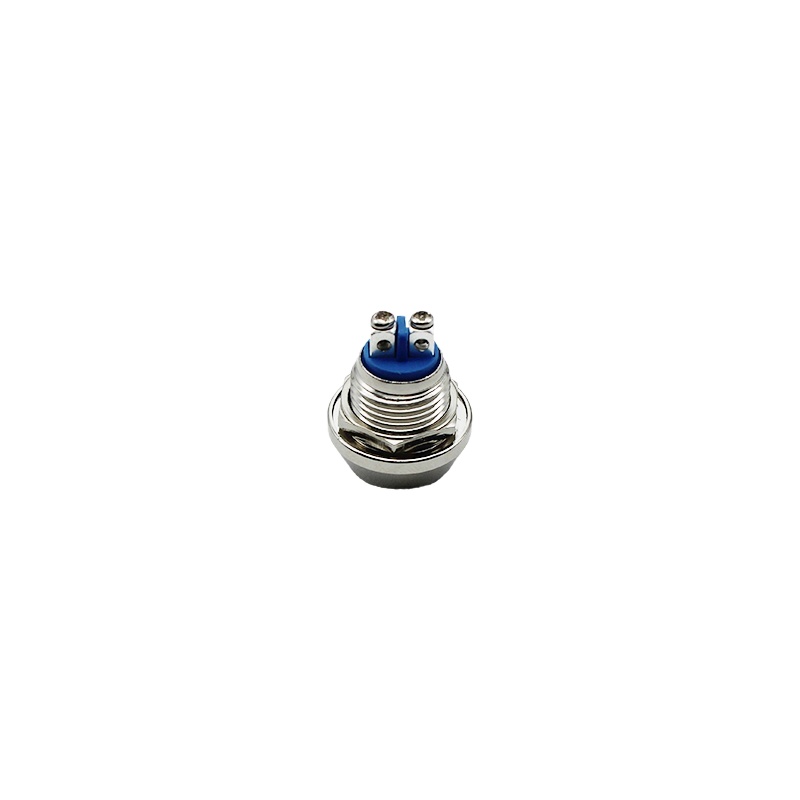

YUMO ABS12C-Q0 metal push button switch stainless RoHS screw terminal switch
12mm Flat Head ABS12s-P IP67 Momentary Metal Push Button switch
Switching Operation | |||
Type | Diagram | sign | Explanation |
1NO | Double breakpoint slow moving contact switch with two terminals | ||
1NO 1NC | Single breakpoint snap change contact switch with three terminals | ||
1NO 1NC | Double breakpoint snap change contact switch with four terminals |
Switching Operation | ||||||
Rated insulation Voltage | 250 | |||||
Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
Rated voltage | 12V | 24V | 110V | 220V | ||
Rated | AC | Resistive load | - | - | 5A | 3A |
Inductive load | - | - | 3A | 2A | ||
DC | Inductive load | 5A | 5A | 1A | 0.5A | |
Inductive load | 2A | 2A | 0.2A | 0.1A | ||
Contact material | Silver Plated Gold |
Lamp Ratings | |
Lamp Type | LED lamp(AC/DC) |
Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
Rated Current | About 15mA |
LED Color | R G Y O B W P |
Life | 40000hours |
