ABI12C-P1 (red)
YUMO
China
CE
Industrial Automation

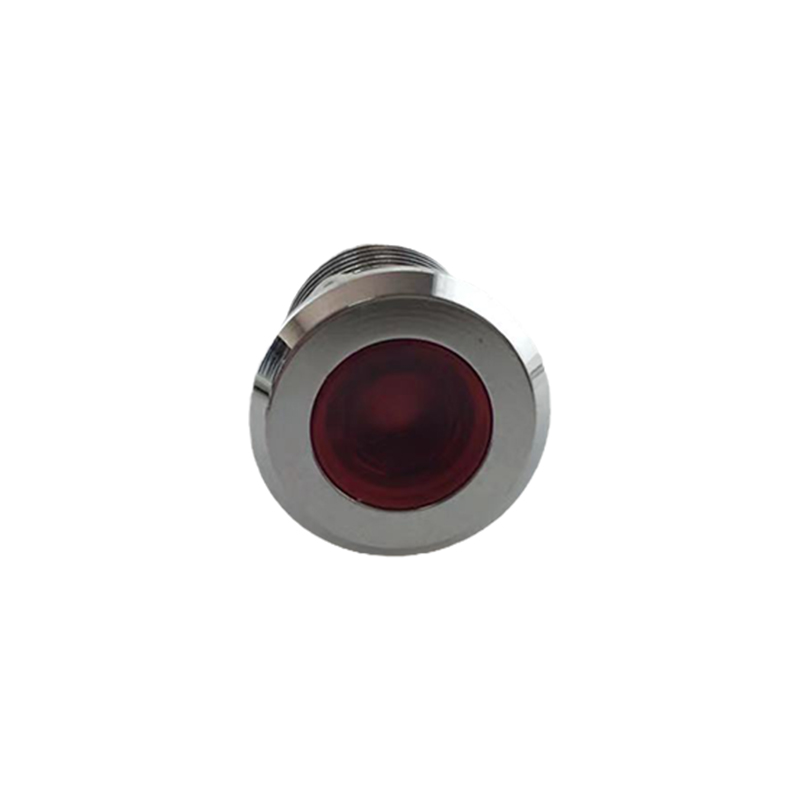

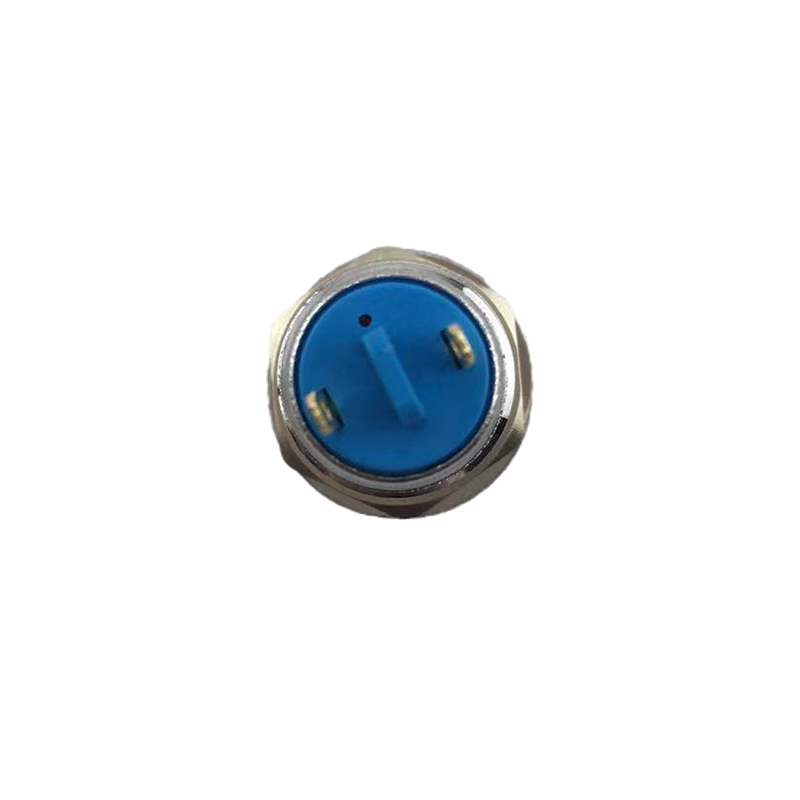

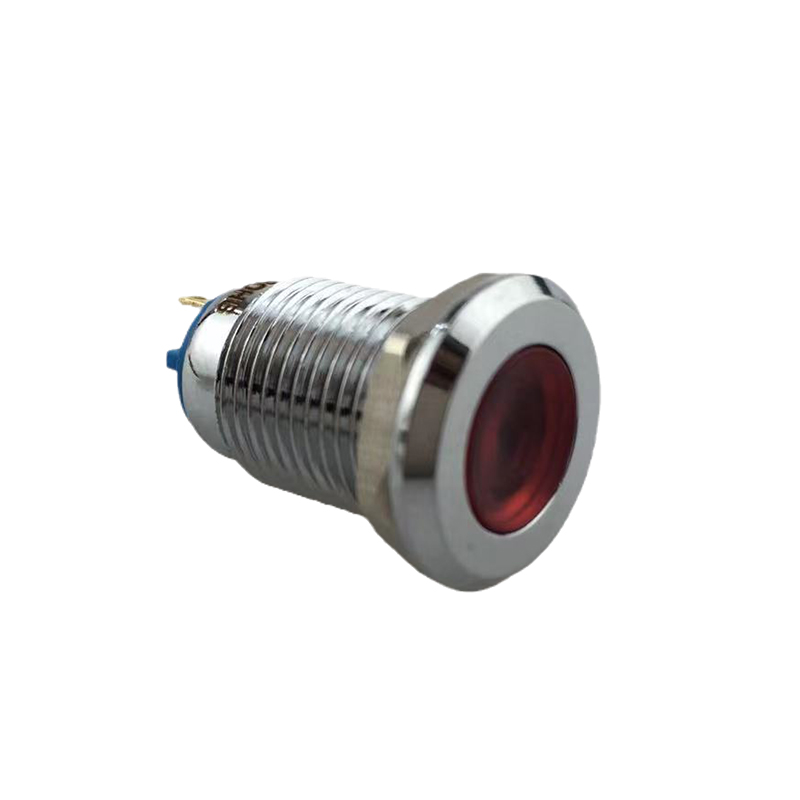

YUMO ABI12C-P1 12mm LED Red IP67 Brass Type Indicator Light
ABI | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Single code | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABI12C-P1 |
Diameter | 12mm |
Type | LED |
Voltage Rating | ≤220V |
Rated Current | About 15mA |
The Crust Material | S/Stainless steel |
IP Degree | IP68, IK10 |
