YUMO 22mm MAX Current 16A Metal Push Button Switch Waterproof IP65 Momentary with LED Light

1.16A/250VAC, 3500W reactive load

2. Optional connector to ensure contact performance and reduce labor waste

3. Concave design, more convenient operation;

4. Super metal texture and high-end appearance design, improve the ability to resist welding deformation

5. The waterproof and dustproof grade is IP65

6. Mechanical life: up to 300,000 times, can work at -40℃~80℃

7. Has applied for a number of patents, CCC, CE certification

8. Instant glow
  • LB22E-S-B-5-24V

  • YUMO

  • 1

  • China

  • Push Button Switch

  • 24V

  • 22mm

  • Push Button Switch

  • CCC

  • yes

  • 24V

  • Max. 16A

Availability:

YUMO 22mm MAX Current 16A Metal Push Button Switch Waterproof IP65 Momentary with LED Light


Features:

 1.16A/250VAC, 3500W reactive load

 2. Optional connector to ensure contact performance and reduce labor waste

 3. Concave design, more convenient operation

 4. Super metal texture and high-end appearance design, improve the ability to resist welding deformation

 5. The waterproof and dustproof grade is IP65

 6. Mechanical life: up to 300,000 times, can work at -40℃~80℃

 7. Has applied for a number of patents, CCC, CE certification

 8. Instant glow

LB22E-S-B-5-24V (1)

Product Image

LB22E-S-B-5-24V (5)

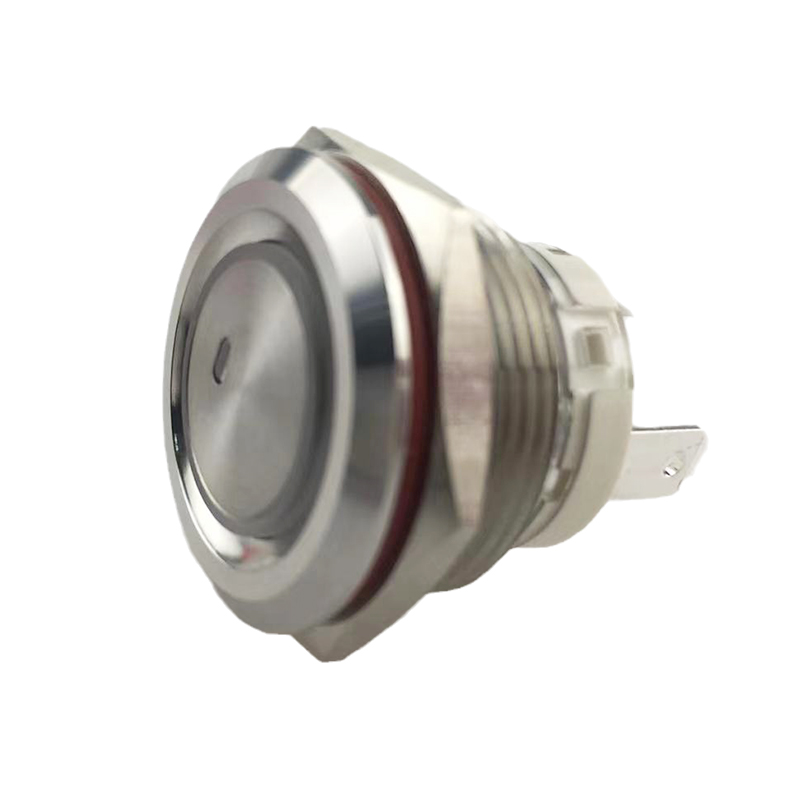

Ring LED

Ring blue light

Momentary button


LBLB22E-S-G-5-24V

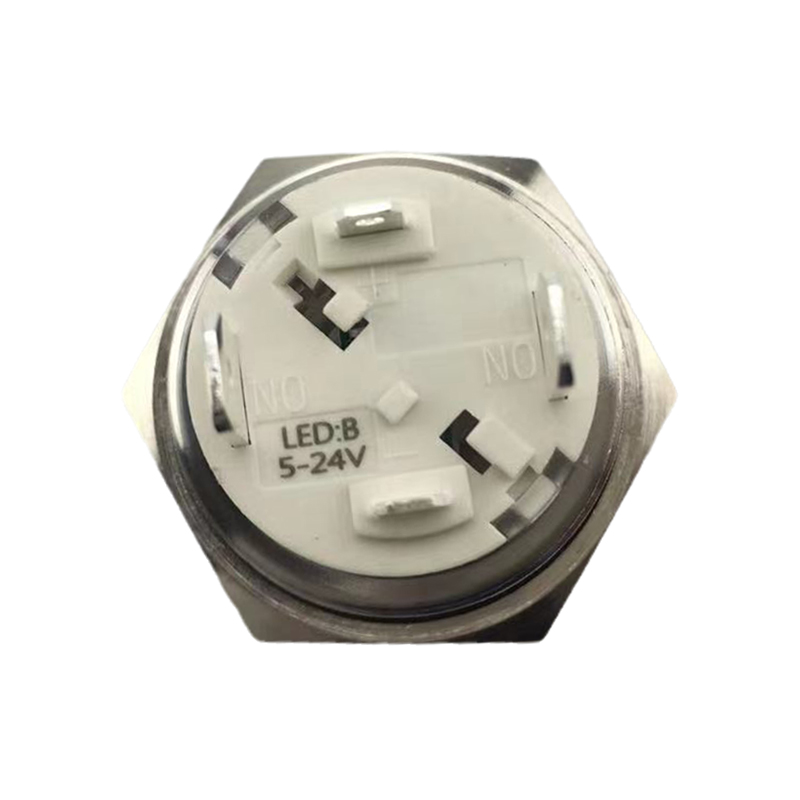

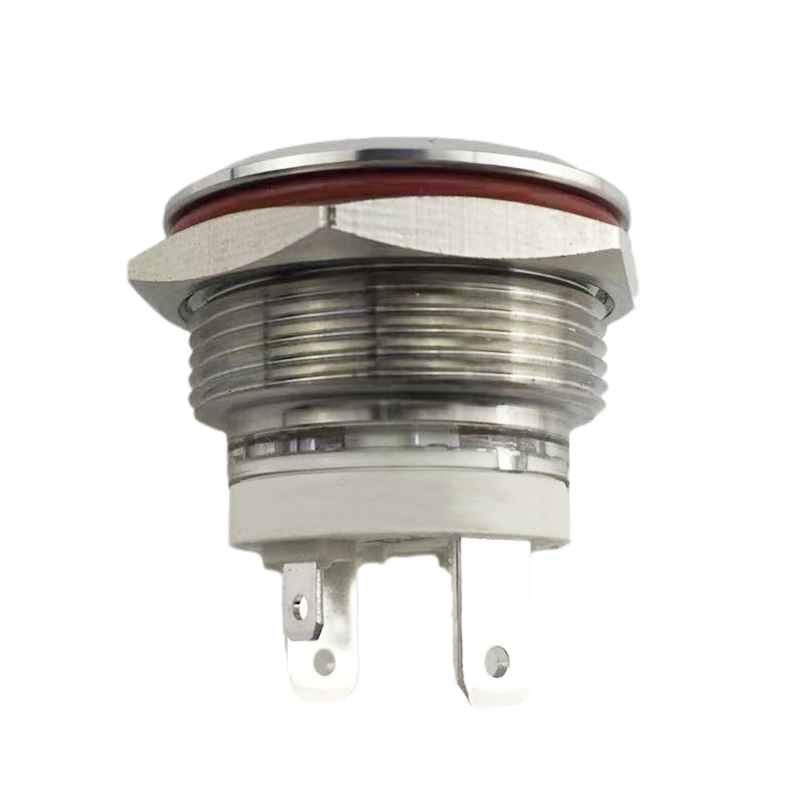

Four contacts

two long foot and two short foot


LB22E-S-B-5-24V (3)


Stainless Steel

Other kinds of materials can be customized


Details

1111222

3334444
Parameters

LB22E-S-B-5-24V
Mounting diameter 22mm
Head shape Plat Head
Switch combination 1NO
Operation type Momentary
Illuminating type Ring LED
Illuminating color Blue
Shell material Stainless steel

LED Lamp
Led type High Brightness LED lamp,cool
Luminous color Blue
Rated Voltage AC/DC9~24V
Rated Current ≤20mA
Reference Life 40,000hours


LB22E-S-B-5-24V (11)LB22E-S-B-5-24V (10)LB22E-S-B-5-24V (9)LB22E-S-B-5-24V (8)
