E3X-NT11
YUMO
YM00006672

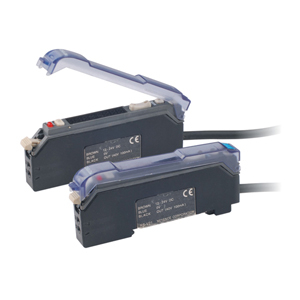

E3X-NT11 Fiber optic amplifier
Features
●Ultra-thin, is only lOmm thick and ICH based, saving spaces for machines
●Push one button to eaure of IP66, can be safely used even in the humid environment
●The working hours for adjustment are reduced by using the teaching function
Tecnical parameters
Project | General-purpose NPN output | Model：E3X-NT11 |
| (380mm) Red light-emittng diode(380mm) | |
Power supply | DC12～24V±10%of corrugated(P-P)10% of the following | |
Current consumption | ≤50mA | |
Output Control | Following is a lOOmA load current(voltage of lV to stay below) show the root NPN/PNP output in the form of different and | |
Protection of the loop | Then reverse power protection, output short-circuit | |
Response time | Action，reversion，the following 500uS(set off | |
Teach-in function to confirm | That light（red，green，2-color，Ming-feng) | |
Lighting | Smooth by the light，incandescent；3000rx below ,following the sun lOOOrx | |
Ambient temperature | When action:-2+55℃,savetime:40～70℃(there can not be frozen, the phenomenon of condensation) | |
Surrounding humidity | 34～85%RH，Save：Save time：35～95%RH | |
Insulation resistance | 20mΩ 以上（DC500MV以兆计）20mΩ above（DC500MV to trillion dollars） | |
Voltage | AC1,000V 50/60Hz 1min | |
Vibration(durable) | 10～50Hz complex amplitude l.5mmor 300m/s2 X,Y,Z direction of the 2h | |
The impact of(durable) | 500m/s2 X,Y,Z direction of the 3back | |
Protection of the structure | IBC standard IP50(when the installation of protective cover) | |
Connection | Lead-based(standard long line 2m) | |
Weight(in packing cases) | 100g | |
Materials | Shell | P-ethylene salt ll |
Theprotective shield | Polyester | |
Accessories | The installation of metal parts，operating manuals | |
