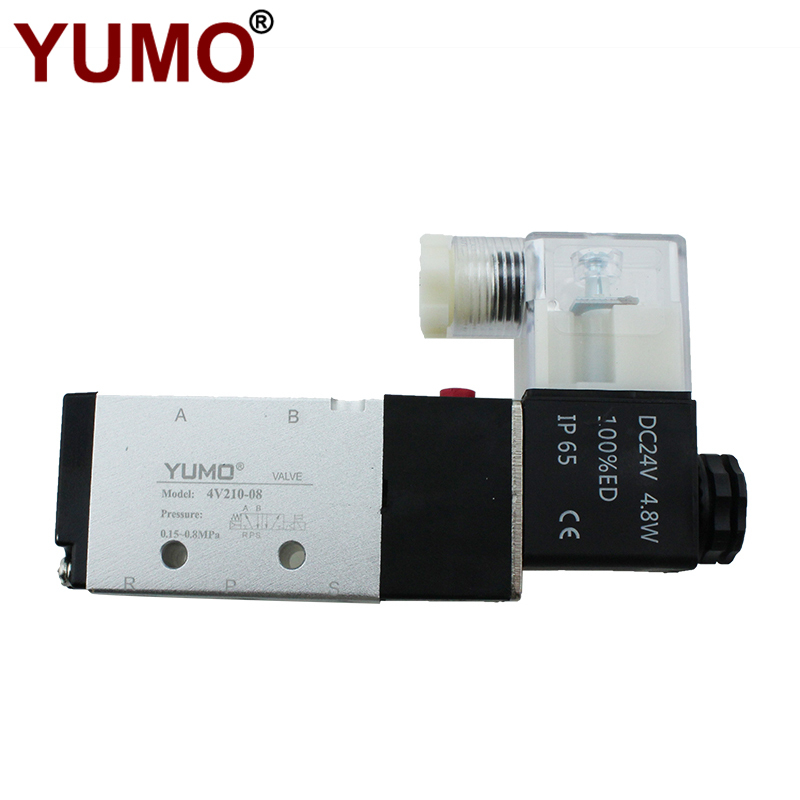

4V210-08 DC24V 1/4 Pneumatic Airtac Type Pneumatic Solenoid Valve Directional Control Valve

Features:
1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Three position solenoid valves have three kinds of central function for your choice.
4.Double control solenoid valves have memory function.
5.Internal hole adopts special processing technology which has lttle : atrition friction, low start pressure and long service life.
6.No need to add oil for lubrication.
7.It is available to form integrated valve group with the base to save installation space.
8.Afiliated manual devices are equipped to facilitate installation and debugging.
9.Several standard voltage grades are optional.
  • 4V210-08 DC24V

  • YUMO

Availability:

Product feature

  • Pilot-oriented mode: optional for internal or external;

  • Structure in sliding column mode: good tightness and sensitive reaction;

  • Three position solenoid valves have three kinds of central function for your choice;

  • Double control solenoid valves have memory function;

  • Internal hole adopts special processing technology which has lttle attrition friction, low start pressure and long service life;

  • No need to add oil for lubrication;

  • It is available to form integrated valve group with the base to save installation space;

  • Affiliated manual devices are equipped to facilitate installation and debugging;

  • Several standard voltage grades are optional;

Specifi cations

 Model 4V210-08
 Fluid
Air
 Acting
Piloted
 Port size In=Out =1/4" Exhaust=1/8"
 Orifice size
16.0mm2(Cv=0.89)
 Valve type
5 port 2 position
 Operating pressure 0.15 ~ 0.8MPa
 Max. proof pressure 1.5MPa
 Temperature -20 ~ 70 ℃
 Material of body
Aluminum alloy
 Lubrication
Not required
 Highest action frequency 5 cycle / second



Dimensions

4V210
