3 Position Selector Rotary Push Button Push Button Switch with Electrical Standard Handle YUMO LAY4-BD33

3 Position Selector, push button parts, push button parts,Push button element,Push Button Switch, 3 Position Selector, Rotary Push Button, Push switch,Elevator Button,Lifts Control Button Manufacturer,Supplier,Price,Wholesale,Buy,China,Cheap,Best,Company
  • LAY4-BD33

  • YUMO

  • 20

  • China

  • Push button Base

  • Pusht button Switch Parts

  • 400V push button

  • Contact element

  • AC

  • Green

  • CE RoHS

  • 10A

  • 1NO1NC

  • 50Hz/60Hz

  • ±20%

  • AC 2.5KV/min

  • ≥50MΩ

  • ≤25MinΩ

  • 10A

  • push button auxiliary contact

Availability:

3 Position Selector Rotary Push Button Push Button Switch with Electrical Standard Handle YUMO LAY4-BD33

Product Application
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.

Main technical parameter
Basic technical parameter of button  Basic technical parameter of signal lamp
Rated insulation AC 600V(50Hz/60Hz) Insulation resistance ≥50MΩ
Conventional heating current 10A Contact resistance ≤25MinΩ
Insulation resistance ≥50MΩ Pf withstand voltage AC 2.5KV/min
Contact resistance ≤25MinΩ Voltage wave ±20%
Mechanical life 100x10000
pushbutton
50x10000
selector switch
Brightness 60cd/m2
Electrical life 500x10000
pushbutton
25x10000
selector switch
Continuous working life

Product Pictures

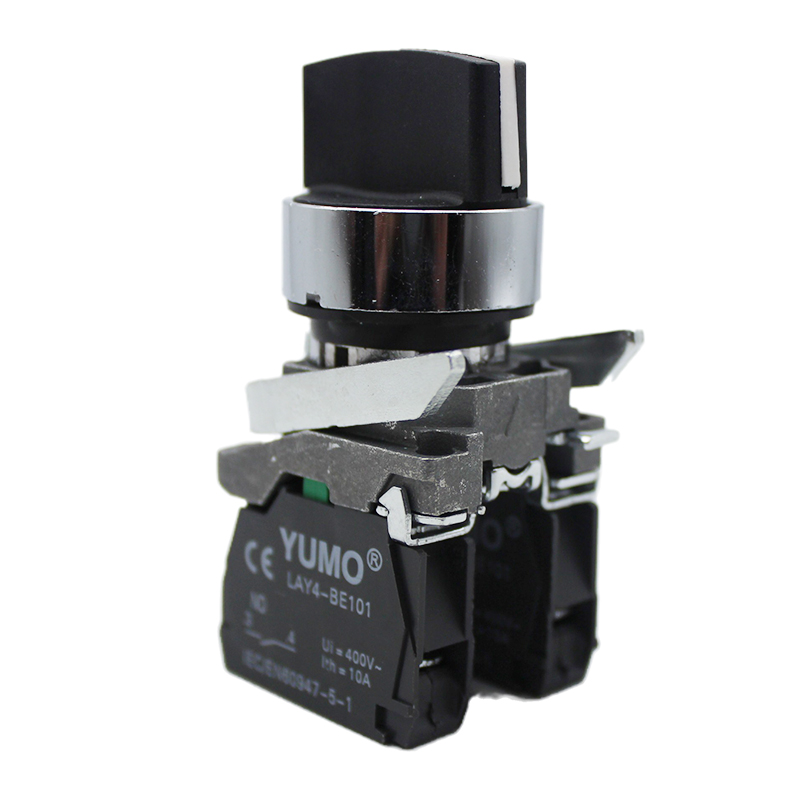

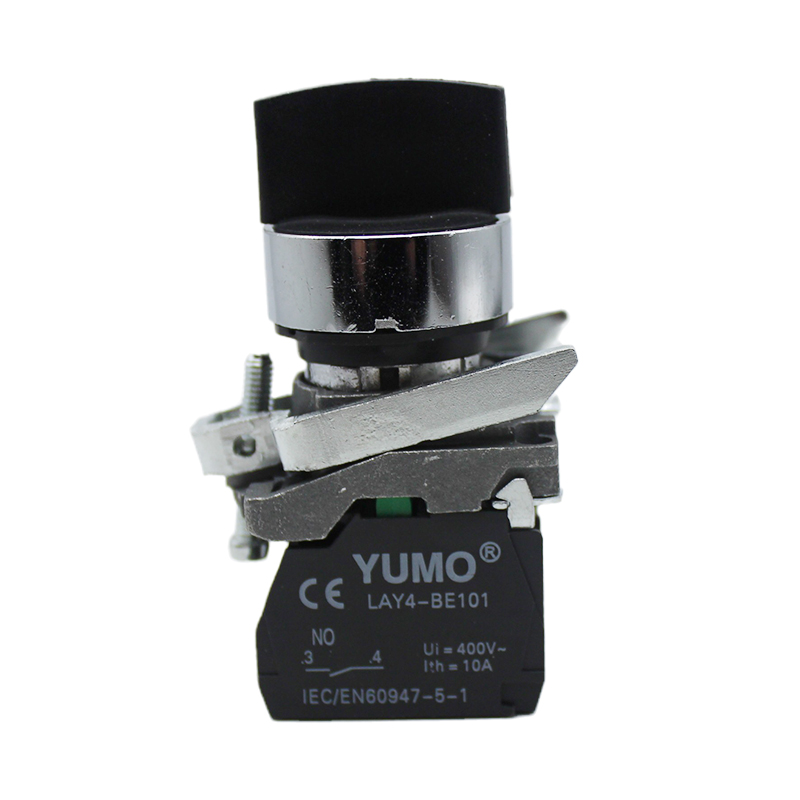

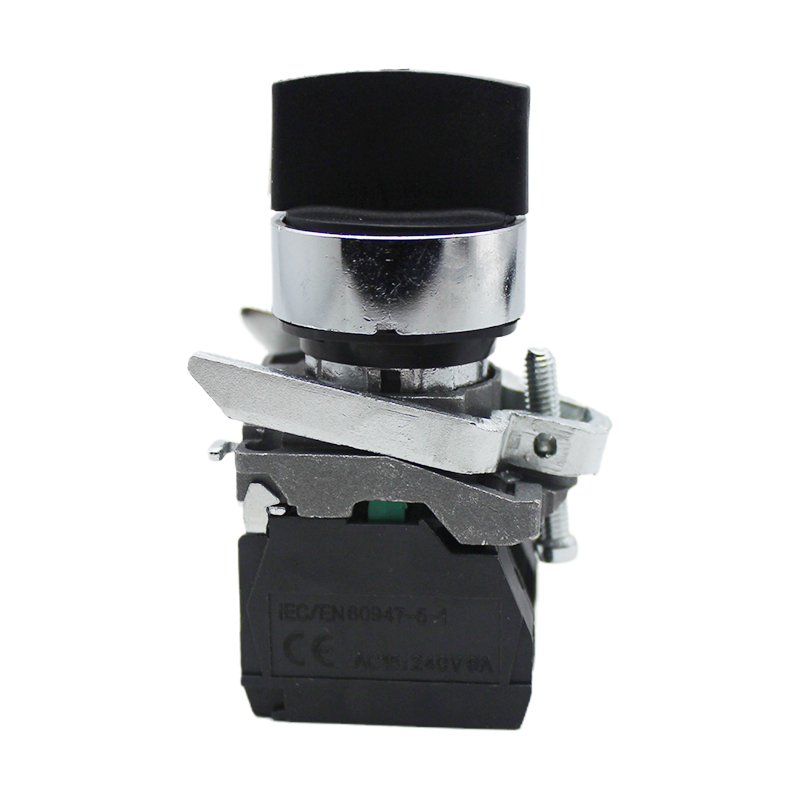

LAY4-BD33 (1)LAY4-BD33 (6)LAY4-BD33 (5)
