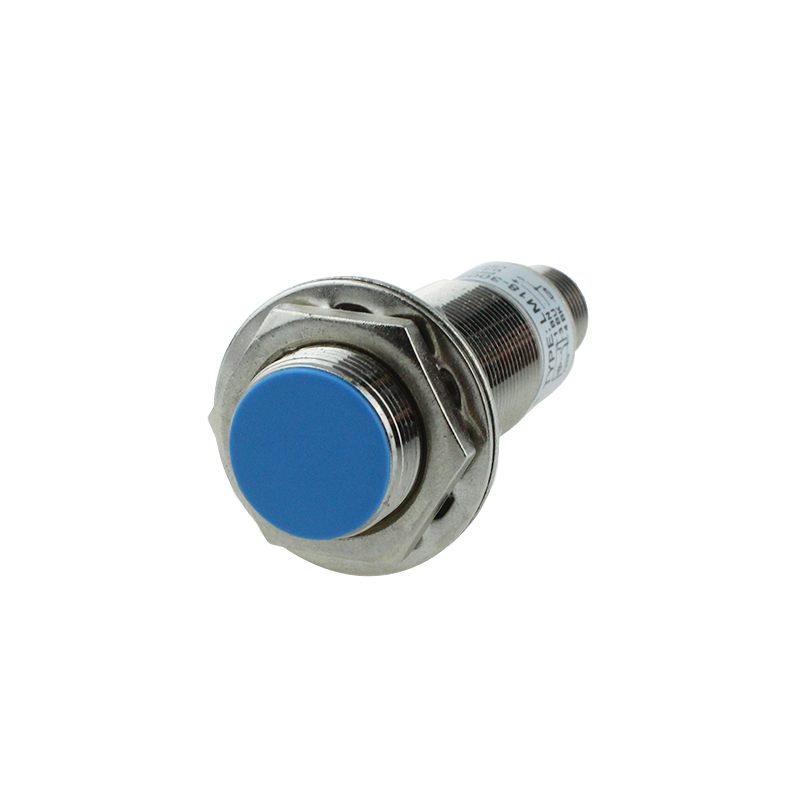

Flush without Cable M12 Connector Type Proximity Sensor Switch

  • LM18-3008PAT-L
  • YUMO

flush without cable M12 connector type Proximity sensor swicth



Product Description

.jpg



Model No. LM18-3008PAT-L
Working voltage 10-30VDC
Output form PNP Output
Output state NO
Structural category Connnector type(with aviation connector)
Shell Material Metal
Protection grade IP67
Detection distance 8mm
Detection type Non-flush



 Overall dimensions:  (unit:mm)






LM18 Inductive proximity switch
Detecting range 5mm Cylinder type Connector type
Flush DC   NPN NO LM18-3005NA LM18-3005NAT
NC LM18-3005NB LM18-3005NBT
NO+NC LM18-3005NC LM18-3005NCT
  PNP NO LM18-3005PA LM18-3005PAT
NC LM18-3005PB LM18-3005PBT
NO+NC LM18-3005PC LM18-3005PCT
2 Wires NO LM18-3005LA LM18-3005LAT
NC LM18-3005LB LM18-3005LBT
AC SCR NO LM18-2005A LM18-2005AT
NC LM18-2005B LM18-2005BT
NO+NC LM18-2005C
Relay output

                          Detecting rang 8mm
Non-flush DC NPN NO LM18-3008NA LM18-3008NAT
NC LM18-3008NB LM18-3008NBT
NO+NC LM18-3008NC LM18-3008NCT
PNP NO LM18-3008PA LM18-3008PAT
NC LM18-3008PB LM18-3008PBT
NO+NC LM18-3008PC LM18-3008PCT
2 Wires NO LM18-3008LA LM18-3008LAT
NC LM18-3008LB LM18-3008LBT

SCR NO LM18-2008A LM18-2008AT
NC LM18-2008B LM18-2008BT
NO+NC LM18-2008C
Relay output



Specifications:

Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC(NPN;PNP) <3V; 2wires type:<3.9V; AC type: AC<10V DC< 3V; AC< 10V
Consumption current DC(NPN;PNP) 12V 8mA; 24V 15mA; AC type: <10mA, DC<15mA; AC<10mA
Standard detected object 18×18×1(A3 Iron)
Repeated precision 0.02
Response Frequency Cylinder type: 200Hz/25Hz; Connector type: 200Hz/10Hz
Working environment temperature  Cylinder type: -25~+75℃; Connector type: -25~+65℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

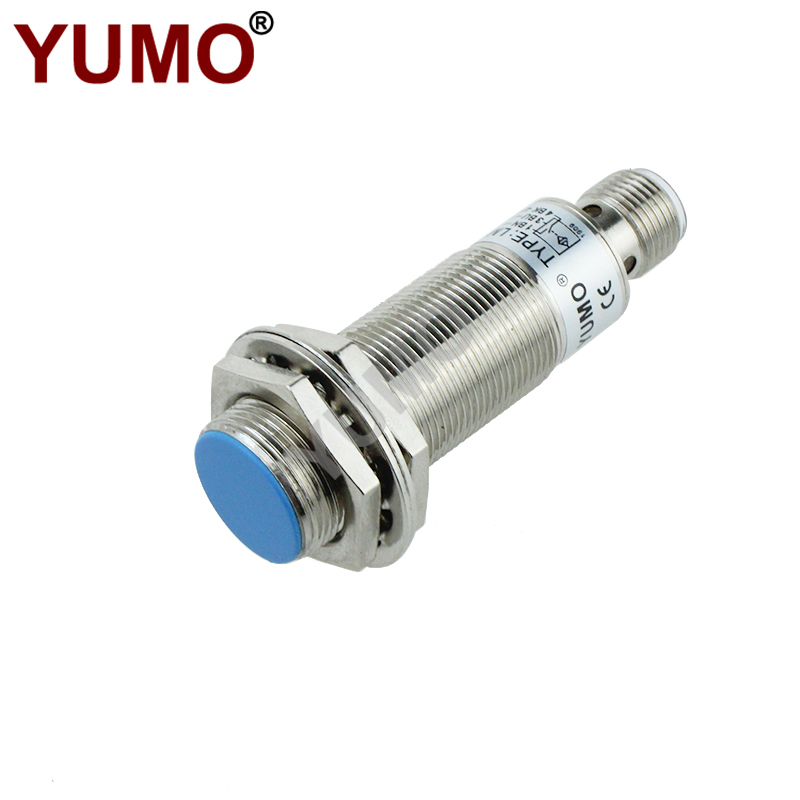

Product Pictures

LM18-3008PAT-L (6)LM18-3008PAT-L (1)LM18-3008PAT-L (3)
