LMF39-3050NC Hot Sale Plane Instanllation Type Inductive Proximity Sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice

  • LMF39-3050NC
  • YUMO
  • YM0000000046

 LMF39-3050NC Hot sale Plane instanllation type inductive proximity sensor

Product Description:

Non-flush Detection distance 1 -50mm
DC 10-30 VDC NPN NO LMF39-3050NA
NC LMF39-3050NB
NO+NC LMF39-3050NC
PNP NO LMF39-3050PA
NC LMF39-3050PB
NO+NC LMF39-3050PC
Two wire system NO LMF39-3050LA
NC LMF39 -3050LB
AC 90~ 250 VAC SCR Controllable silicon NO LMF39 -2050A
NC LMF39-2050B
NO+NC LMF39 -2050C
Relay output LMF39-2050JC
Control output DC 200mA
SCR/Relay 300mA/ 2A
Output voltage dropDC/AC DC>3V , AC<10V
Consumption current DC<15mA , AC<10mA
Standard detected object 120×120×1(A3iron)
Repeated precision 0.5
DC/AC Response frequency 50Hz/10Hz
Working environment temperature -25℃~ +75
Insulation resistance 50MΩ
Shell material Resin
Protection grade IP67

YUMO sensor catalouge-13

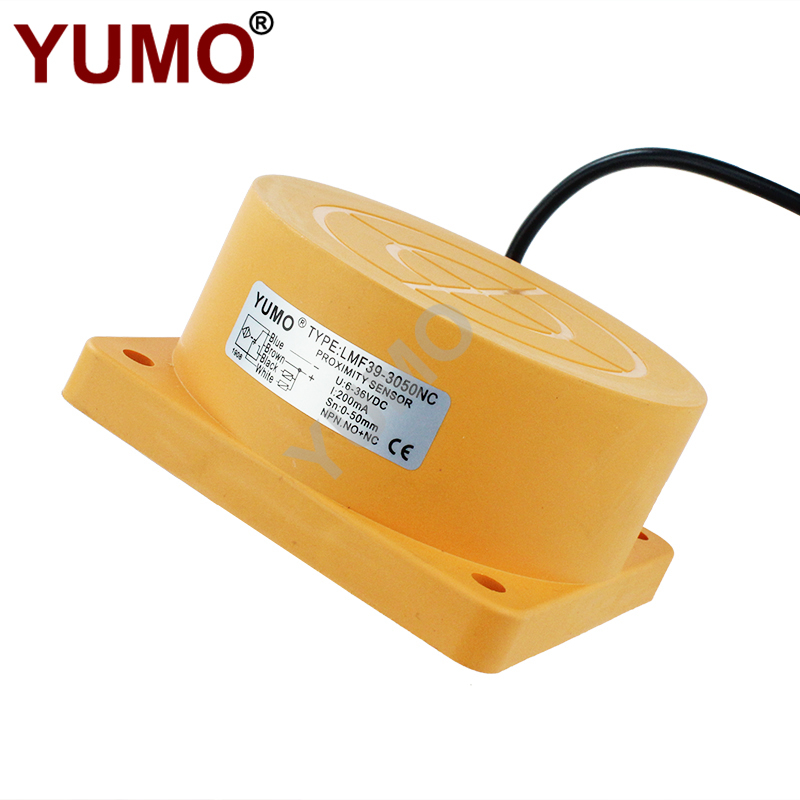

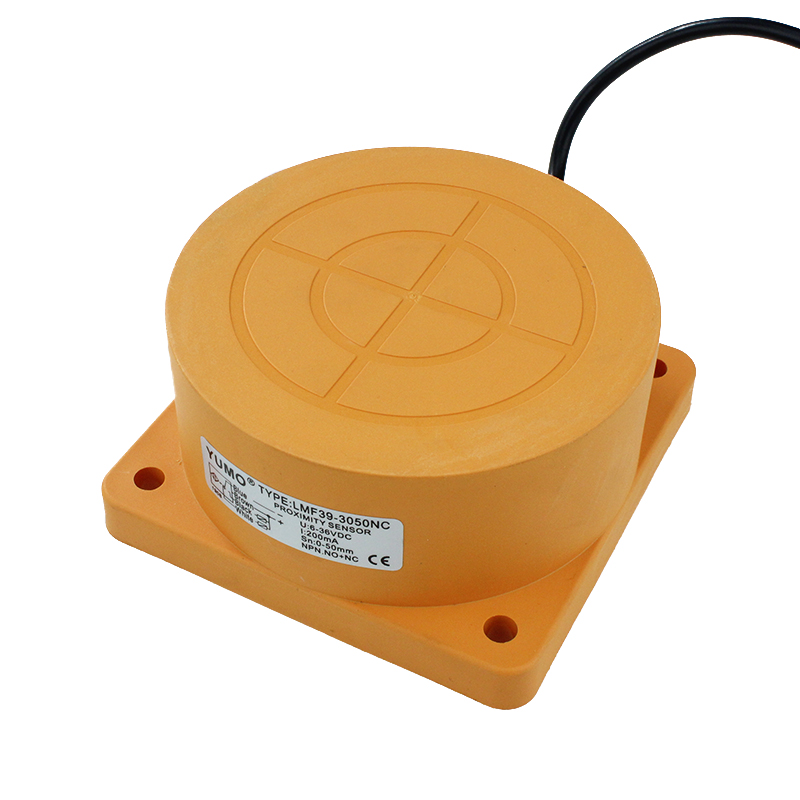

Product Pictures:
