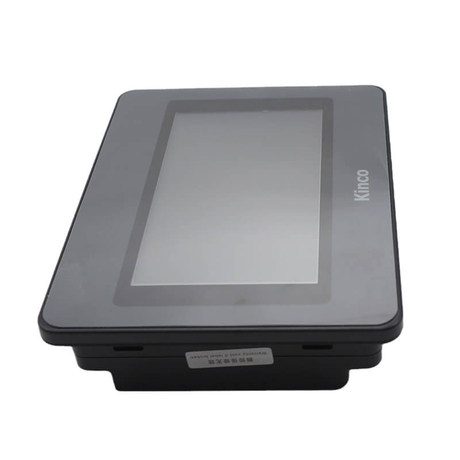

HMI Human Machine Interface touch screen 4.3" MT4230TE
Product Description
Model | MT4220T | MT4230TE |
Performance specification | ||
Display | 4.3" TFT | |
Resolution | 480*272 | |
Color | 65536 | |
Backlight | LED | |
Brightness | 300cd/ m² | |
Backlight life | 50000 hours | |
Touch Panel | 4-wire precision resistance network | |
Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC |
Memory | 128M FLASH + 64M SDRAM | |
U Disk | None | 1USB host |
SD Card | None | 1 SD card |
Recipe memory & RTC | 512KB + RTC | |
Printer port | Serial port | Serial port/USB port |
Ethernet | None | Support |
Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port |
COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | |
Function Key | None | |
Software | EV5000 V1.6 | |
Electrical specification | ||
Rated power | 3.5W | |
Rated voltage | DC24V | |
Input range | 12~28VDC | |
Power down allowed | <3ms | |
Insulation resistance | Greater than 50MΩ@ 500V DC | |
Dielectric strength test | 500 VAC 1 minute | |
Structure specification | ||
Shell color | Black | |
Shell material | ABS | |
Dimensions(mm) | 154×89×59.8mm | |
Cutout size(mm) | 145×81mm | |
Weight | 0.34 Kg | |
Environment specification | ||
Operating temperature | -20~55 ° C | |
Operating humidity | 10~90% non-condensing | |
Storage temperature | -25~60 ° C | |
Storage humidity | 10~90% non-condensing | |
Shockproof test | 10~25Hz (X, Y, Z direction, 2G, 30 minutes) | |
Cooling method | Natural air cooling | |
Certification | ||
Degree of protection | IP65 (front panel) | |
CE certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards | |
FCC compatibility | Complies with FCC Class A | |
