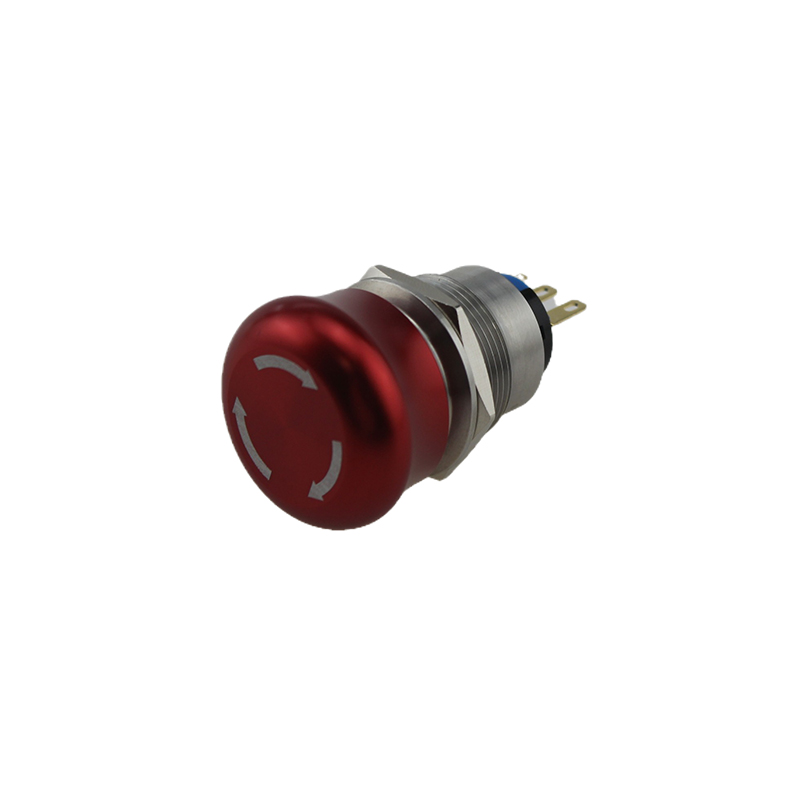

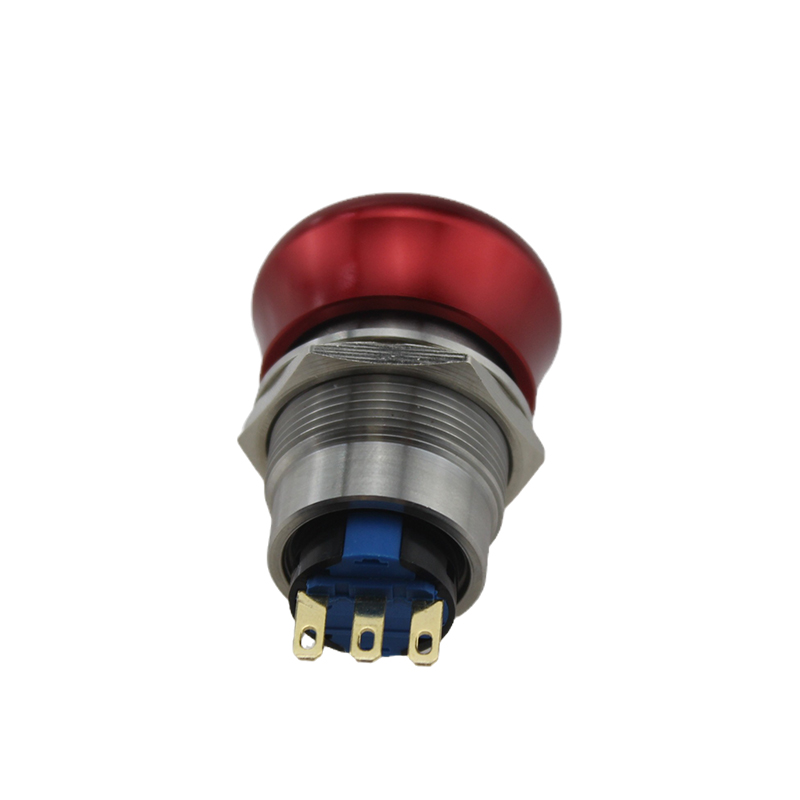

Metal Button Switch Metal Push Button Switch ABS22S-M11

1.16A/250VAC,
2. Optional connector to ensure contact performance and reduce labor waste
3. Super metal texture and high-end appearance design, improve the ability to resist welding deformation
4. Mechanical life: up to 300,000 times, can work at -40℃~80℃
5. Has applied for a number of patents,  CE certification


  • ABS22S-M11

  • YUMO

  • 10

  • China

  • maximum voltage: 250VAC

  • Push Button Switch

  • CE

  • Maximum current：5A

Availability:
Inquire Add to Basket

Features:

  • 22mm diameter

  • Switch Rating:5A/250VAC

  • Contact Configuration:1NO1NC

  • Operation Type:Push-LockTurn-reset

  • The Front Shape:Ball

  • The Crust Material:Stanless Steel

  • IP Degree:IP65IK10



Dimemsions:


 size

Technical Specifications

Diameter 22mm
Switch Rating 5A/250VAC
Contact Contiguration 1NO1NC
The Crust Material S/Stainless steel
Operation Type Push-LockTurn-reset
The Front Shape Ball
Color Red
Lightway Arrow
Warranty 1 year
