Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
JS22F-11EW12VN
YUMO
China
maximum voltage: 250V
micro switch waterproof Metal push button
CE
medical treatment elevator equipment
Maximum current：5A

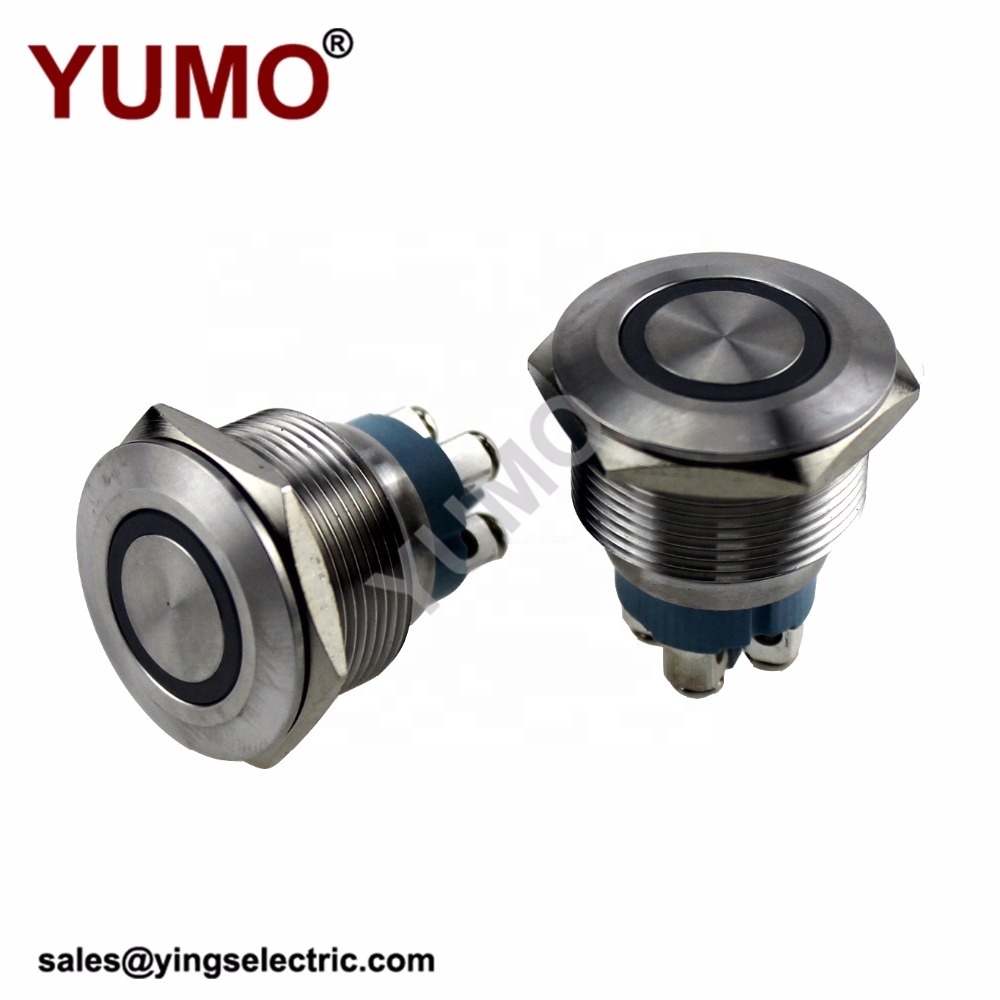

YUMO JS22F-11EW12VN medical treatment elevator equipment micro switch waterproof Metal push button
| Specification | JS22F | |
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(2.8x0.5mm) | |
| Switching | NO.2 | |
| Max.Switch Rating | Ith:5A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000mΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20ºC-+55ºC | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 50, 000cycles | |
| Panel Thickness | 1~8mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | About 5.5mm | |
| Operation Distance | About 2.5mm | |
| IP Degree | IP65 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Steel | |
| Base | PA | |
| ROHS | Made to order | |
| LED Specl | Type | Ring Illuminated(LED) |
| Rated voltage | 6V/12V/24V/36V/110V/220V | |
| Color | R G Y O B W | |
| Life | 40000 hours | |

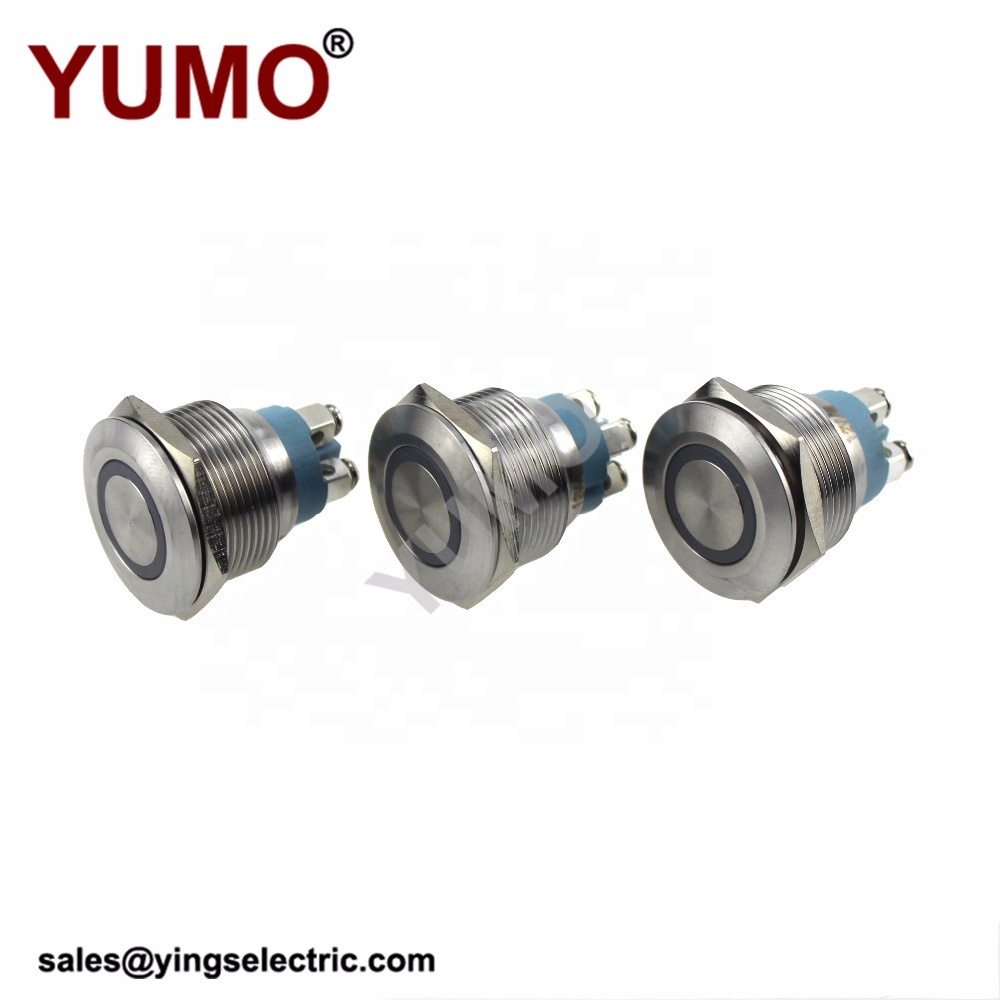

YUMO JS22F-11EW12VN medical treatment elevator equipment micro switch waterproof Metal push button
