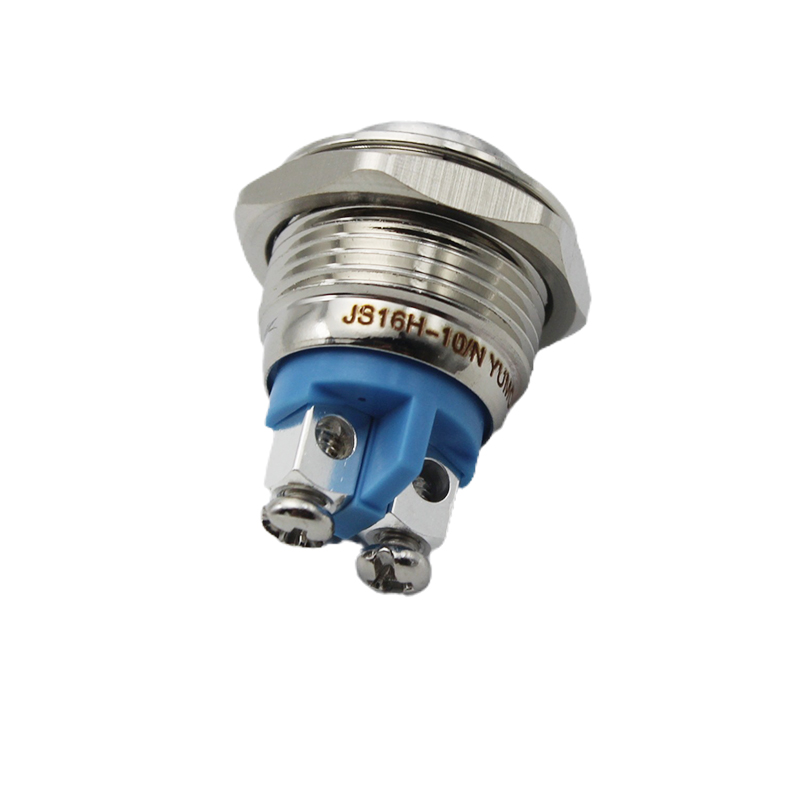

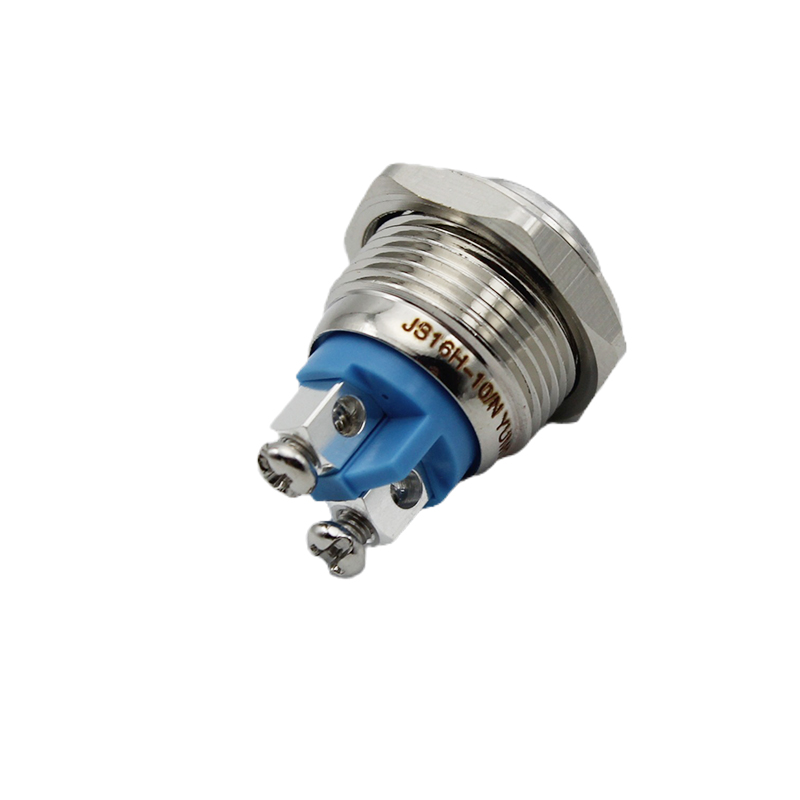

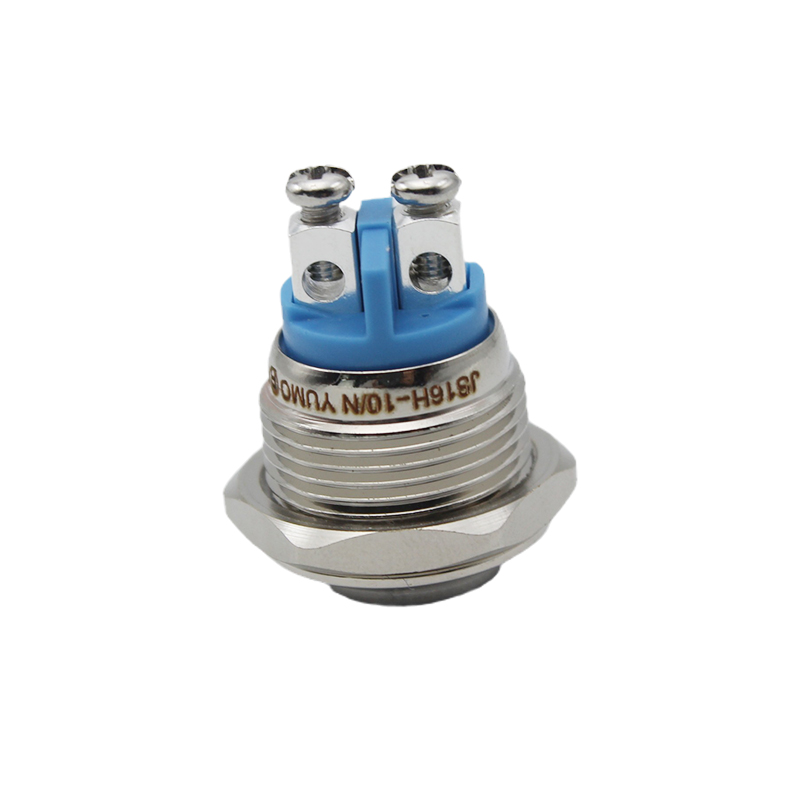

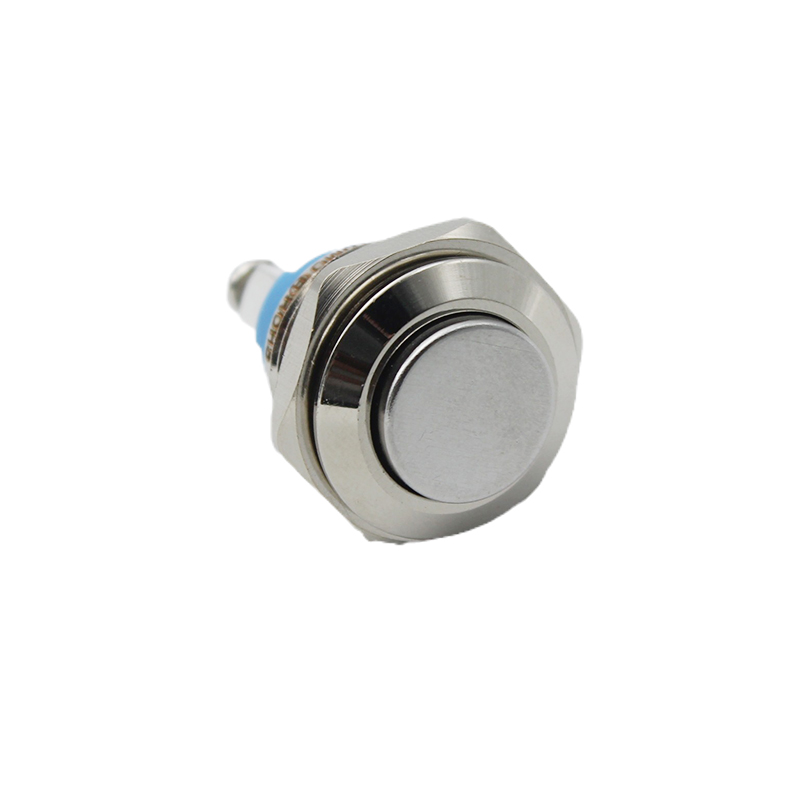

JS16H-10N
YUMO
China
220V push button starter switch
CE
Maximum current：2A
| Specification | JS16H-10N |
| Head shape | high flat circular |
| Tail shape | terminal post |
| Switch structure | NO.1 |
| Switch specification | 2A/36VDC |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥1000MΩ |
| Insulation strength | 2000VAC |
| Environmental temperature | -20℃~+55℃ |
| Mechanical life | over 1,000,000 times |
| Electrical life | over 200,000 times |
| Panel thickness | 1~6mm |
| Nut torque | 5~14Nm |
| Operating pressure | about 4N |
| Operating stroke | about 1.5mm |
| Protection level | IP65 |
| Electric shock material | silver alloy |
| Button | stainless steel/brass (gold plated) |
| Shell | stainless steel/brass (chrome or gold plated) |
| Base | PBT |
