ABS16-SP11ERG
YUMO
China
Maximum voltage::250VAC
CE
Maximum current：3A/5A

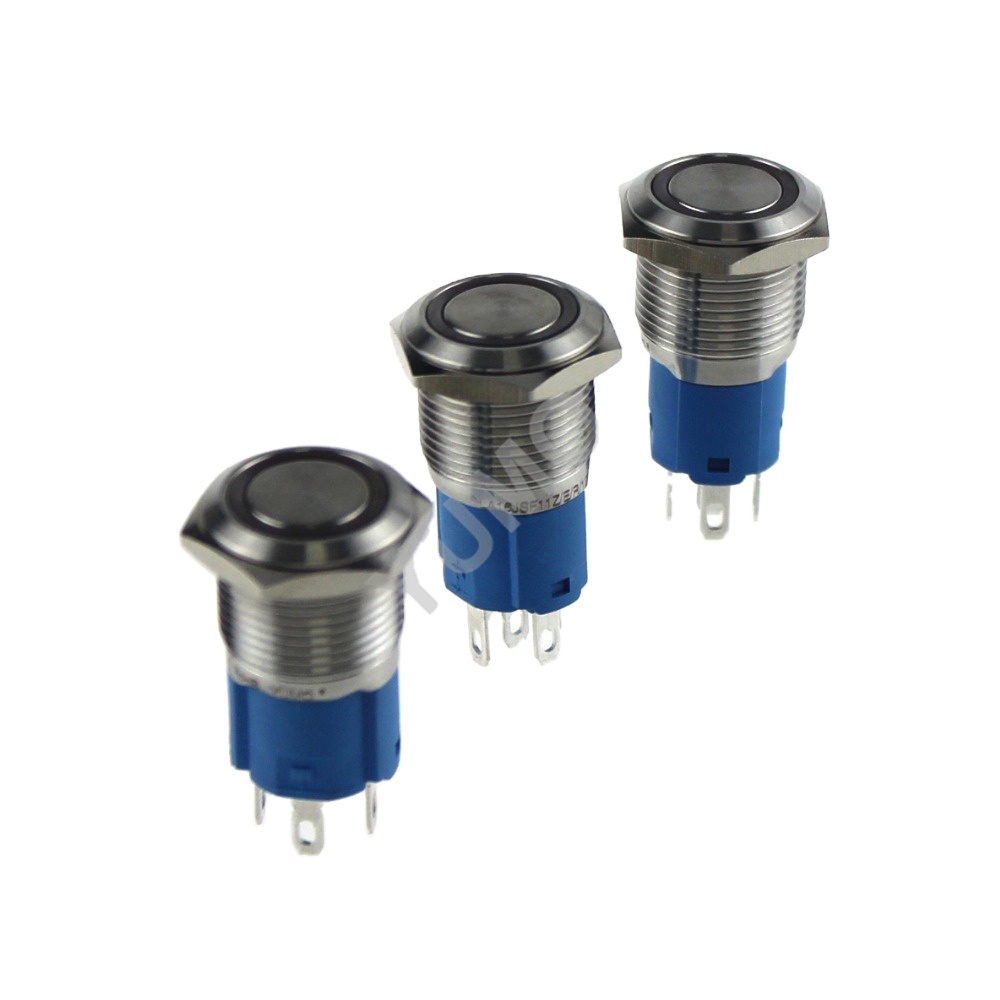

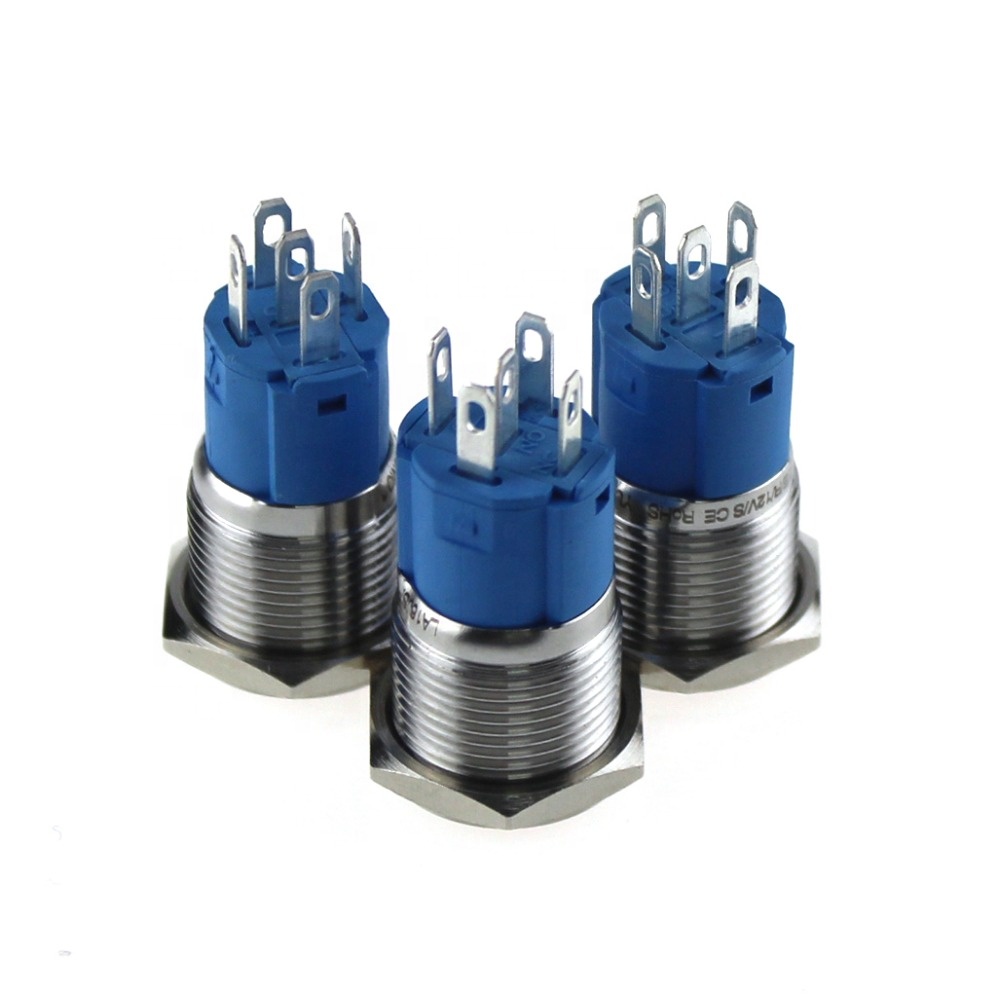

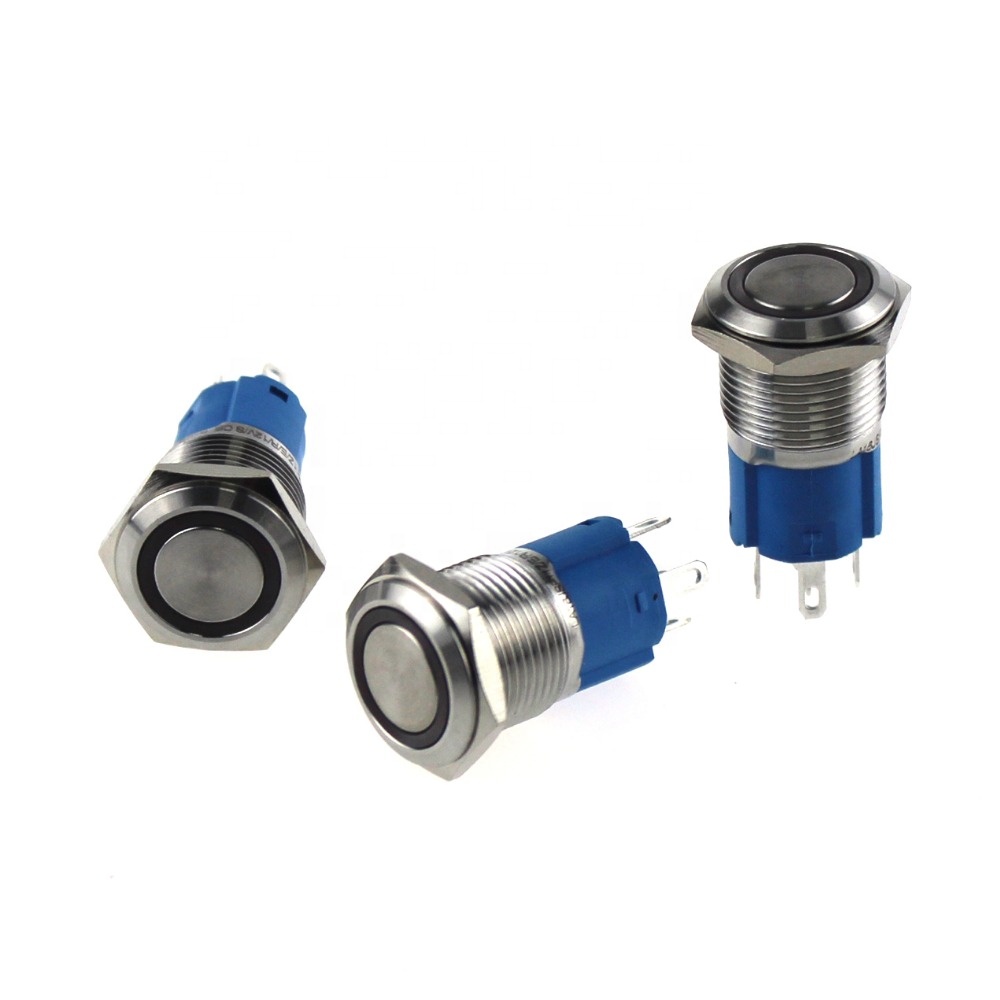

YUMO 16mm ABS16-SP11ERG anti-vandal double color waterproof led push button switch
Appearance design beautiful
By highlighting the long life-span LED
Internal resistance
Ultra short installation size, installation diameter is complete
Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
| ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
