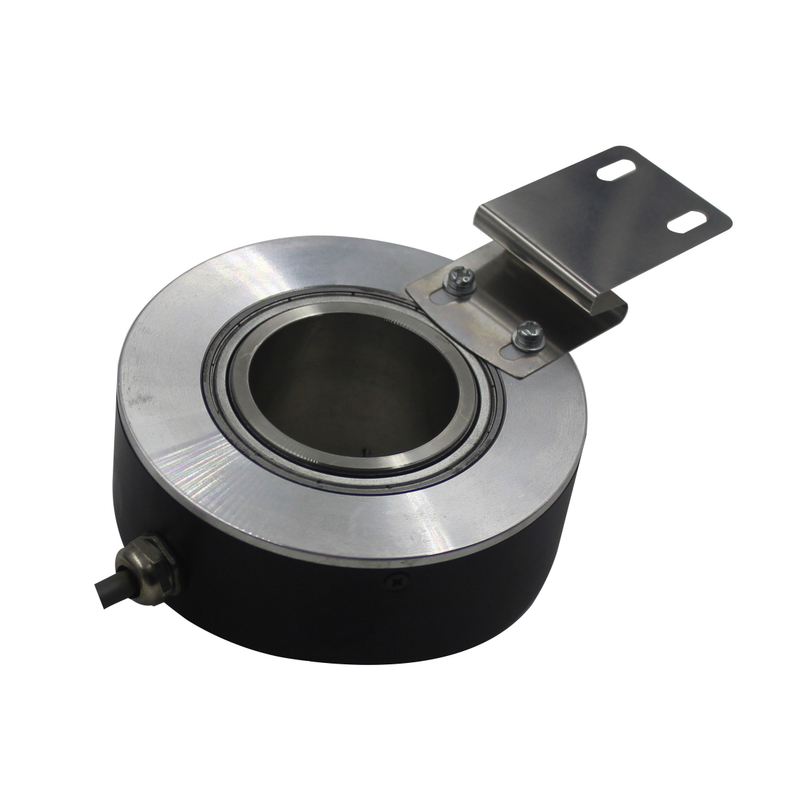

IHA9030 Hollow Shaft Encoder Rotary Encoder Outer diameter 90mm

Share to:

◆ Features
● 2 quadrature output channel (A&B) + index signal
● Resolution up to 2500 cpr
● Housing size: 90mm, hollow shaft dia: 30mm

  • IHA9030
  • YUMO
  • YM00000010

IHA9030 选型.png
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option


Technical Specifications

Parameter ValueNote
Supply VoltageDC5V / 7~24V (±10%)Max. response frequency is gated by max. rotation speed
Max. Response Frequency100 kHz
Max. Rotation Speed (*1)3000 rpm
Max. Current Consumption120mA (Unloaded)
Max. Rise-Fall Time200ns (Line Driver)
Max. Rise-Fall Time1us (Other Output Mode)
Operating Temperature-20 ~ 85° C (unfrozen)
Storage Temperature-20 ~ 85° C (unfrozen)
IP RatingIP40



Connection Table

Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Block

Color

Green

White

Yellow

Brown

Gray

Orange

Red

Black

Copper Web

DB15 plug

4

2

9




7

5

8

DB15 plug

5

3

2

7

6

8

1

4

9

Dimension
IHA 图纸.png
Output Waveform

output-waveform
