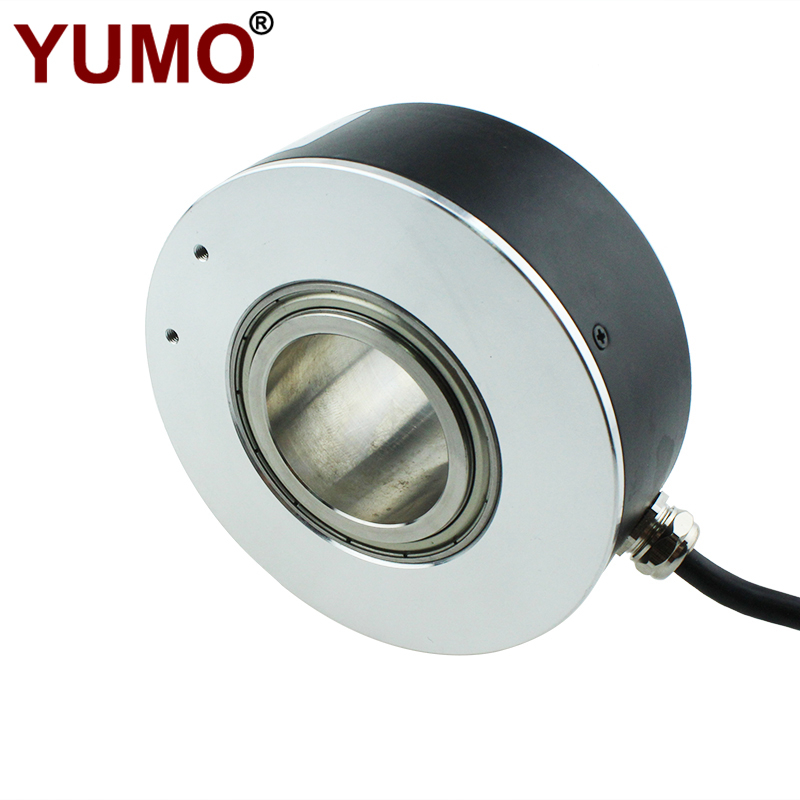

IHA9035-302G-1024-ABZ-5-24K
YUMO
Application
Used in area of automatic control, measurements, elevator, television, and printing and packing.
Feature
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Keyway fixation, easy to install and inner diameter changeable.
product description
| Type | IHA9035-302G-1024-ABZ-5-24K |
| Shaft diameter | 35mm |
| Output form | Line Driver7272 |
| Output signal | ABZ,A-B-Z phases |
| Cable lead out | Rubber edge output |
| Pulses | 1024P/R |
| Supply voltage | 5-24VDC |
| Load current | 60mA |
| Protection grade | IP50 |
Ordering Information
Technical Specifications
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Max Responding Frequency | 300kHz | 300kHz | 300kHz | 300kHz |
Mechanical Specification | ||||
Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
5000 | <1Nm | Radial:20N, Axial:10N | 50G/11-ms | 10G 10-2000Hz |
Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
4*10-8Kgm2 | -30~85℃ | -35~95℃ | IP50 | 500g |
Output Phase Shift
 | Wave Ratio: a+b=0.5T±0.1T c+d=0.5T±0.1T Z signal Width: Tz=1T±0.5T A,B phase absolute angle deviation ≤0.2T | Periodic Deviation ≤0.05T T=360°/N (N is the exact number of impulse of each spin ) |
Connection Table
Signal | A | B | Z | A(-) | B(-) | Z(-) | Vcc | GND | Block |
Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black | Copper Web |
DB15 plug | 4 | 2 | 9 | - | - | - | 7 | 5 | 8 |
DB15 plug | 5 | 3 | 2 | 7 | 6 | 8 | 1 | 4 | 9 |
