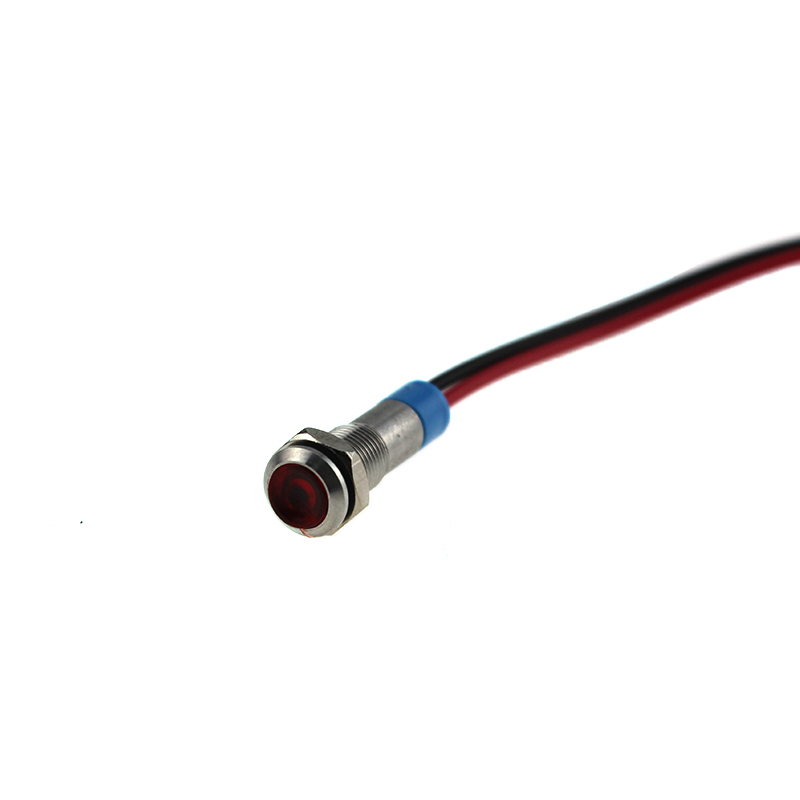

ABI06S
YUMO
40
China
Indicator
DC3V
LED Light
ABI | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Single code | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
| Parameter | ABI16C-P1 |
| Diameter | 6mm |
| Type | LED |
| Color | R G Y O B W P RG RB |
| Voltage Rating | ≤220V |
| Rated Current | About 15mA |
| The Crust Material | S/Stainless steel |
| IP Degree | IP68, IK10 |
Indicator Pictures:
