YUMO 12mm ON OFF Waterproof Small Switch Metal Self-locking Push Button

Switching Operation
Type	Diagram	sign	Explanation
1NO			Double breakpoint slow moving contact switch with two terminals
1NO 1NC			Single breakpoint snap change contact switch with three terminals
1NO 1NC			Double breakpoint snap change contact switch with four terminals

Switching Operation
Rated insulation Voltage			250
Heating current Ith			Temperature does not exceed the maximum allowed current
Rated voltage			12V	24V	110V	220V
Rated current	AC 50/60Hz	Resistive load	-	-	5A	3A
		Inductive load	-	-	3A	2A
	DC	Inductive load	5A	5A	1A	0.5A
		Inductive load	2A	2A	0.2A	0.1A
Contact material			Silver Plated Gold

Lamp Ratings
Lamp Type	LED lamp(AC/DC)
Rated Voltage	3V,6V,12V,24V,36V,110V,220V AC/DC
Rated Current	About 15mA
LED Color	R G Y O B W P
Life	40000hours

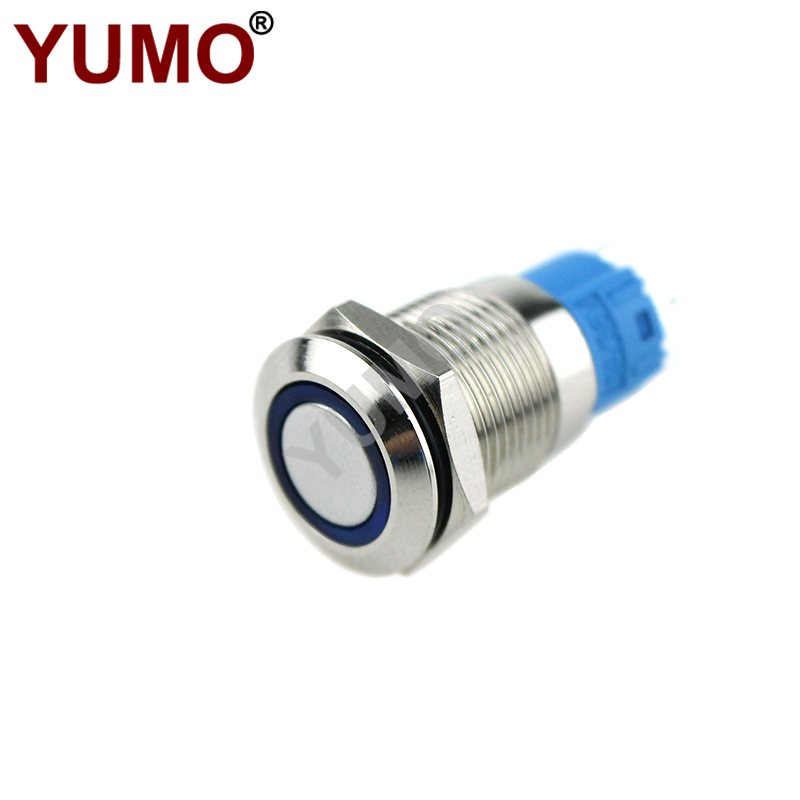

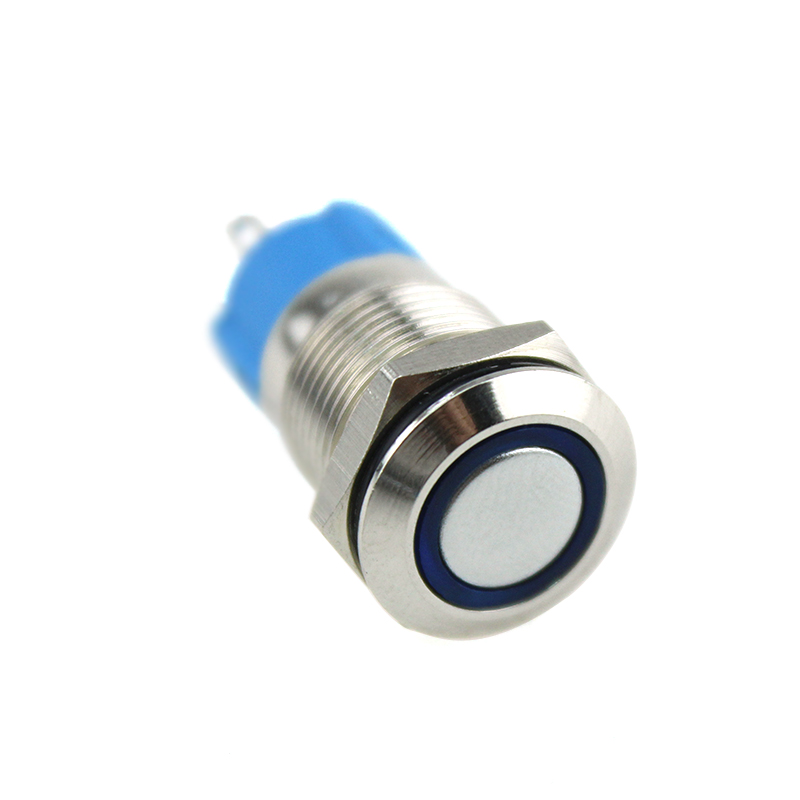

ABS12S-P1Z-E-B (1) ABS12S-P1Z-E-B (2) ABS12S-P1Z-E-B (3) ABS12S-P1Z-E-B (4) ABS12S-P1Z-E-B (5) ABS12S-P1Z-E-B (6)
