Product Description

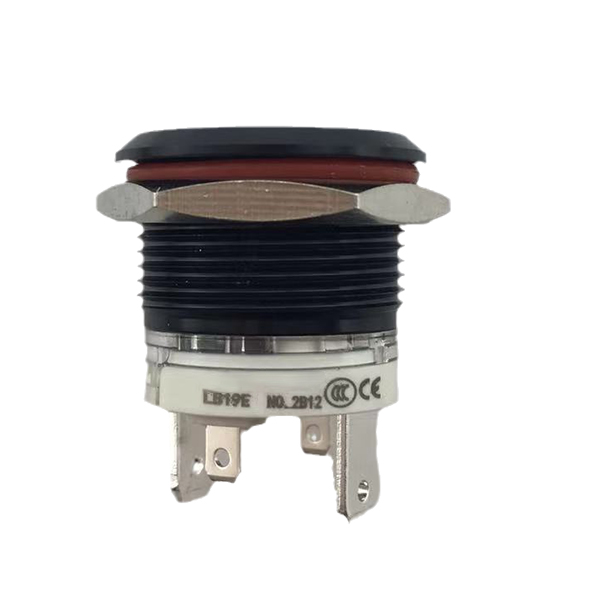

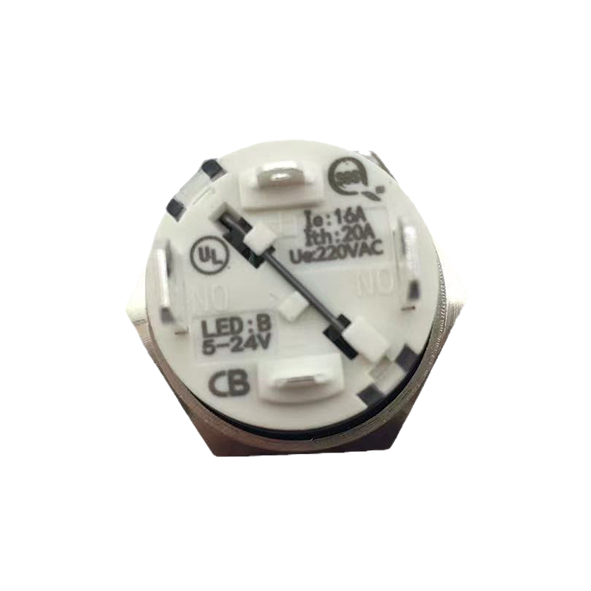

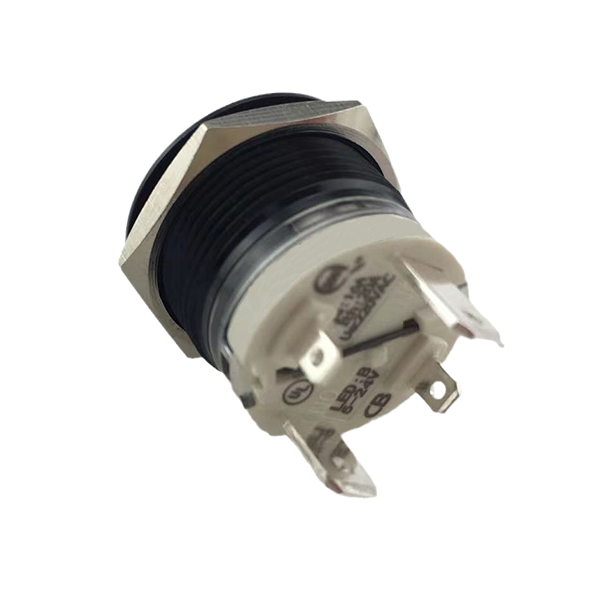

19mm Waterproof IP65 Self-locking Aluminum Oxide Black Metal Push Button Switch with Blue Light Ring

LB19E-A-B-L-5-24V (5)

LB19E-A-B-L-5-24V

This is aluminum oxide black oush button switch with blue LED light

LB19E-A-B-L-5-24V (2)

Parameters

Mounting Aperture	19mm
Serial Number	19E Metal push button switch
Head shape	Flat Head
Switch combination	Self-locking
Action form	1NO1NC Independent Pin
Waterproof level	IP65, customized IP67, anti-collision IK10
Working environment	-40°C~+85°C (non-vacuum state, without freezing)
Insulation resistance	≥1000MΩ
Contact resistance	≤50mΩ
LED voltage	9-24V, 220V / Customized: 3-8V,25-48V,110V
Resistive load	19E: AC-15:110V/220V: 16A ,DC-13:12V/24V: 16A
Inductive load	19E: AC-15:110V/220V: 4A ,DC-13:110V:4A
Glowing shape	Ring
Glow color	Blue

LB19E-A-B-L-5-24V (9) LB19E-A-B-L-5-24V (8)

push button switch led blue light ring aluminum oxide black waterproof push button switch IP65 warter proof switch push button metal push button switch

If you have any enquiry about quotation or cooperation,please feel free to email us at sale@yingselectric.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
