Product Description

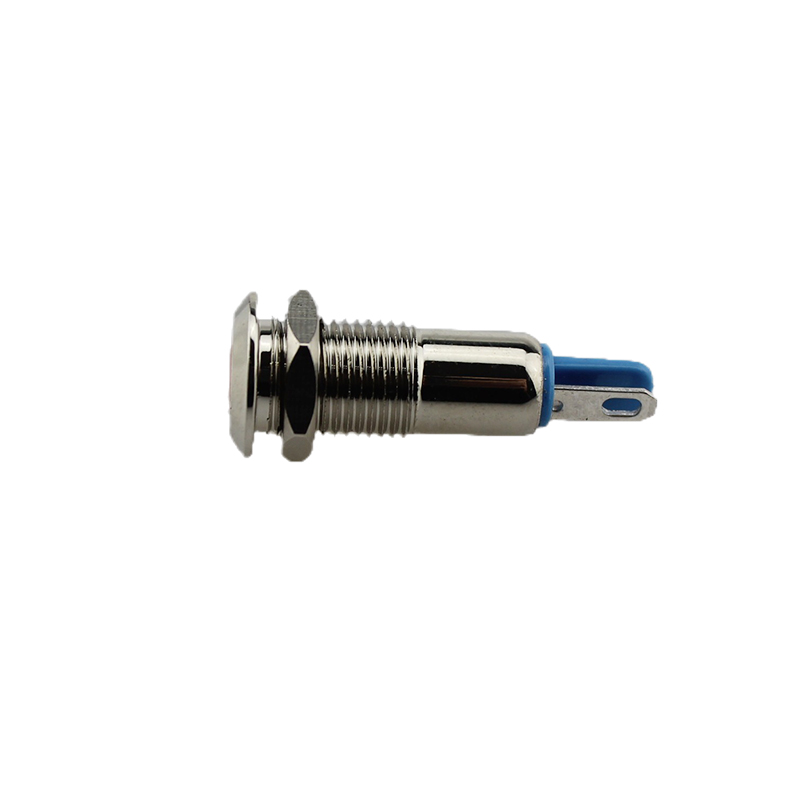

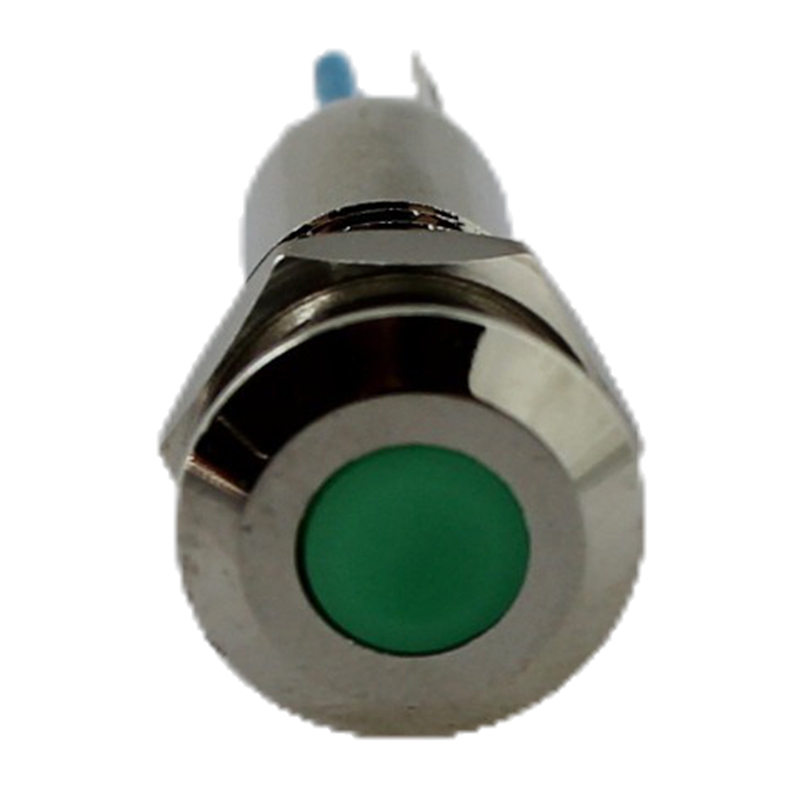

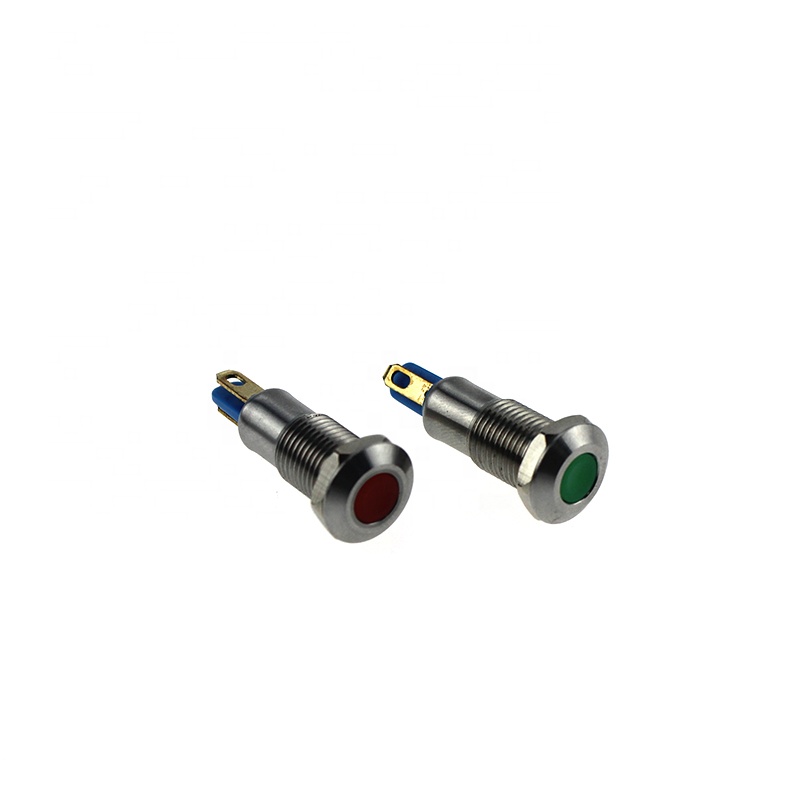

YUMO flat head Pin type 1NO copper nickel plated DC12V Metal button indicator light without wire

Appearance design beautiful
By highlighting the long life-span LED
Internal resistance
Ultra short installation size, installation diameter is complete

ABI	Size	Material	Head type	Connection mode	Lamp type	Lamp color	Lamp voltage
Single code	06mm	C:Chromium plated brass	P:flat	11:1NO1NOC	D:Center point	R:Red	AC/DC
	08mm		G:High	1:1NO/1NC (Welding)	D:Center point	G:Green	3V
	12mm		Q:Ball	1:1NO/1NC (Welding)	E:Ring lamp	Y:Yellow	6V
	16mm	A:Zinc alloy plated chromium	M:Mushroom	0:Two bit terminal	E:Ring lamp	B:Blue	12V
	19mm		M:Mushroom	0:Two bit terminal	C:Power mark	W:White	24V
	22mm			00:Four bit terminal	C:Power mark		36V
	25mm	S:Stainless steel		00:Four bit terminal	T:Custom patterm		48V
		S:Stainless steel			T:Custom patterm		110V
		P:Plastics					120V

Parameter	ABI08C-P1
Diameter	8mm
Type	LED
Voltage Rating	≤220V
Rated Current	About 15mA
Rated Current	About 15mA
The Crust Material	Chromium plated brass
The Crust Material	Chromium plated brass
IP Degree	IP68, IK10

voltage led equipment indicator lights motorcycle 12v metal led indicator light switch 12v led indicator lights light indicator metal led indicator light flat head indicator light NO/NC indicator light
