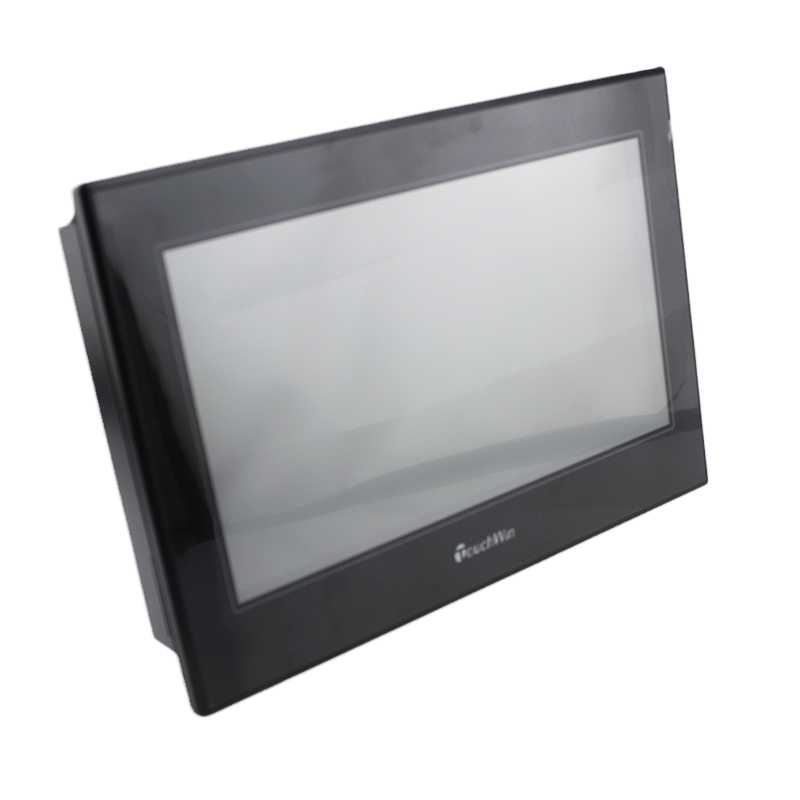

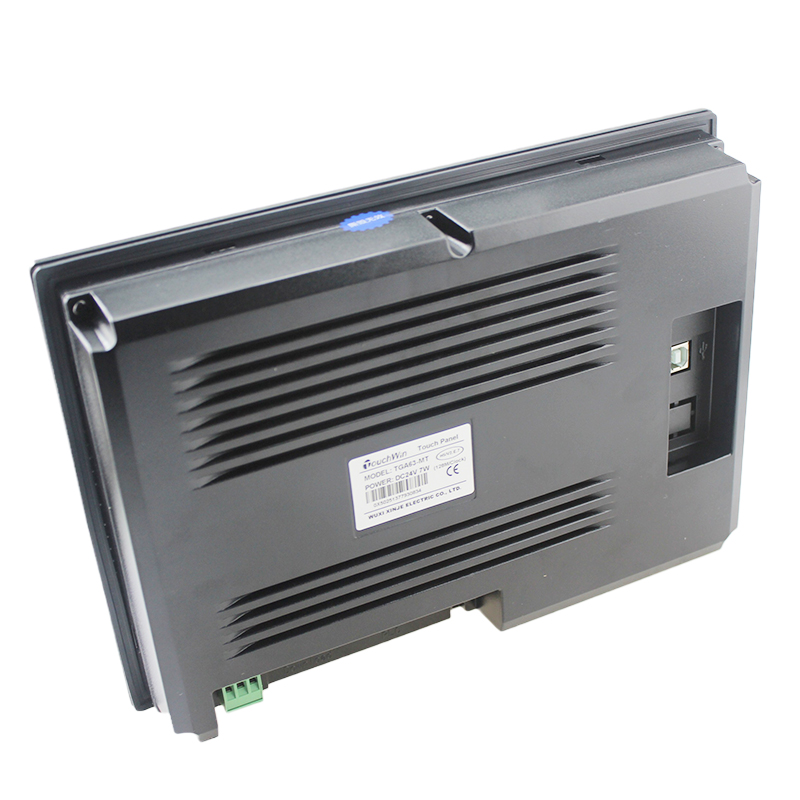

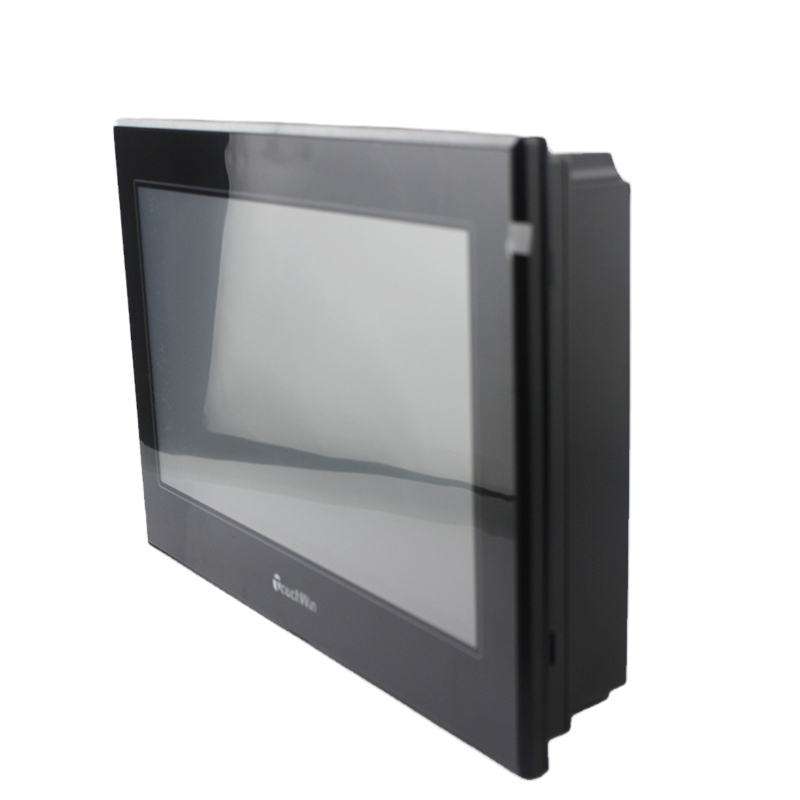

TG765-UT
Xinjie
1
China
Touch screen
Eview
24VDC
Panel Moungting
touchscreen
CE RoHS
Product Features:
The GREEN series cooperates with new generation free configuration software: Kinco DTools.
It supports four languages versions of Chinese, English, Korean and Russian.
The configuration design content supports all fonts installed in computer system.
It supports cloud monitoring. VNC achieves interoperation between HMI and HMI, HMI and PC, mobile phones(or other terminals), supports convenient components such as installment, PDF browsing and operating log records for designing guiding interface.
It is the humanized design and easy to use.
- Industrial grade CPU, 792MHz, 128M DDR3;
- 7", 16.77 million true colors;
- Perfect chose for general application;
- Sealing design of buckle for waterproof and oil resistance.
| Model | TG765-UT |
| Performance specification | |
| Display size | 7"TFT |
| Display area | 154.08mm(W)x85.92mm(H) |
| Resolution | 800*480 pixels |
| Display color | 16.7M color |
| Display angle of view | 70/70/50/70(left/right/up/down) |
| Contrast ratio | 500:1 |
| Backlight | LED |
| Brightness | 250cd/m² |
| Backlight life | More than 30000 hours |
| Touch panel | 4 line precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 792MHz |
| Storage | 128MB NAND Flash Memory+128MB DDR3 Memory |
| RTC | Built-in |
| Extensible memory | 1 USB Host |
| Print port | USB Host/serial port |
| Ethernet | None |
| Program download | USB Slave/U disk |
| Communication port | COM0:RS232/RS485/RS422;COM2:RS232 |
| Electrical specifications | |
| Input power supply | DC10V~DC28V,Built-in isolation power supply |
| Rated power | 3.6W @24V DC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ@500V DC |
| Hi-pot test | 500 VAC 1 minute |
| Structure specifications | |
| Shell material | Engineering plastic |
| Shape size | 204mm*150mm*34mm |
| Cutout size | 192mm*138mm |
| Weight | 0.5Kg |
| Environmental specifications | |
| Temperature of working environment | 0~50℃ |
| Humidity of working environment | 10~90%RH(non-condensing) |
| Storage environment temperature | -20~60℃ |
| Storage environment humidity | 10~90%RH(non-condensing) |
| Sine vibration test | 10~500Hz, 30m/s , X, Y, Z direction/hour |
| Cooling mode | Natural air cooling |
| Product certification | |
| Panel protection grade | Conforming to IP65 certification(4208-93) |
| CE authentication | EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
| Software | |
| Configuration software | Kinco DTools V3.3 and above version |
