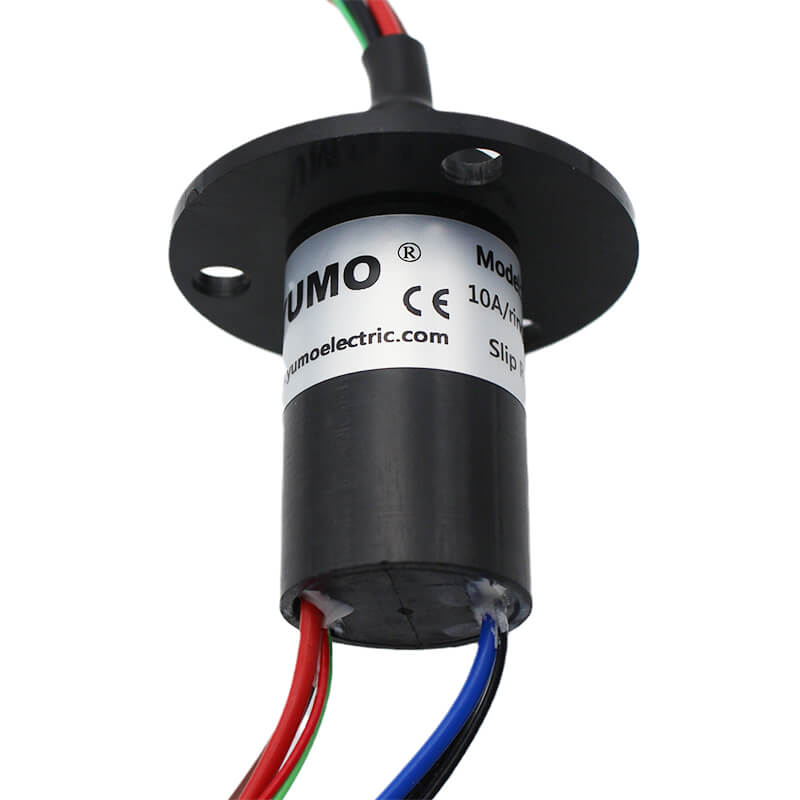

YUMO Slip Ring SNM022A-0410-03S OD22mm 10A Slip Ring

Standard Product: 10A/Ring The current can be made on customers request, e.g. combine 3 rigs to get 30 A
  • SNM022A-0410-03S
  • YUMO

YUMO Slip Ring SNM022A-0410-03S OD22mm 10A Slip Ring


Electric data:

Specification

Unit

Voltage

240VDC-240VAC

Current

Standard Product: 10A/Ring The current can be made on customers request, e.g. combine 3 rigs to get 30 A

Lead size

AWG28.AWG26:2A, AWG16:10A

Colour coded FPE insulated lead wires

Standard Lead length

250mm (other lengths on request)

High pot

500VAC@60HZ, 60s

Insulation Resistance

1000MΩ/500VDC

Dynamic contact Resistance

0.01Ω



Mechanical data:

Specification

Unit

Operate Speed

250 rpm

Temperature range

-20 - + 80

Contact material surface

Gold - gold

The steel bearing

The precise small steel ball bearing
