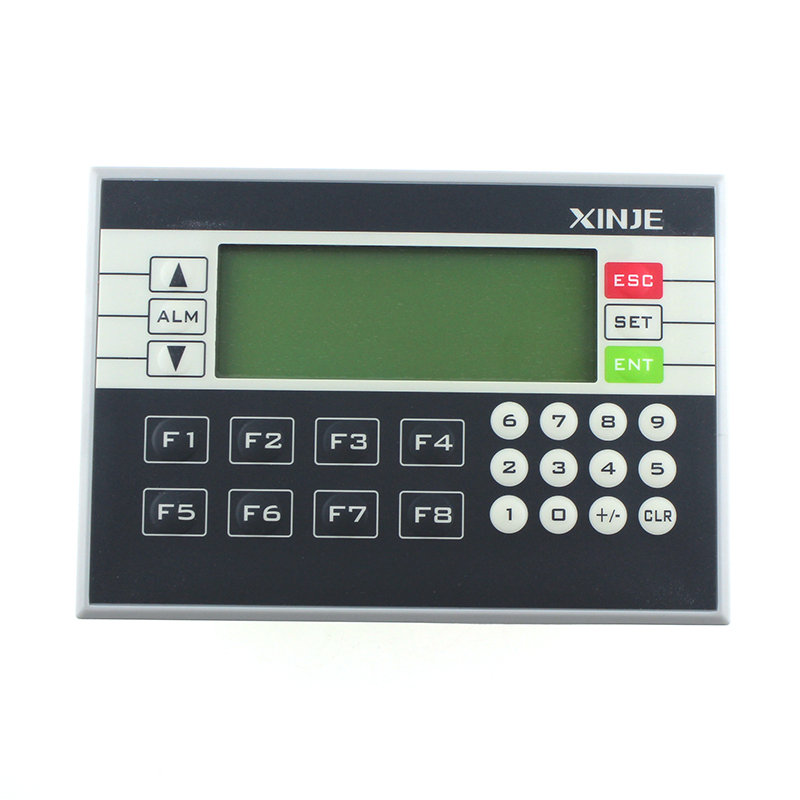

XP3-18t Xinje Series Programming Interface Text Panel PLC+HMI

Integrated PLC & HMI, owns the same functions as XC3 series,
3.7 inch blue LCD
Digital input:10 points/optical couple isolated
Digital output: 8 points/(relay,transistor)
Easy edit, abundant functionsv
LCD display: 192×64 pixel
use life up to 20000 hours
Functional keys up to 26
Delicacy and precise keys
Use the same cable to Compile for HMI and PLC
Compact configure, save more space
  • XP3-18RT

  • XINJE

Availability:

Specifications:

Input voltage

DC12V-DC24V

Current Consumption

Less than 10W (TYP2.0W)

Allowable Momentary Power-cut

Less than 20ms

Voltage Endurance

AC1000V-10mA 1 minute (signal and ground)

Insulated Resistance

DC500V-about 10MΩ (signal and ground)

Operation Temperature

0~50ºC

Storage Temperature

-10~60ºC

Ambient Humidity

20~85%(Non-condensing, dry bulb)

Vibration Resistance

10~25Hz (X,Y,Z directions for 30 minutes 2G)

Interference Rejection

Noise voltage: 1000Vp-p

Atmosphere

Free of corrosive gas

Protect Configuration

IP65F


Series Model:
XMP2-32T-E
XMP2-32RT-E
XMH3-30RT-E
XP1-18R-C
XP1-18RT-C
XP1-18T-C
XP2-18RT
XP3-18RT
XP3-18R
XP3-18T-C
XP3-16RT
XP3-16RT-E
XP-4AD2DA-BD2
XP-4AD-BD
XP-3AD3PT-BD2
XP3-2AD2PT-BD
