Product description
Integrate logic control, analog input/output, HMI in one unit
Digital input: 16 points; digital output: 14 points
analog expansions: can connect 2 BD at the same time
HMI screen is easy and obvious, rich functions, display area is touch screen
LCD display: 800*480 pixel (7 inch); 65536 true colors, LCD using life up to 20000 hours
Up to 12 function buttons, self-defined the button functions, accurate and precise
Support high speed counter, high speed pulse, external interruption
Download port has multi-function: HMI and PLC program downloading is the same cable
Features:

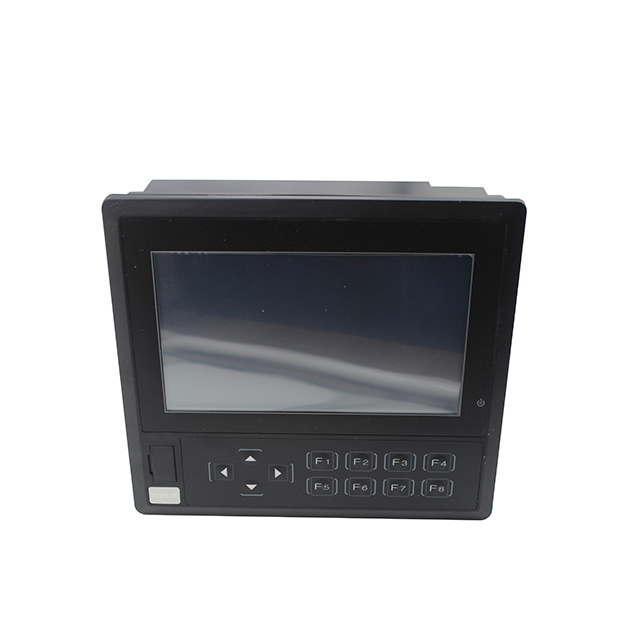

◆ XMH3-30＝ TH765 XC3
Integrate logic control, analog input/output, HMI in one unit
Digital input: 16 points, optocoupler isolation, the first two channels are high speed optocoupler
Digital output: 14 points, transistor/relay/transistor & relay mixed
Analog expansions: can expand 2 BDs, the type includes: XP-3AD2DA-BD2, XP-4AD2DA-BD2, XP-3AD3PT-BD2, XP-SD-BD2
HMI screen is easy and obvious, rich functions, display area is touch screen HMI
LCD display: 800*480 pixel (7 inch); 65536 true colors, LCD using life up to 20000 hours
Up to 12 function buttons, self-defined the button functions, accurate and precise
Support high speed counter, high speed pulse, external interruption
Download port has multi-function: HMI and PLC program downloading is the same cable
USB port high speed download for HMI program
Protection level is IP20
| Screen Property | Item | TFT true color 65536 color LCD |
| Screen Size | 7 inch |
| Using Life | Up to 20000 hours，ambient temperature is 25 degrees, 24 hours running |
| Display Area | 800*480 |
| Contrast | Non-adjustable |
| Words Setting | Chinese, English, German, and so on |
| External Dimension | Any font, any size |
| Touch panel | 4-wire resistor mode |
| Memory | Screen | 128MB |
| Port | Communication port | Support RS-232/RS-485 |
| Download port | RS-232 |
Dimension (unit: mm)
Product description
Integrate logic control, analog input/output, HMI in one unit
Digital input: 16 points; digital output: 14 points
analog expansions: can connect 2 BD at the same time
HMI screen is easy and obvious, rich functions, display area is touch screen
LCD display: 800*480 pixel (7 inch); 65536 true colors, LCD using life up to 20000 hours
Up to 12 function buttons, self-defined the button functions, accurate and precise
Support high speed counter, high speed pulse, external interruption
Download port has multi-function: HMI and PLC program downloading is the same cable
Features:
◆ XMH3-30＝ TH765 XC3
Integrate logic control, analog input/output, HMI in one unit
Digital input: 16 points, optocoupler isolation, the first two channels are high speed optocoupler
Digital output: 14 points, transistor/relay/transistor & relay mixed
Analog expansions: can expand 2 BDs, the type includes: XP-3AD2DA-BD2, XP-4AD2DA-BD2, XP-3AD3PT-BD2, XP-SD-BD2
HMI screen is easy and obvious, rich functions, display area is touch screen HMI
LCD display: 800*480 pixel (7 inch); 65536 true colors, LCD using life up to 20000 hours
Up to 12 function buttons, self-defined the button functions, accurate and precise
Support high speed counter, high speed pulse, external interruption
Download port has multi-function: HMI and PLC program downloading is the same cable
USB port high speed download for HMI program
Protection level is IP20
| Screen Property | Item | TFT true color 65536 color LCD |
| Screen Size | 7 inch |
| Using Life | Up to 20000 hours，ambient temperature is 25 degrees, 24 hours running |
| Display Area | 800*480 |
| Contrast | Non-adjustable |
| Words Setting | Chinese, English, German, and so on |
| External Dimension | Any font, any size |
| Touch panel | 4-wire resistor mode |
| Memory | Screen | 128MB |
| Port | Communication port | Support RS-232/RS-485 |
| Download port | RS-232 |
Dimension (unit: mm)
