ABS19S-C1-E-W-230
YUMO
China
maximum voltage: 230V
CE
Industrial Automation
Maximum current：5A

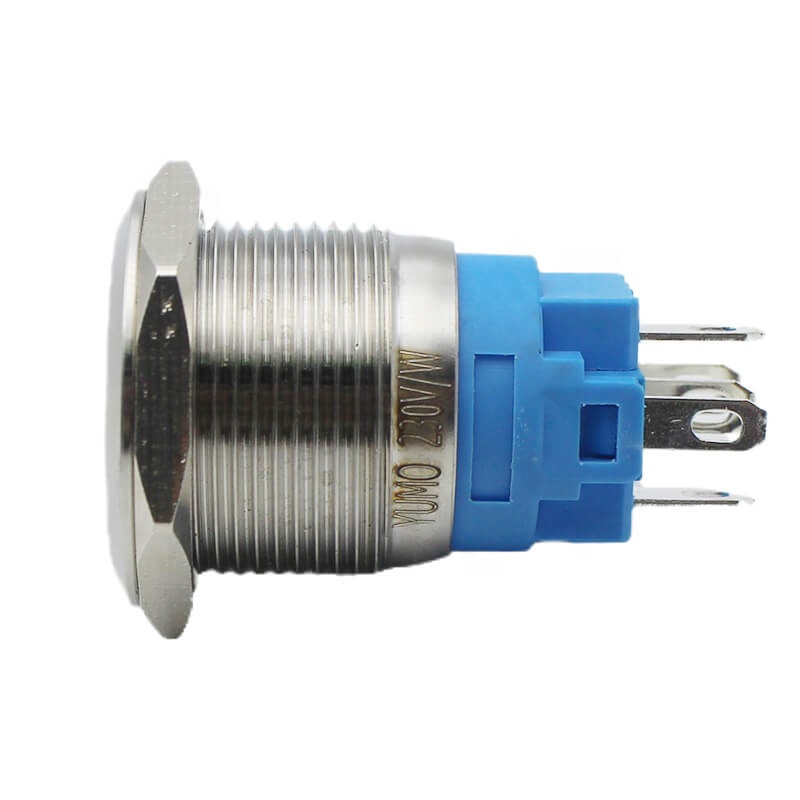

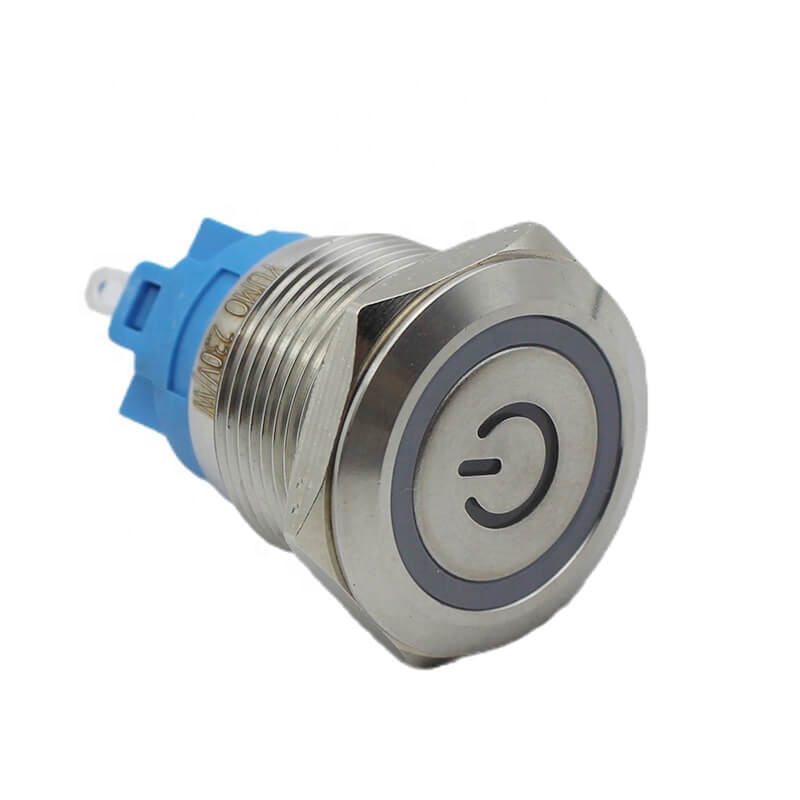

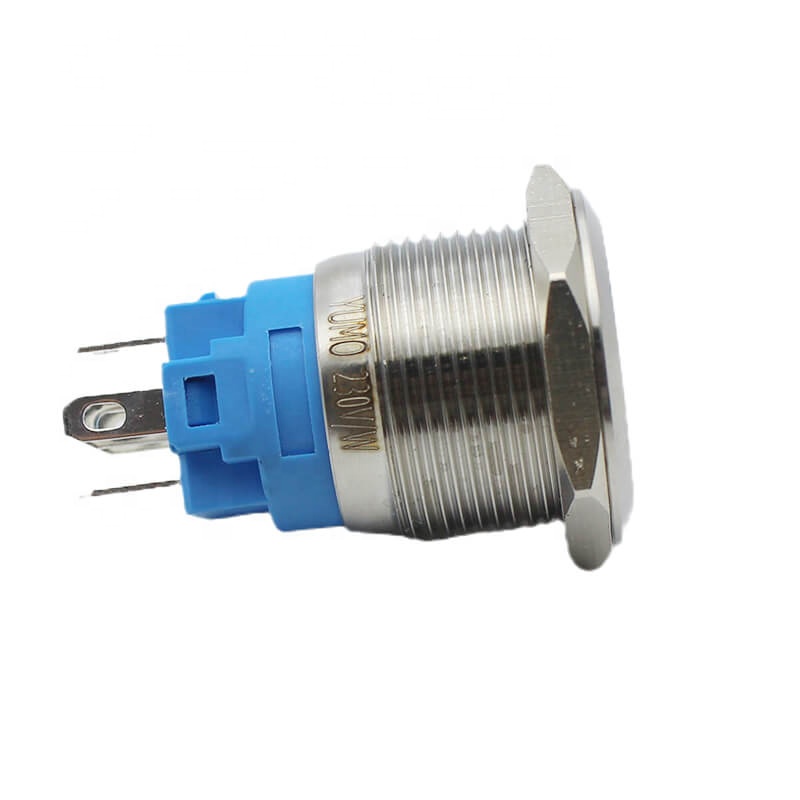

Waterproof IP67 1no1nc ring led momentary 230v metal push button switch with terminal pins
Metal Switch Features
1,With the stability of the connection performance,the use of security equipment.
2,Beautiful,high end ,fashion design
3,Medical grade imported stainless stell material,environmental is beautiful with no rust.
4,Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5,Compact design,compact size,can be used for any small equipment.
ABS | Size | Material | Head type | Switch combination | Work type | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm 08mm 12mm 16mm 19mm 22mm 25mm | C:Chromium plated brass A:Zinc alloy plated chromium S:Stainless steel P:Plastics | P:flat G:High Q:Ball M:Mushroom | 11:1NO1NC 22:2NO2NC 1:1NO/1NC (Welding) 10:2NO2NC(Welding) 0:1NO/1NC (terminal) 00:2NO2NC(terminal) | Z:Maintained | D:Center point E:Ring lamp C:Power mark T:Custom patterm | R:Red G:Green Y:Yellow B:Blue W:White | AC/DC 3V |
Switching Operation | |||
Type | Diagram | sign | Explanation |
1NO |  |  | Double breakpoint slow moving contact switch with two terminals |
1NO 1NC |  |  | Single breakpoint snap change contact switch with three terminals |
1NO 1NC |  |  | Double breakpoint snap change contact switch with four terminals |
Switching Operation | ||||||
Rated insulation Voltage | 250 | |||||
Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
Rated voltage | 12V | 24V | 110V | 220V | ||
Rated | AC | Resistive load | - | - | 5A | 3A |
Inductive load | - | - | 3A | 2A | ||
DC | Inductive load | 5A | 5A | 1A | 0.5A | |
Inductive load | 2A | 2A | 0.2A | 0.1A | ||
Contact material | Silver Plated Gold | |||||
Lamp Ratings | |
Lamp Type | LED lamp(AC/DC) |
Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
Rated Current | About 15mA |
LED Color | R G Y O B W P |
Life | 40000hours |
Waterproof IP67 1no1nc ring led momentary 230v metal push button switch with terminal pins
Metal Switch Features
1,With the stability of the connection performance,the use of security equipment.
2,Beautiful,high end ,fashion design
3,Medical grade imported stainless stell material,environmental is beautiful with no rust.
4,Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5,Compact design,compact size,can be used for any small equipment.
ABS | Size | Material | Head type | Switch combination | Work type | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm 08mm 12mm 16mm 19mm 22mm 25mm | C:Chromium plated brass A:Zinc alloy plated chromium S:Stainless steel P:Plastics | P:flat G:High Q:Ball M:Mushroom | 11:1NO1NC 22:2NO2NC 1:1NO/1NC (Welding) 10:2NO2NC(Welding) 0:1NO/1NC (terminal) 00:2NO2NC(terminal) | Z:Maintained | D:Center point E:Ring lamp C:Power mark T:Custom patterm | R:Red G:Green Y:Yellow B:Blue W:White | AC/DC 3V |
Switching Operation | |||
Type | Diagram | sign | Explanation |
1NO | | | Double breakpoint slow moving contact switch with two terminals |
1NO 1NC | | | Single breakpoint snap change contact switch with three terminals |
1NO 1NC | | | Double breakpoint snap change contact switch with four terminals |
Switching Operation | ||||||
Rated insulation Voltage | 250 | |||||
Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
Rated voltage | 12V | 24V | 110V | 220V | ||
Rated | AC | Resistive load | - | - | 5A | 3A |
Inductive load | - | - | 3A | 2A | ||
DC | Inductive load | 5A | 5A | 1A | 0.5A | |
Inductive load | 2A | 2A | 0.2A | 0.1A | ||
Contact material | Silver Plated Gold | |||||
Lamp Ratings | |
Lamp Type | LED lamp(AC/DC) |
Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
Rated Current | About 15mA |
LED Color | R G Y O B W P |
Life | 40000hours |
