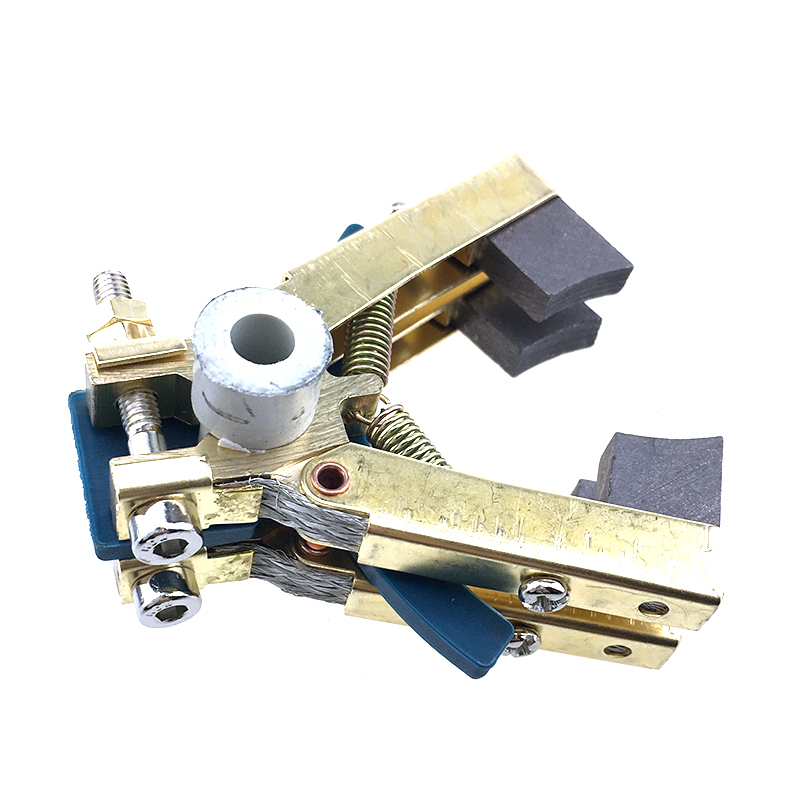

SRH205034-2 dia 50mm 2rings hole 20mm Carbon brush holder slip ring

The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
  • SRH205034-2
  • YUMO


Traditional slip ring, inner diameter is 20mm,
body diameter is 50mm,height is 34mm,
2rings, 10A/ring. slip ring+carbon brush+holder


Technical Parameters
ring 2 ring
Current 10A/ring
Voltage 380VAC
Insulation resistance ≥500MΩ/500VDC
temperature  -20℃~100℃


Dimension

2 rings
