APB Series PLC,

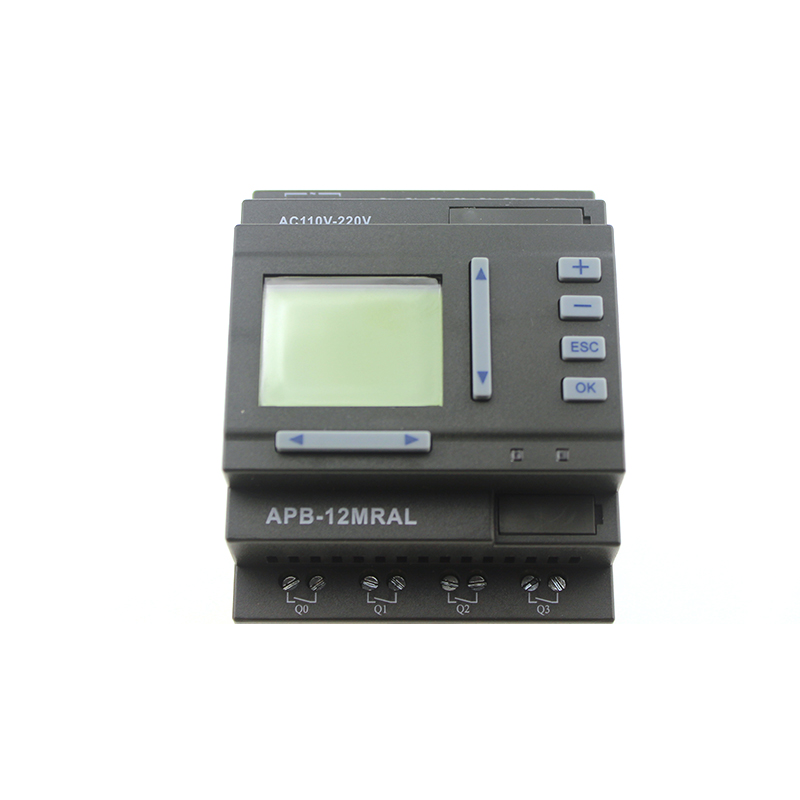

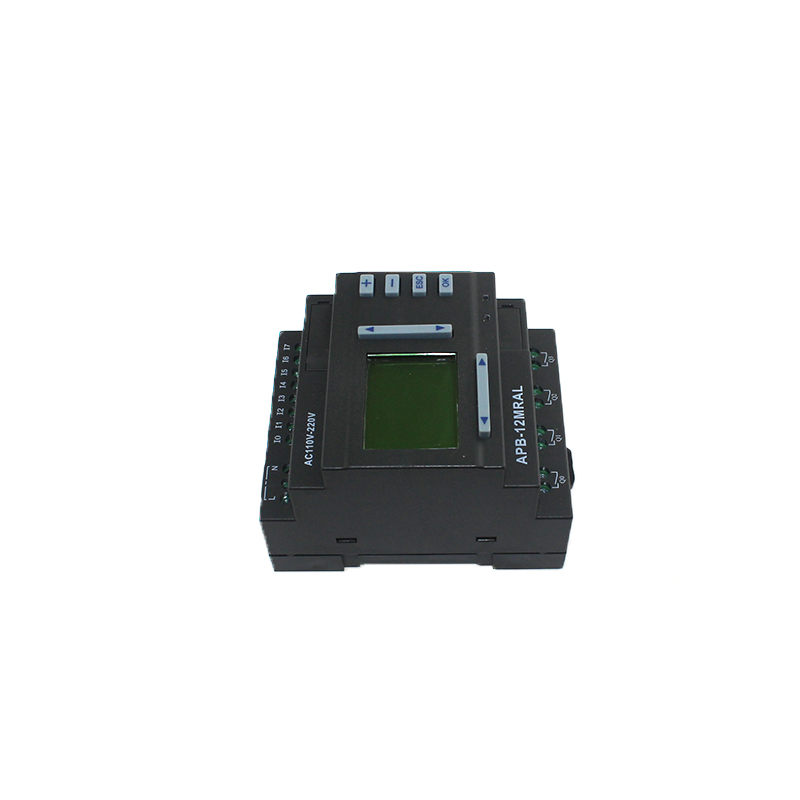

APB-12MRAL AC100V-240V 8 points AC input, 4 points relay output, with LCD
Features:
1,Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal max. configuration: 7 I/O
extension modules, 1 voice module, and 1 SMS module;
2,Program memory capacity: 320 FBDs, EEPROM;
3,It is allowed to place a Li-ion battery to power the clock;
4,Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs
4-20mA and 2 analog outputs 4-20mA;
5,High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;
6,MODBUS protocol, and can be connected to SH-300 (Text Panel);
7,New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.;
Technical Parameters:
Item | APB-12MRD(L) | APB-12MTD(L) | APB-12MGD(L) | APB-22MRA(L) | APB-24MRDL |
APB-22MRD(L) | APB-22MTD(L) | APB-22MGD(L) | APB-12MRA(L) |
|
Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) |
Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) |
Ambient Temperature | -10℃~+55℃ |
Storage Temperature | -40℃~+70℃ |
Ambient Humidity | 5%~95%RH |
Degree of Protection | IP20(Non-waterproof) |
Installation | Fixing with M3 screws or Standard DIN rail mounting |
Dimensions (mm) | 71*99*58.5(12 points);126*99*58.5(22 points);126*99*58.5(24 points) |
Programming Language | FBD |
Points | 12 points/22 points/24 points/can support 7 I/O extension modules |
Memory Capacity | 320 FBDs |
Filtering Duration of Input Signal | It can be set to improve the stability of signal |
Real-time Clock | 160h,can place a Li-ion battery if it is necessary |
Password Protection | Multiple passwords protection |
High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz |
Analog Operation | At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA |
Power Failure Protection | Yes |
Simulate Monitoring | Yes |
Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces |
Baud Rate | 9600bps |
Communication Protocol | MODBUS RTU |
Power Supply |
Rated Voltage | DC12-24V | DC12-24V | DC12-24V | AC110-220V | DC12-24V |
Permissible Range | DC11-28V | DC11-28V | DC11-28V | AC85V-265V | DC11-28V |
Power Consumption | 3.5w | -- | -- | -- | -- |
Digital Input |
Input Type | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP |
Input Signal 0 | DC0-5V | DC0-5V | DC0-5V | AC0-70V | DC0-5V |
Input Signal 1 | DC8.5-28V | DC8.5-28V | DC8.5-28V | AC85-265V | DC8.5-28V |
Isolation | Non-isolation | Non-isolation | Non-isolation | Photoelectric isolation | Non-isolation |
Isolated Group | -- | -- | -- | 14 | -- |
Isolated Voltage | -- | -- | -- | 2500/5000Vr.m.s | -- |
Digital Output |
Output Type | Relay | Transistor(NPN) | Transistor(PNP) | Relay | Relay |
Rated Voltage | 24VDC/220VAC | 24VDC | 24VDC | 24VDC/220VAC | 24VDC/220VAC |
Isolation Method | Relay isolation | - | - | Relay isolation | Relay isolation |
Analog Input |
Input Type | (DC0-10V)/8 inputs | (DC0-10V)/8 inputs | (DC0-10V)/8 inputs | -- | (4-20mA)/2 inputs |
(DC0-10V)/12 inputs | (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | (DC0-10V)/12 inputs |
Analog Output |
Output Type | -- | -- | -- | -- | 4-20mA/2inputs |
A/D Conversion | -- | -- | -- | -- | 12 bits |
Isolation | Non-isolation | Non-isolation | Non-isolation | Non-isolation | Non-isolation |
High-speed Operation |
| 4 inputs /10KHz | 4 inputs /10KHz | 4 inputs /10KHz | -- | 4 inputs /10KHz |
|
Input Type | Support single-phase counter and two-phase counter | Support single-phase counter and two-phase counter | Support single-phase counter and two-phase counter | -- | Support single-phase counter and two-phase counter |
|
| 2 outputs / 10KHZ | 2 outputs /10KHZ |
|
|
|
|
|
|
Output Type | -- | Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse | Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse | -- | -- |
Type
Note: The economical type is supplied without LCD panel, and the basic type is supplied with LCD panel. |
APB-12MRD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points relay output |
APB-12MTD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points NPN transistor output |
Q2、Q3 can be high-speed output ports |
APB-12MGD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points PNP transistor output |
Q2、Q3 can be high-speed output ports |
APB-22MRA(L) | AC100V-240V | 14 points input | 8 points relay output |
APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output |
|
APB-22MTD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points NPN transistor output |
Q2、Q3 can be high-speed output ports |
APB-22MGD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points PNP transistor output |
Q2、Q3 can be high-speed output ports |
APB-24MRDL | DC12V-24V | 2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports | 6 points relay output + 2 analog outputs |
APB-22ERA | AC100V-240V | 14 points digital input | 8 points relay output |
APB-22ERD | DC12V-24V | 14 points digital input | 8 points relay output |
APB-22ETD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
APB-22EGD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
Auxiliary Module
APB-SMS | supports I/O control and SMS alarm, as well as receives and sends short message in another mode |
APB-EXPMC | applied in the long-distance signal transmission interface and constitutes a nerwork with 485 bus |
APB-EXNET | use cable network and TCP/IP protocol to link the remote netw |
