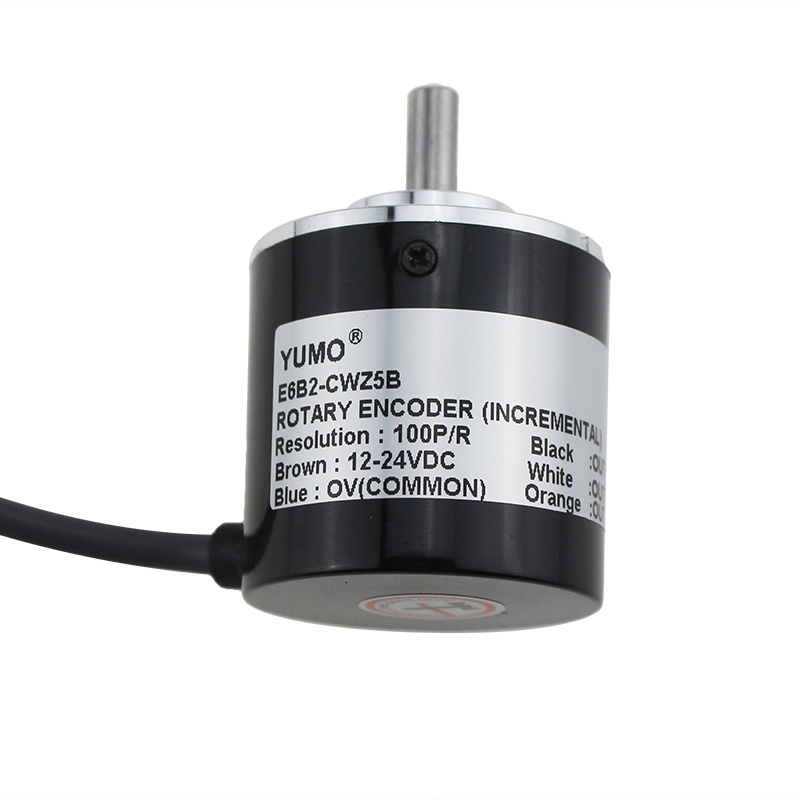

New Hot Sale E6B2-CWZ5B 100 PPR PNP Open Collector Output Solid Shaft Incremental Encoder

General-purpose Encoder with External Diameter of 40 mm

Incremental model
External diameter of 40 mm.
Resolution of up to 2,000 ppr.

  • E6B2-CWZ5B 100PPR
  • YUMO

General-purpose Encoder with External Diameter of 40 mm

  • Incremental model

  • External diameter of 40 mm.

  • Resolution of up to 2,000 ppr.

Ratings and Specifications

ModelE6B2-CWZ5B
Power supply voltage12 VDC −10% to 24 VDCn +15%, ripple (p-p): 5% max.
Current consumption100 mA max
Resolution (pulses/rotation)100, 200, 360, 500, 600, 1,000, 2,000
Output phasesPhases A, B, and Z
Output configurationPNP open-collector output
Maximum response frequency50 kHz
Maximum permissible speed6,000 r/min
Ambient temperature range-10~70°C
Degree of protectionIP50
MaterialsCase: ABS, Main unit: Aluminum, Shaft: SUS420J2
