Lm6 M6 Inductive proximity switches sensors

Share to:
  • Lm6
  • YUMO
  • YM000003
外形尺寸

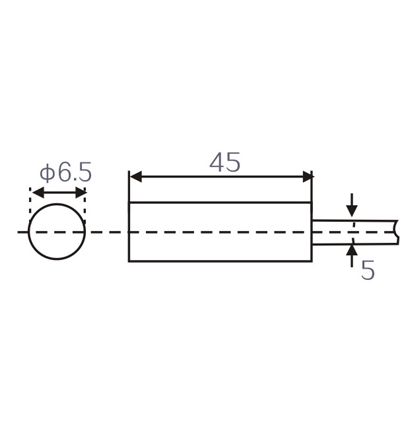

OVERALL DIMENSIONS
Lm6 M6 Inductive proximity switches sensors

     检测距离 DETECTION DISTANCE                              1mm



F
l
u
s
h
直流
DC
10-
30
VDC


交流
AC
90-
250
VAC
NPN NO LM6-3001NA
NC LM6-3001NB
NO+NC
PNP NO LM6-3001PA
NC LM6-3001PB
NO+NC
二线制
two wire
system
NO LM6-3001LA
NC LM6-3001LB
SCR
可控硅
Control-
lable
silicon
NO LM6-2001A
NC LM6-2001B
NO+NC
继电器输出Relay output

     检测距离 DETECTION DISTANCE                          1.5mm




F
l
u
s
h
直流
DC
10-
30
VDC


交流
AC
90-
250
VAC
NPN NO LM6-3002NA
NC LM6-3002NB
NO+NC
PNP NO LM6-3002PA
NC LM6-3002PB
NO+NC
二线制
two wire
system
NO LM6-3002LA
NC LM6-3002LB
SCR
可控硅
Control-
lable
silicon
NO LM6-2002A
NC LM6-2002B
NO+NC
继电器输出Relay output
输出电流
Controloutput
DC 200mA
SCR/继电器 Relay
  输出电压降Output voltagc dropDC/AC 直流(NPN PNP)3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3VAC<10V
  消耗电流Consumption current 直流(NPN PNP)DC 12V8mA24V15mA、交流AC 10mA以下DC<15mAAC<10mA
  标准检测物体Standard detected object 8X8X1(A3iron)
  重复精度Repeated precision 0.01
  响应频率DC/AC 500Hz
  工作环境温度Working environment temperature -25+75
  绝缘电阻Insulation resistance ≥30MΩ
  外壳材料Shell material 不锈钢 Stainless steel
  防护等级Protection grade IP67
  可替代国内型号Altemative model at home and abroad
