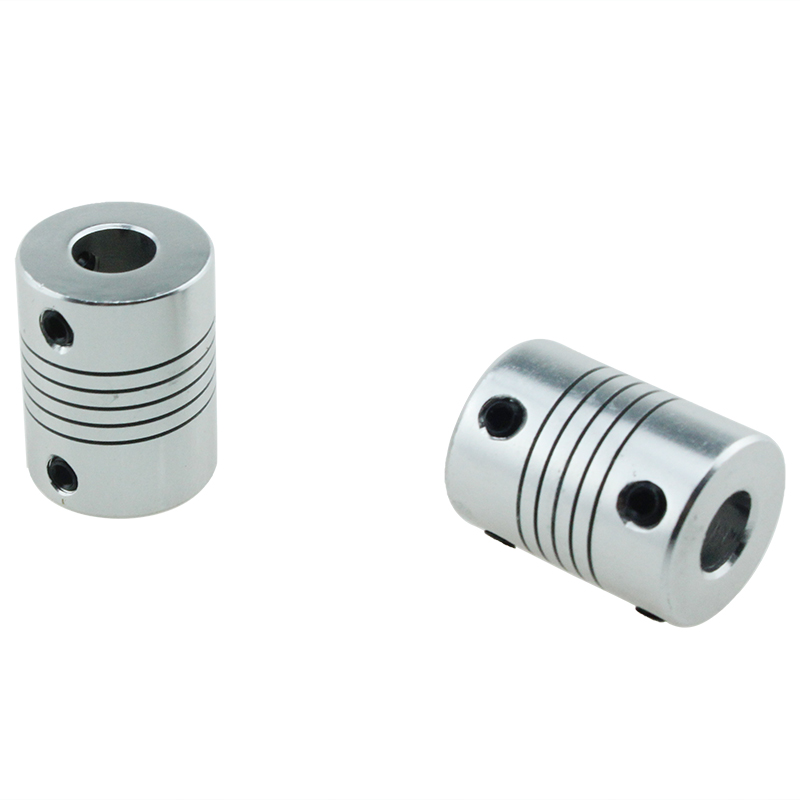

LR-D-D15L20 8*8 Hole Diameter Thread Type Flexible Shaft Rotary Encoder Clamp Elastic Coupling

industrial motor shaft couplings; Large parallel misalignment capacity; High torque capacity; Large shaft diameters; Keyways available.                                                                                            1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy

LR-D-D15L20 8*8 Hole Diameter Thread Type Flexible Shaft Rotary Encoder Clamp Elastic Coupling

Use and characteristics
Integral molded metal elastic coupling.
High elasticity angle error compensation.
The elastic action compensates the radial, angular, axial deviation.
Zero rotation gap.

Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy

Product size


Size control table



Proiect type

D

(mm)

L

(mm)

D1-D2

(mm)

M

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

Screw tightening torque(n.m)

LR-D-D15L20 15 20 3-8 M3.0 2.5 2 0.4 1.2
LR-D-D19L25 19 25 6-10 M3.0 3 2 0.4 1.2
LR-D-D25L30 25 30 8-12 M4.0 4 2 0.4 2.5
LR-D-D30L35 30 35 8-18 M4.0 4 2.5 0.5 2.5
LR-D-D35L40 35 40 8-22 M5.0 5 2.5 0.5
LR-D-D40L45 40 45 10-28  M6.0 6 3.5 0.6



Technical parameter

Proiect type

Maximum shaft hole

(mm)

Rated torque

(n.m)

Maximum torque

(n.m)

Maximum speed

(rpm)

Moment of inertia

(Kg.m²)

Allow eccentricity

(mm)

Allowable declination

(°)

LR-D-D15L20 8 0.5 1 30000 2.5*10-7

0.05

0.5
LR-D-D19L25 10 1 2 25000 5.8*10-7 0.05 0.5
LR-D-D25L30 12 1.5 3 18000 1.8*10-6 0.05 0.5
LR-D-D30L35 18 2 4 16000 4.7*10-6 0.05 0.5
LR-D-D35L40 22 3 6 14000 1.1*10-5 0.05 0.5
LR-D-D40L45 28 6 12 12000 2.3*10-5 0.05 0.5
