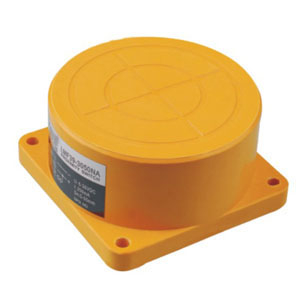

LMF39 Angular column inductive proximity switch, detection distance 50mm

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice
  • LMF39

  • YUMO

  • YM0000000046

Availability:

LMF39 Panel installation inductive proximity switch


Sensing range: 1-50mm inductive proximity switch. China YUMO offer customized design!

LMF39 Inductive proximity switch
Detecting rang 1-50mm YUMO part no.
Non-flush DC 6-36V NPN NO LMF39-3050NA
NC LMF39-3050NB
NO+NC LMF39-3050NC
PNP NO LMF39-3050PA
NC LMF39-3050PB
NO+NC LMF39-3050PC
2 Wires NO LMF39-3050LA
NC LMF39-3050LB
AC 90-250V SCR NO LMF39-2050A
NC LMF39-2050B

NO+NC LMF39-2050C
Relay output LMF39-2050JC
LMF39 Sensor Characteristics
Output current DC 200mA
SCR/relay 300mA/2A
Output voltage drop DC≤3.9V /DC(Two wire system)≤3V/ AC≤10V
Consumption current DC≤15mA/ /AC≤10mA
Standard detected object 120×120×1(A3 Iron)
Repeated precision 0.5
Response Frequency 50Hz/10Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50MΩ
Shell material ABS Resin * Glass fiber reinforced plastic
Protection grade IEC Standard IP65
Alternative model  TCD-2050□


LMF39 proximity switch Dimension
