LMF25 Angular Column inductive sensor

Share to:

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice.

  • LMF25
  • YUMO
  • YM0000002

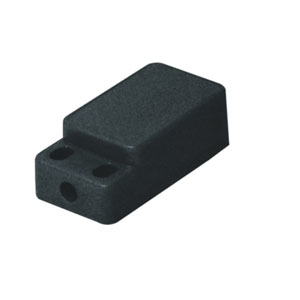

LMF25 Angular Column inductive proximity switch


                         OVERALL DIMENSIONS

LMF25 Angular Column inductive proximity switch




      DETECTION DISTANCE                           5mm

Non-embedded



Flush


DC
10-
30
VDC


AC
90-
250
VAC

NPN

NO

LM25-3005NA

NC

LM25-3005NB

NO+NC

LM25-3005NC

PNP

NO

LM25-3005PA

NC

LM25-3005PB

NO+NC

LM25-3005PC


two wire
system

NO

LM25-3005LA

NC

LM25-3005LB

SCR
Control-
lable
silicon

NO

LM25-2005A

NC

LM25-2005B

NO+NC


Relay output



Controloutput

DC

200mA

SCR/ Relay

500mA

  Output voltagc dropDC/AC

DC (NPN PNP) type 3V or

less, second line: 3.9V or

less, AC 10V or less

DC<3V, AC <10V

Consumption current

(NPN PNP)DC 12V when

 8mA24V when 15mA

AC 10mA or less

DC<15mAAC<10mA

  Standard detected object

18X18X1(A3iron)

  Repeated precision

0.05

  DC/AC

500Hz/10Hz

  Working environment temperature

-25℃+70℃

  Insulation resistance

50MΩ

Shell material

ABS Resin

  Protection grade

IP67

  Altemative model at home and abroad
