Product Description


Note:

1, Please contact sales representative to confirm the correctness and availability of the part number

2, Line Driver is only available with 5VDC,12VDC option

Technical Specifications

Electrical Specification
Output circuit	Open collector	Voltage output	Push pull output	Line driver output
Power Vcc	5~30	5~30	5±0.25 5~30	5±0.2512V
Current	≤100mA	≤100mA	≤100mA	≤120mA
Load current	40mA	40mA	40mA	60mA
High-level output	Min Vcc*70%	Min Vcc-2.5V	Min Vcc-1.5V	Min 3.4V
Low-level output	Max 0.4V	Max 0.4V	Max 0.8V	Max 0.4V
Rise Time Tr	Max 1us	Max 1us	Max 1us	Max 200ns
Fall Time Tr	Max 1us	Max 1us	Max 1us	Max 200ns
Max Responding Frequency	20kHz	20kHz	20kHz	20kHz
Mechanical Specification
Max speed(r/min)	Working Temperature	Storage Temperature	Protection Grade	Weight
600	-25~70℃	-25~85℃	IP50	750g

Dimensions(mm)

ISMM1469 diemension.jpg

Connection Table

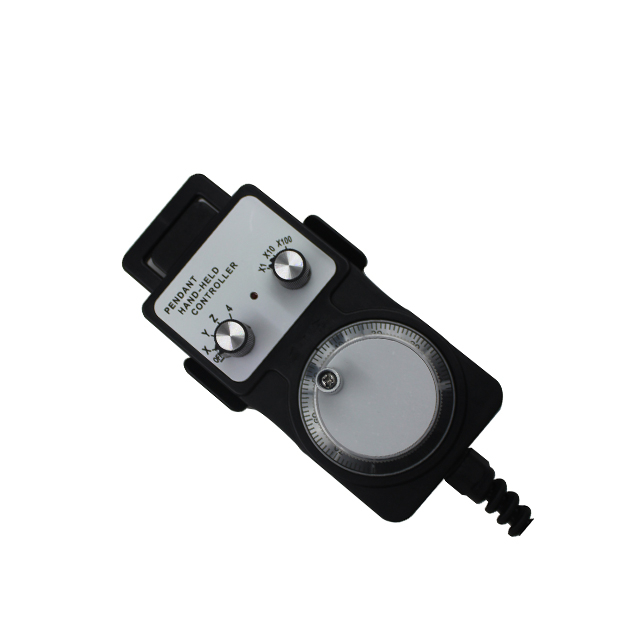

handwheel encoder 69mm Manual Pulse Generator Handy Pulse Generator 5VDC Manual Pulse Generator 100 P/R Manual Pulse Generator

If you have any enquiry about quotation or cooperation,please feel free to email us at sale@yingselectric.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
