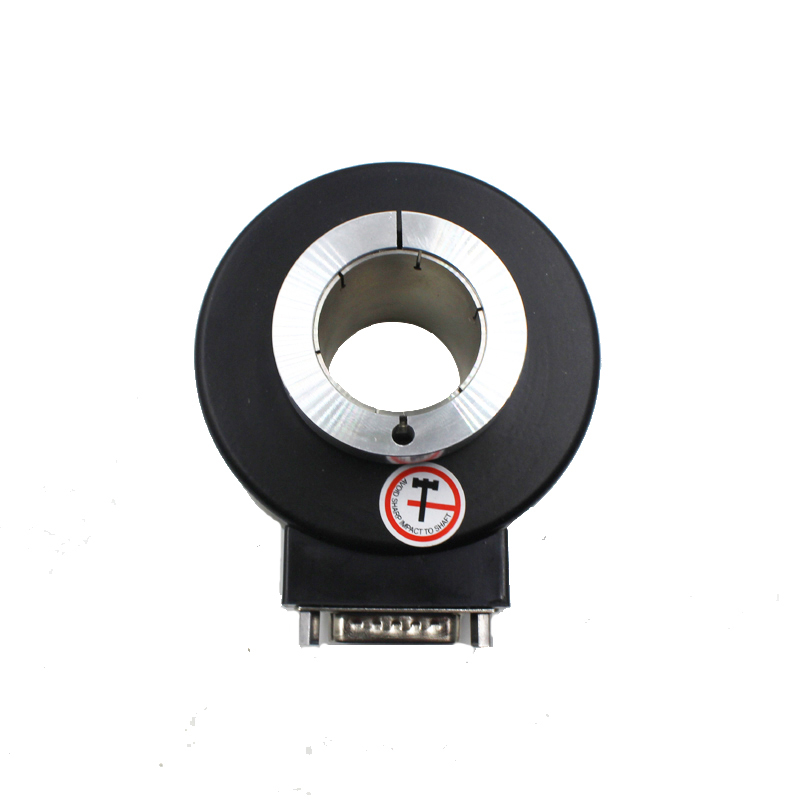

IHA8030 Outer Diameter 80mm hollow shaft encoder

Share to:

Features
● 2 quadrature output channel (A&B) + index signal
● Resolution up to 2500 cpr
● Housing size: 80mm, hollow shaft dia: 30mm

  • IHA8030
  • YUMO
  • YM0000009

Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option



Technical Specifications

Parameter ValueNote
Supply VoltageDC5V / 7~24V (±10%)Max. response frequency is gated by max. rotation speed
Max. Response Frequency100 kHz
Max. Rotation Speed (*1)3000 rpm
Max. Current Consumption120mA (Unloaded)
Max. Rise-Fall Time200ns (Line Driver)
Max. Rise-Fall Time1us (Other Output Mode)
Operating Temperature-20 ~ 85° C (unfrozen)
Storage Temperature-20 ~ 85° C (unfrozen)
IP RatingIP40



Connection Table


Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Block

Color

Green

White

Yellow

Brown

Gray

Orange

Red

Black

Copper Web

DB15 plug

4

2

9

7

5

8

DB15 plug

5

3

2

7

6

8

1

4

9



Dimension


Output Waveform

output-waveform


If you have any enquiry about quotation or cooperation,please feel free to email us at sale@yingselectric.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
