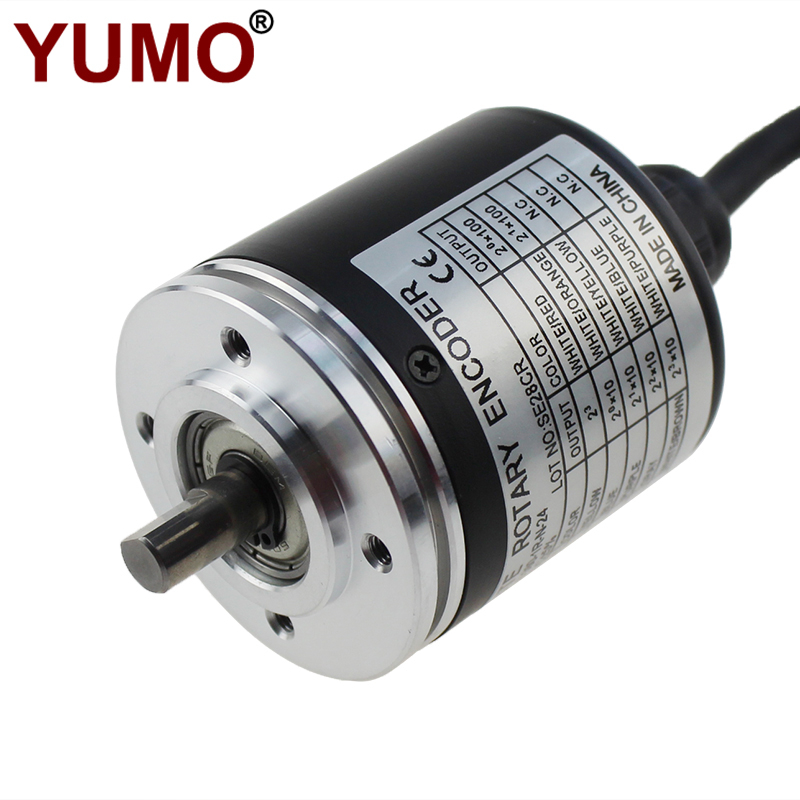

Compact size of external diameter ø50mm
Various output code: BCD, Binary, Gray code
Various and high resolution(720, 1024 divisions)
Protection structure IP64(Dust-proof, Oil-proof)
| Specifi cations | |
| Series | Diameter ø50mm, shaft type |
| Shaft diameter | ø8mm |
| Pulse/ 1Revolution | 360ppr |
| Output code | BCD Code |
| Revolution direction | Output value increase at CCW direction |
| Output | NPN open collector output |
| Power supply | 12-24VDC±5% |
| Ambient temperature | -10~70℃, Storage: -25~85℃ |
| Protectio | IP64 |
| Dimensions (mm) | |
 | |
