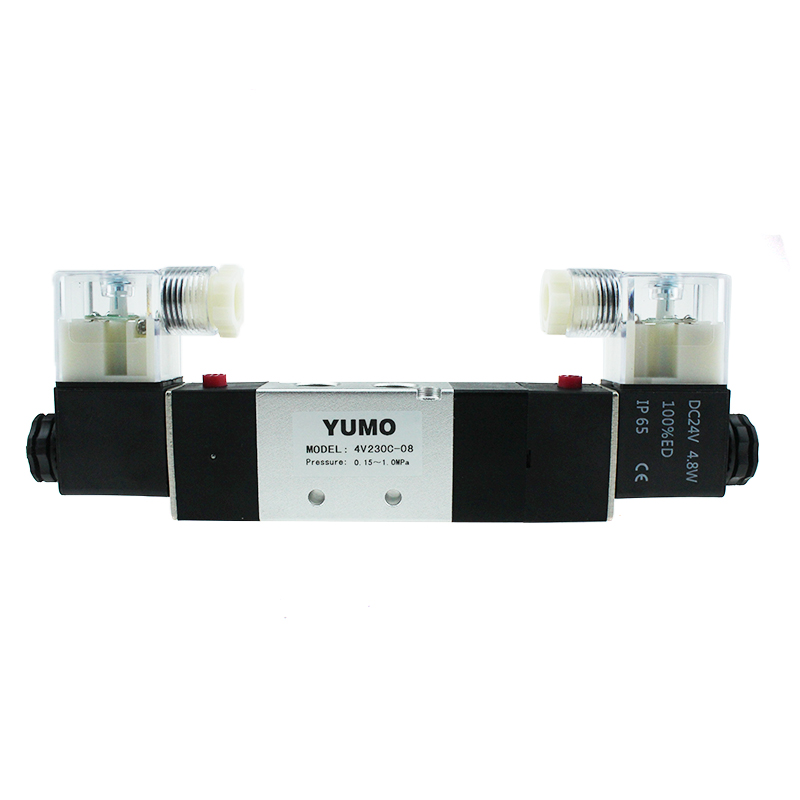

Double directional control 3 position 5 port center close valve 4v230c-08

1. Features:
1). Pilot-oriented mode: Optional for internal or external.
2). Structure in sliding column mode: Good tightness and sensitive reaction.
3). Three position solenoid valves have memory function.
4). Double control solenoid valves have memory function.
5). Internal hole adopts special processing technology which has little attrition friction, low start pressure and long useful life.
6). No need to add oil for lubrication.
7). It is available to form intergrated valve group with the base to save installation space.
8). Affiliated manual devices are equipped to facilitate installation and debugging.
9). Several standard voltage grades are optional

  • 4V230C-08
  • YUMO
  • 1

YUMO 24VDC Pneumatic Double Solenoid Valve 4V220-08

1

Specification:

Model 4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid Air(to be filtered by 40um filter element)
Acting Internal piloted or external piloted
Port size In=Outlet=1/8'' Inlet=Outlet=1/4''  Exhaust=1/8''
Valve type 2 position 5 port 3 position 5 port 2 position 5 port 3 position 5 port
Orifice size 14.0mm²
(cv=0.78)
12.0mm²
(cv=0.67)
16.0mm²
(cv=0.89)
12.0mm²
(cv=0.67)
Lubrication Not required
Pressure range 0.15~0.8Mpa(21~114Psi)
Proof pressure 1.5Mpa(215Psi)
Temperature range -20~70℃
Body material Aluminum alloy
Max. frequency 5 cycle/sec 4 cycle/sec
Weight 4v210-06:220g
4V220-06:320g
360g 4v210-08:220g
4v220-08:320g
360g



Coil Specification:

tem 4V210   4V220   4V230
Standard voltage AC220V,AC110V,AC24V,DC12V,DC24V
Scope of voltage AC:±15%    DC:±10%
Power consumption AC:3.5VA   DC:3.0W
Protection IP65(DIN40050)
Temperature classification B Class
Electrical entry Terminal,Grommet
Activating time 0.05 sec and below

Dimension:

4V220 5-2way4V230C-08 (1)4V230C-08 (3)4V230C-08 (4)4V230C-08 (6)4V230C-08 (7)
