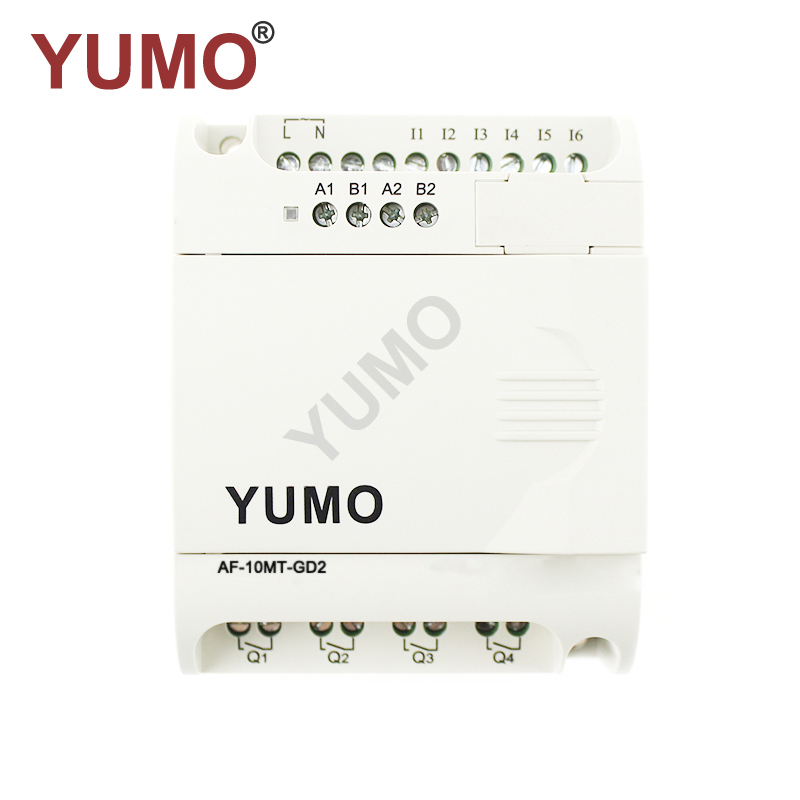

AF-10MT-GD2 Programmable Logic Controller plc controller PLC

DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
  • AF-10MT-GD2

  • YUMO

Availability:

AF-10MT-GD2

DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)

Performance&Features
This model is a DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
Exquisite and compact design
Multi-functional, easy operating, convenient, easy learning
Technical Index
Operation temperature: :-20℃-70℃ Timers :127
Storage/Transportation -40℃-70℃ Counters :127
Protection:IP20 Function blocks : 127
Interference Regulation: EN55011(B Class) RTC time intervals:127
RTC accuracy: MAX ±5S/day Storage capacity:64K
Certificate:CE Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation Dimensions:90*126*58(Unit:mm )


Power supply
 Rated voltage:DC12/24V Main voltage operation range: AC10-28V
DC24V consumption: Typical 200mA (Output full-load):Typical 5W


Digital input
Signal 0:DC 0-5V Input current:<0.4mA
Signal 1:DC 10-24V Input current:<1mA


Analogue input
Signal 1:0-10V Input current:<0.3mA


Outputs(Digital output)
Output type: Relay output Wiring insulation: Yes
Points per set:1 Continuous current max value:MAX 10A


Switch frequency
Mechanism: 10Hz Resistor load: 2Hz
Inductive load: 0.5Hz


FAB Intelligent Controller Series is a new programmable controller launched by YUMO, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of YUMO FAB series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. YUMO FAB is very compact and light-weighted, especially suitable for internal installation usage.

In addition, FAB intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the YUMO FAB is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere
Powerful Network Function
Short distance network wiring (Within 1.2KM)

plc controller
AF-20MR-D
Programmable Logic Controller

Item Code Description
1 AF-10MR-A(with LCD) 85V-240VAC, 6 points AC input 4 points relay output
2 AF-10MR-A(without LCD) 85V-240VAC, 6 points AC input 4 points relay output
3 AF-10MR-D(with LCD) DC12/24V, 6points DC input 4 points (with analog input) relay output
4 AF-10MR-D(without LCD) DC12/24V, 6points DC input 4 points (with analog input) relay output
5 AF-10MR-E(with LCD) DC12/24V, 6 points DC input 4 points relay output
6 AF-10MR-E(without LCD) DC12/24V, 6 points DC input 4 points relay output
7 AF-10MT-D(with LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
8 AF-10MT-D(without LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
9 AF-10MT-GD(with LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
10 AF-10MT-GD(without LCD) DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
11 AF-10MT-E(with LCD) DC12/24V,6 points DC input 4 points electronic transistor output
12 AF-10MT-E(without LCD) DC12/24V,6 points DC input 4 points electronic transistor output
13 AF-20MR-A(with LCD) 85V-240VAC ,12 points AC input 8 points relay output
14 AF-20MR-A(without LCD) 85V-240VAC ,12 points AC input 8 points relay output
15 AF-20MR-D(with LCD) DC12/24V,12 points DC input 8 points (with analog input) relay output
16 AF-20MR-D(without LCD) DC12/24V,12 points DC input 8 points (with analog input) relay output
17 AF-20MR-E(with LCD) DC12/24V ,12 points DC input 8 points relay output (without analog input)
18 AF-20MR-E(without LCD) DC12/24V ,12 points DC input 8 points relay output (without analog input)
19 AF-20MT-E(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
20 AF-20MT-E(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
21 AF-20MT-D(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
22 AF-20MT-D(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
23 AF-20MT-GD(with LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
24 AF-20MT-GD(without LCD) DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
25 AF-C232    Cable for FAB and PC Modem for programming
26 AF-C485     Interface between 485bus and FAB for network monitor
27 AF-CMP   The cable connect to the telephone module port  "TO PC'
28 AF-COPY  Copy module
29 AF-D232  the cable connecting FAB and PC (frontispiece plug type)
30 AF-MUL-D Voice module to realize voice function(DC POWER)
31 AF-DUSB   the interface between FAB and PC USB port (frontispiece plug type)
32 AF-LCD  Removable LCD clip in screen for easy programming
33 AF-M232     Interface between FAB and MODEM for remote control and programming
34 AF-MUL Voice module to realize voice function(AC POWER)
35 AF-P485    Interface between 485bus and PC for network function
36 AF-S485 Interface is the connector between RS232 and RS485 (DIN installation).
37 AF(SR)-USB     USB/RS232 convertor (DIN installation)
38 SP-05AL Input: 110/220VAC Output: Voltage :5VDC   Current :14A Din rail type
39 SP-05AS Input: 110/220VAC Output: Voltage :5VDC   Current :7A Din rail type
40 SP-12AL Input: 110/220VAC Output: Voltage :12VDC   Current :6A Din rail type
41 SP-12AS Input: 110/220VAC Output: Voltage :12VDC   Current :3A Din rail type
42 SP-24AL Input: 110/220VAC Output: Voltage :24VDC  Current :3A Din rail type
43 SP-24AS Input: 110/220VAC Output: Voltage :24VDC   Current :1.5A Din rail type
44 SR-12MRAC 100-240VAC 8 Points AC input, 4 points relay output
45 SR-12MRDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points relay output
46 SR-12MTDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(NPN)
47 SR-12MGDC DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(PNP)
48 SR-20ERA 100-240VAC 12  AC input, 8 points relay output, 20 points extended module
49 SR-20ERD DC12/24V 12 points DC input , 8 points relay output, 20 points extended module
50 SR-20ETD DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (NPN)
51 SR-20EGD DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (PNP)
52 SR-22MRAC 100-240VAC 14 Points AC input, 8points relay output
53 SR-22MRDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points relay output
54 SR-22MTDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(NPN)
55 SR-22MGDC DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(PNP)
56 SR-AUD The recording microphone and the wires between the sound card and the SR-VPA/SR-VPD
57 SR-CP Programmable cable can edit,analog, monitor from PC to Super Relay
58 SR-EANT Long connecting antenna of SR-RCA and SR-RCD
59 SR-ECBA AC type, to remotely connect the machine and the extended module
60 SR-ECBD DC type, to remotely connect the machine and the extended module
61 SR-EHC Connection set of SR-HMI, remotely connect SR machine
and SR-HMI 1.5m cable
62 SR-HMI-B monitor operator panel
63 SR-LED simple LED panel
64 SR-RCA 100-240VAC remote control receiver module
65 SR-RCD DC12/24V remote control receiver module
66 SR-TC DC3V remote control emitter
67 SR-USB USB/RS232 convertor (DIN installation)
68 SR-DUSB   the interface between SR and PC USB port (frontispiece plug type)
69 SR-VPA 100-240VAC phone voice module
70 SR-VPD DC12/24V  phone voice module
71 SR-WRT Programming panel
72 SR-TP for connecting SR PLC with text panel SH-300
73 SR-MC MODBUS module
74 SR-MCA MODBUS module
75 SR-MCD MODBUS module
76 SH-300 4.3"STN - LCD Display screen DC12/24VA
77 AR1520  convert RS-232 signals into isolated RS-422 or RS-485
78 AR1520U    Convert USB to RS-232/422/485 terminal
79 AR1521    convert RS-232 signals into isolated RS-422 or RS-485
80 AR1521U     Convert USB to RS-232/422/485 terminal
81 C2400                 Timer,counter,frequency meter,tachometer
82 software PLC software CD
