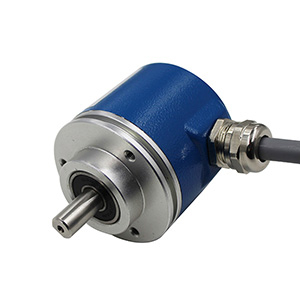

It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output
External direction line setting presets, easy installation, no change is required.
External direction line setting presets, easy installation, no change is required.
Parameters:
Operating Voltage | 10-30Vdc or 5Vdc polarity protection |
Current consumption | <110mA (24V power supply) <190mA (12V power supply) |
The output signal | Synchronous serial SSI signal (Gray code output) |
Output load capacity | ≤ 400 Ohm, Ohm standard operating 200-250 |
Linear resolution of | 1/4096 |
Working temperature | -25-70 ℃ temperature range of programming: 0 ℃ ~ + 70 ℃ |
Storage temperature | -40-100 ℃ |
Degree of protection | IP65 |
Permissible speed | 2400 rev / min |
Output refresh cycle | <1.4ms |
Connecting cable | 1 m 8-core shielded cable, or 8-pin socket Shape features Clamping flange or servo flange, metal, sealed double bearing structure (see dimension drawings) |
Shaft | Clamping flange shaft diameter 10mm, length 20mm, with D-flat, stainless steel, servo flange shaft diameter 6mm, length 10mm |
